Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Grasp and gently pull down on the sliding side door upper track garnish in order to disengage the retaining clips.
  2. Remove the sliding side door upper track garnish from the vehicle.
  3. Inspect the sliding side door upper track garnish for broken or missing retaining clips. Replace the retaining clips as needed.

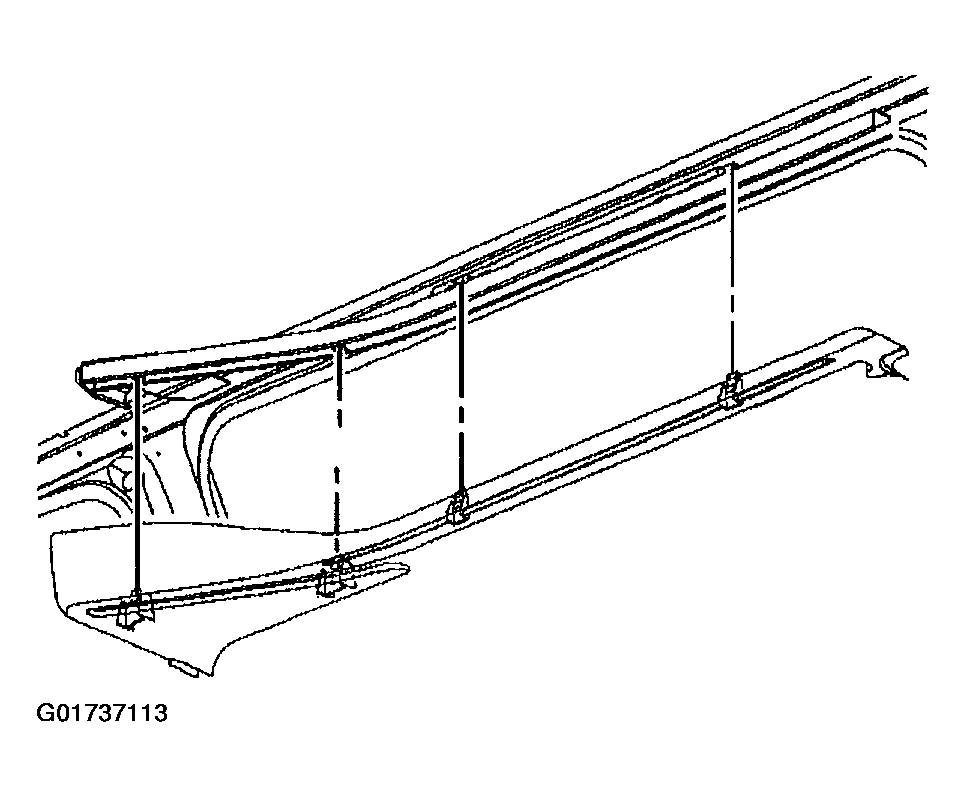

Fig 1: Removing Rear Side Door Upper Track Garnish
G01737113Courtesy of GENERAL MOTORS CORP.
