Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the inside door handle bezel. Refer to Handle Bezel Replacement - Inside .
  2. Remove the screws that retain the side front door trim plate to the side front door.
  3. Remove the side front door trim plate from the vehicle.

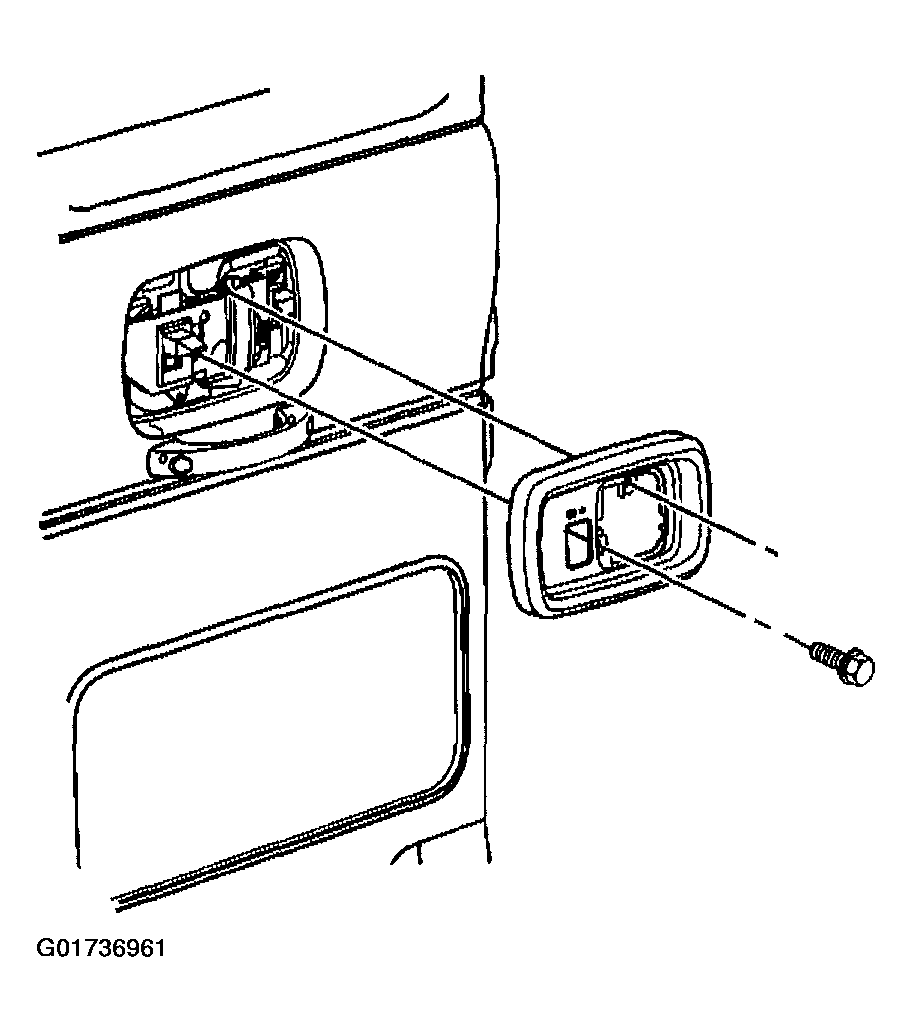

Fig 1: Removing Door Trim Plate (Side/Rear Door)
G01736961Courtesy of GENERAL MOTORS CORP.
