Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the inside door handle bezel. Refer to Handle Bezel Replacement - Inside .
  2. Remove the screws (4) that retain the front door trim plate (3) to the door panel.
  3. Pull the bottom of the front door trim plate (3) out in order to remove the retainers on the front door trim plate from the front door trim panel (5).
  4. Remove the front door trim plate from the slots in the front door trim panel.
  5. Disconnect the electrical connectors (1, 2) from the switches on the front door trim plate.
  6. Remove the front door trim plate (3) from the vehicle.

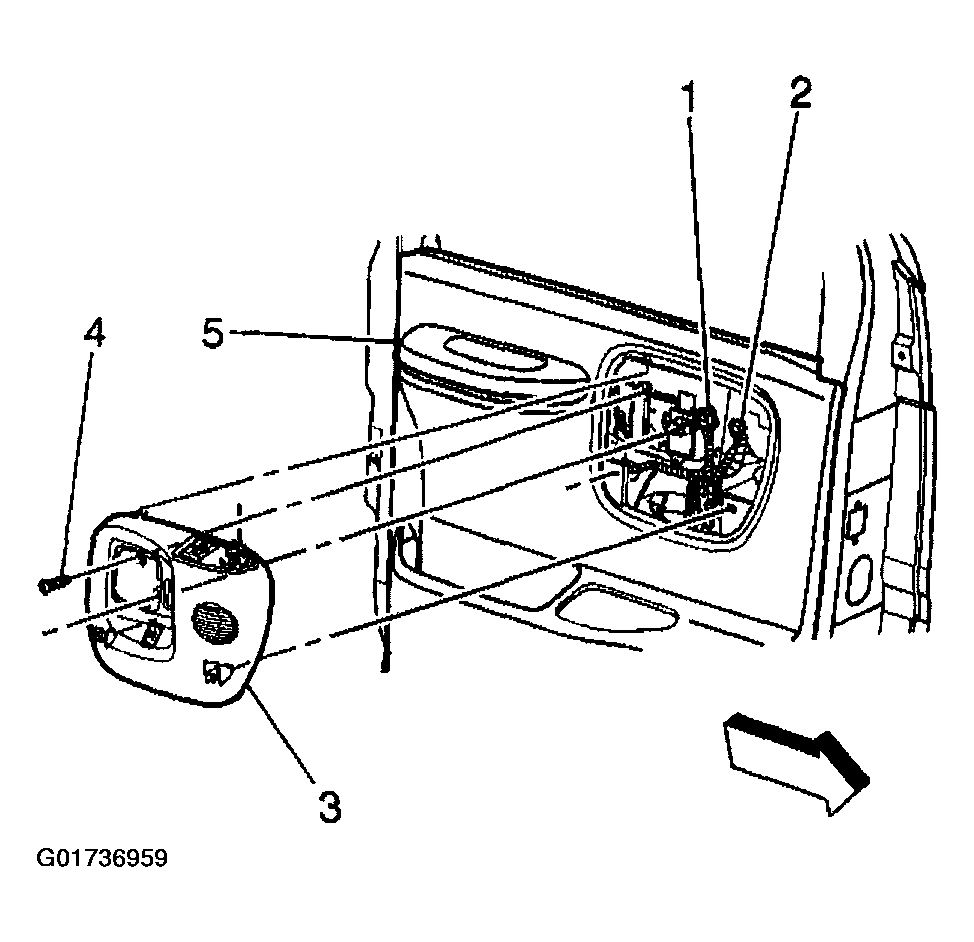

Fig 1: Removing Door Trim Plate (Power Windows)
G01736959Courtesy of GENERAL MOTORS CORP.
