Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the window regulator handle using the J 9886-01.

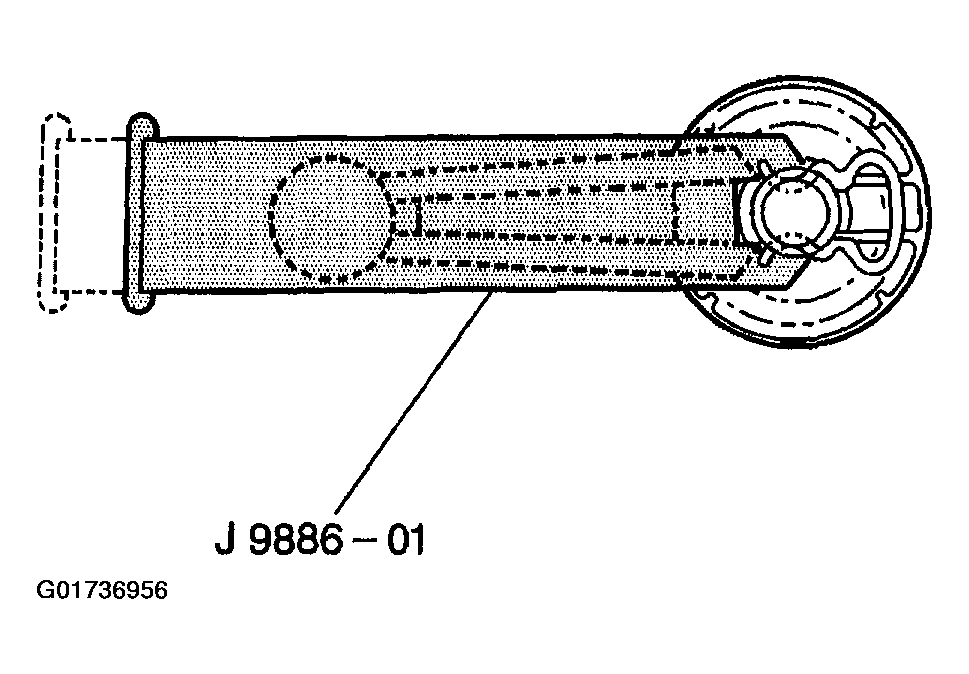

    Fig 1: Removing Window Regulator Handle
    G01736956Courtesy of GENERAL MOTORS CORP.
  2. Remove the window regulator handle bezel (4).
  3. Remove the screws that retain the front door trim plate to the door panel.
  4. Pull the bottom of the front door trim plate out in order to remove the retainers on the front door trim plate from the front door trim panel (1).
  5. Remove the front door trim plate from the slots in the front door trim panel.
  6. Remove the front door trim plate from the vehicle.

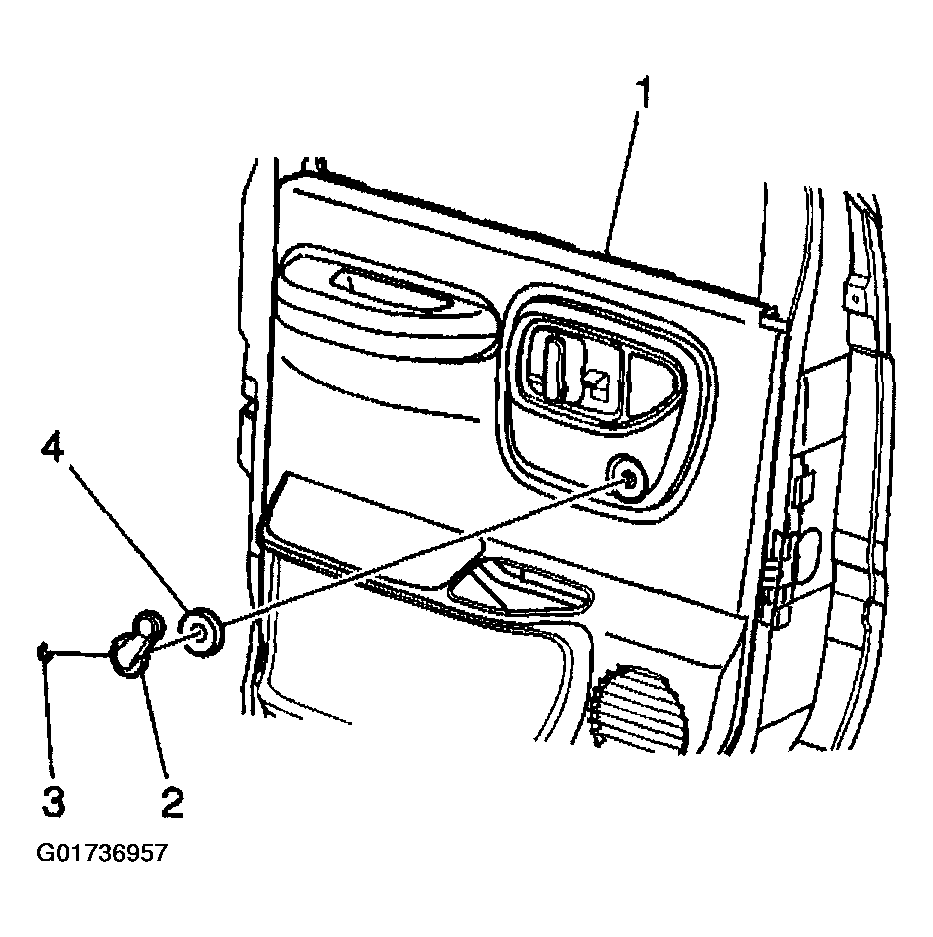

Fig 2: Removing Window Regulator Handle Bezel & Door Trim Panel
G01736957Courtesy of GENERAL MOTORS CORP.
