Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the right side rear door trim panel. Refer to Trim Panel Replacement - Side Rear Door .
  2. Remove the push pin rivet (4) at the rear edge of the rear door inside handle.
  3. Slide the rear door inside handle forward.
  4. Remove the rear door inside handle from the right rear door.
  5. Remove the lock rods (3) from the rear door inside handle.
  6. Remove the rear door inside handle from the right rear door.

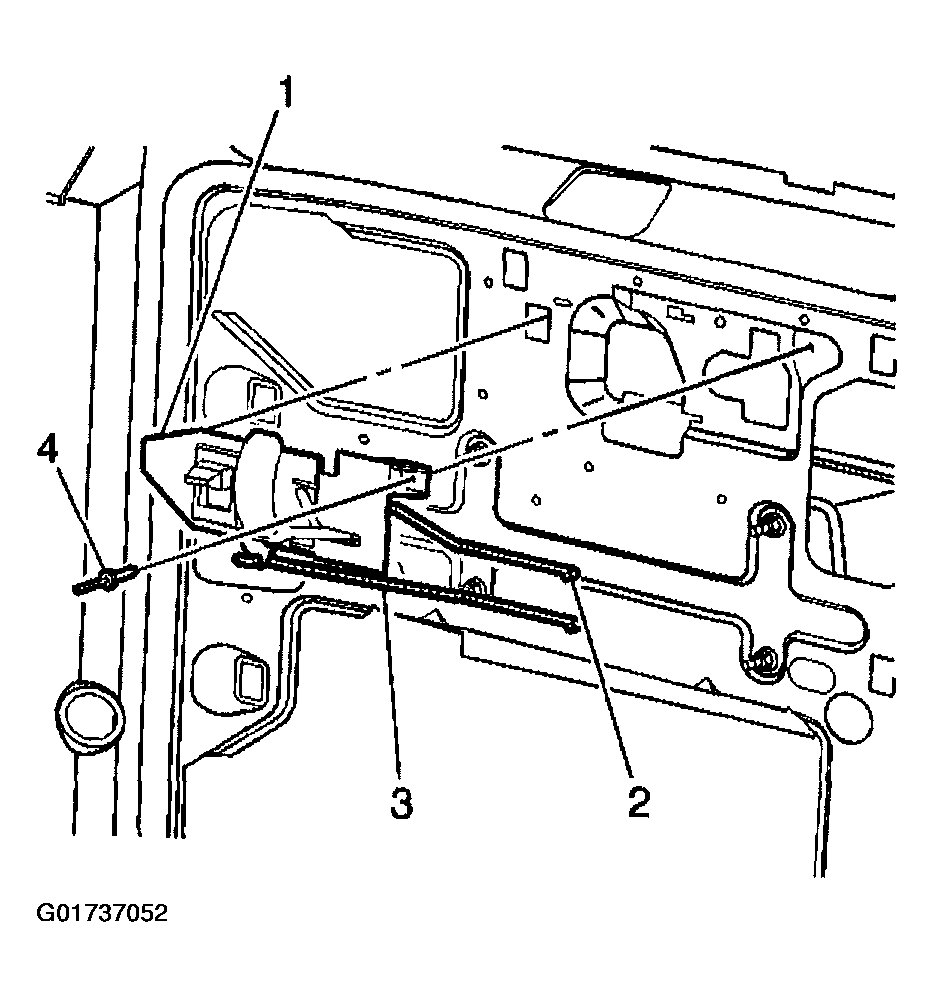

Fig 1: Removing Rear Door Inside Handle
G01737052Courtesy of GENERAL MOTORS CORP.
