Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the window completely.
  2. Remove the front door trim panel. Refer to Trim Panel Replacement - Door .
  3. Remove the water deflector. Refer to Water Deflector Replacement - Front Door .
  4. Remove the lock rods (2) from the lock (6).
  5. Remove the rear run channel from the door. Refer to Window Run Channel Replacement .
  6. Remove the nuts (8) and the bracket (7) that retain the outside door handle (1) to the door.
  7. Remove the outside door handle (1) from the door.

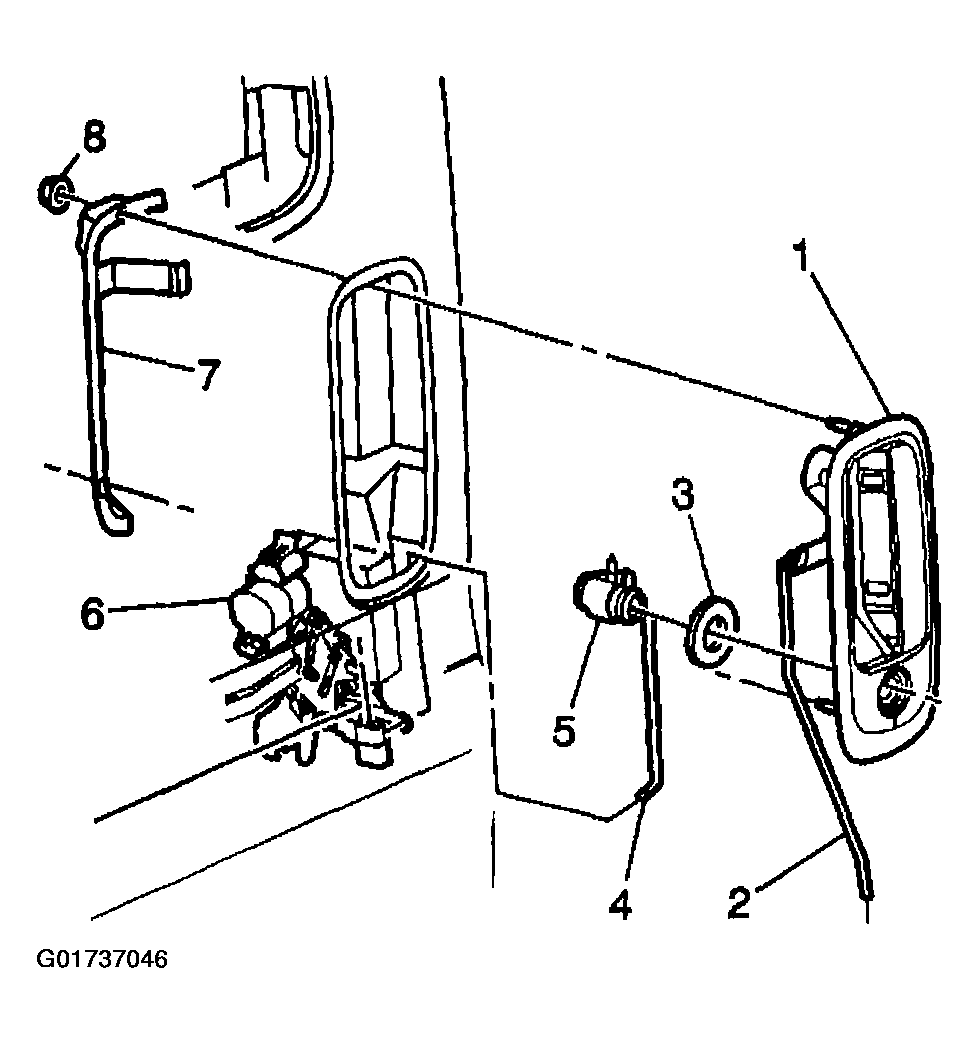

Fig 1: Removing Outside Door Handle
G01737046Courtesy of GENERAL MOTORS CORP.
