Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the sliding door lower trim panel. Refer to Trim Panel Replacement - Sliding Door Lower .
  2. Remove the sliding side door control assembly. Refer to Door Control Replacement .
  3. Remove the lock rods from the lock.
  4. Remove the nuts and the bracket that retain the outside door handle to the sliding side door.
  5. Remove the sliding side door outside handle from the door.

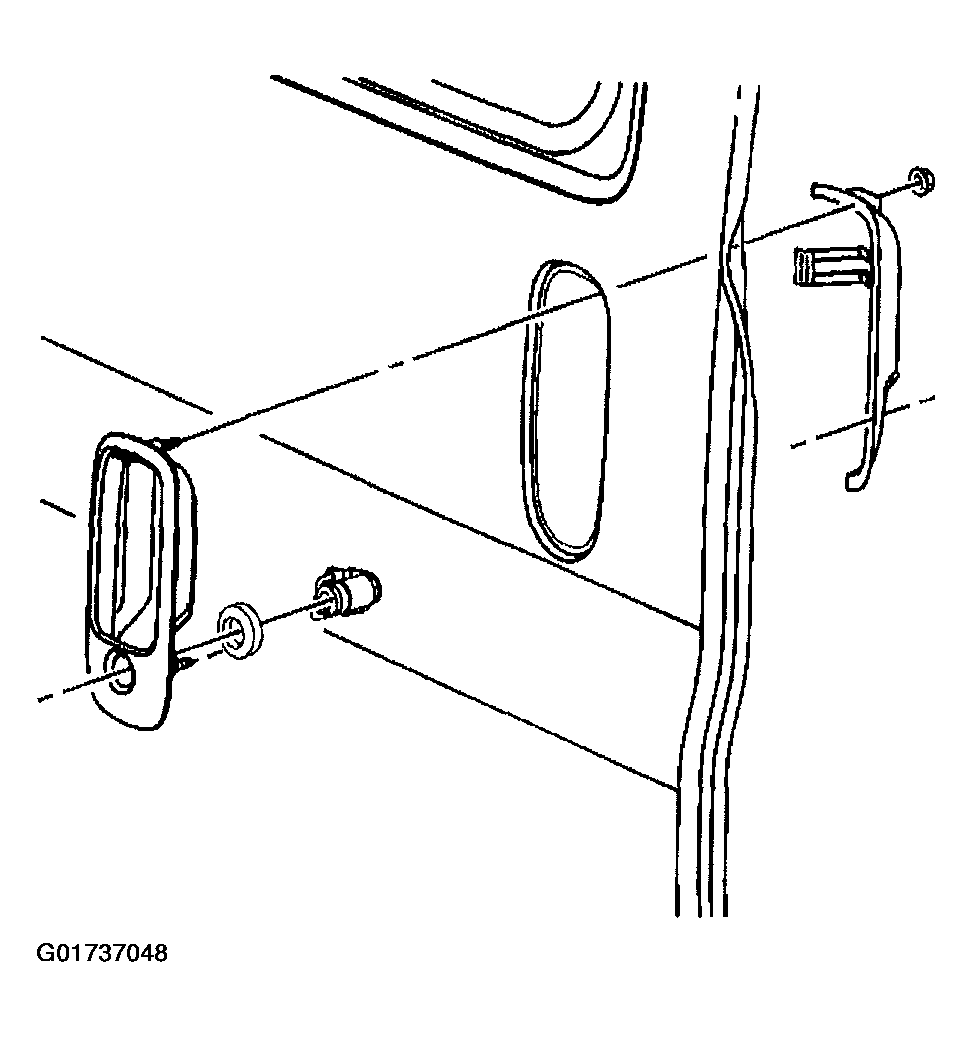

Fig 1: Removing Sliding Side Door Outside Handle
G01737048Courtesy of GENERAL MOTORS CORP.
