Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front door trim panel. Refer to Trim Panel Replacement - Door .
  2. Remove the front door water deflector. Refer to Water Deflector Replacement - Front Door .
  3. Remove the push pin rivet (6) at the rear edge of the inside handle (5).
  4. Slide the inside handle (5) forward.
  5. Remove the inside handle (5) form the door module.
  6. Remove the lock rods (4) from the inside handle (5).

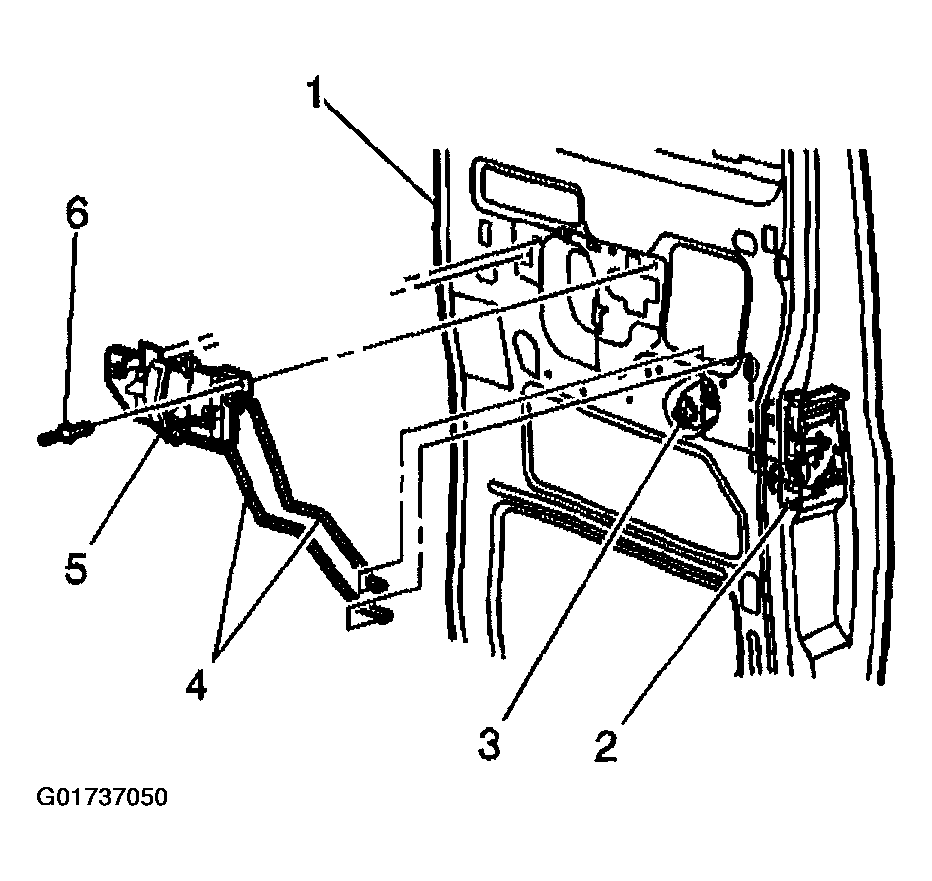

Fig 1: Removing Inside Handle
G01737050Courtesy of GENERAL MOTORS CORP.
