Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Use 3M Release Agent or the equivalent in order to remove the side front door check strap seal form the door.
  2. Clean the side front door of all of the old adhesive.

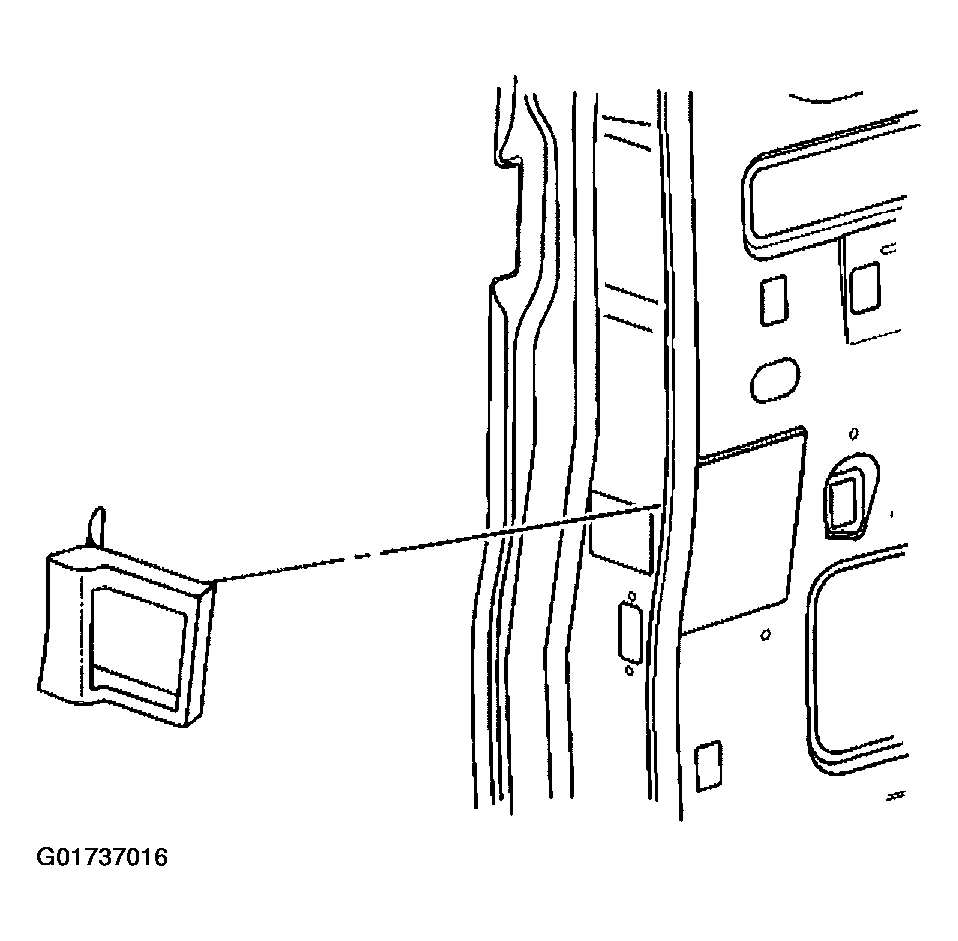

Fig 1: Removing Side Front Door Check Strap Seal
G01737016Courtesy of GENERAL MOTORS CORP.
