Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the door approximately half way.
  2. Pull the side door check strap (1) toward the inside of the door.
  3. Swing the door open.
  4. Remove the bolts (2) and the nuts (2) that retain the side door check strap (1) to the door pillar.
  5. Remove the side door check strap (1) from the door.

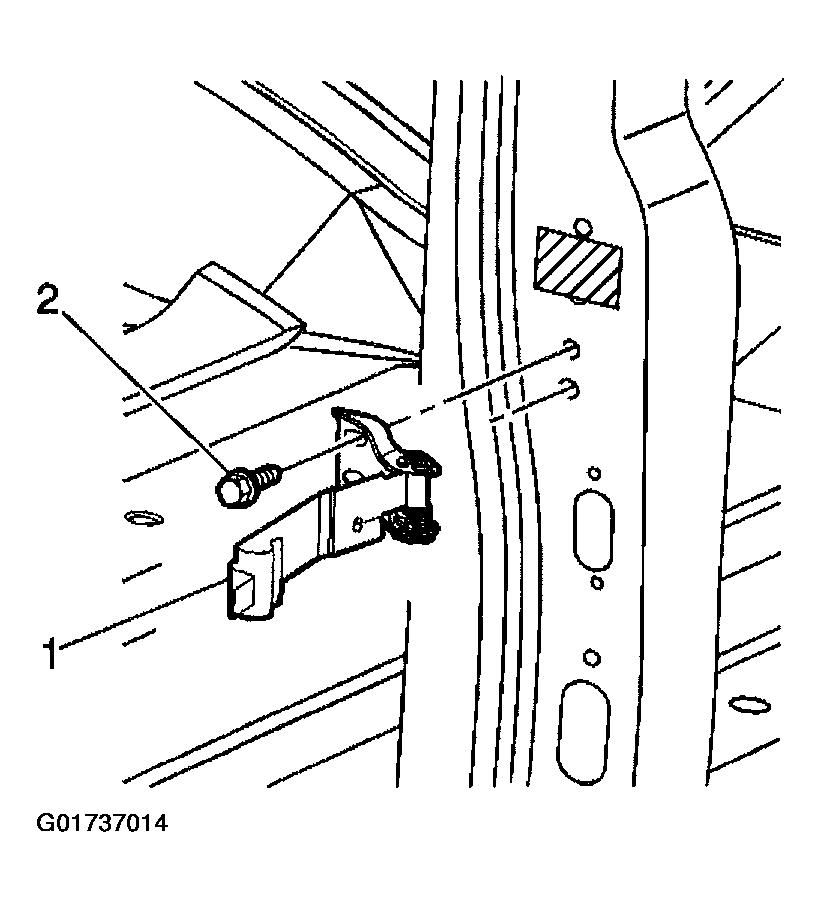

Fig 1: Removing Side Door Check Strap
G01737014Courtesy of GENERAL MOTORS CORP.
