Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front door trim panel. Refer to Trim Panel Replacement - Door .
  2. Remove the front door water deflector. Refer to Water Deflector Replacement - Front Door .
  3. Remove the bolts that retain the door link to the door jamb.

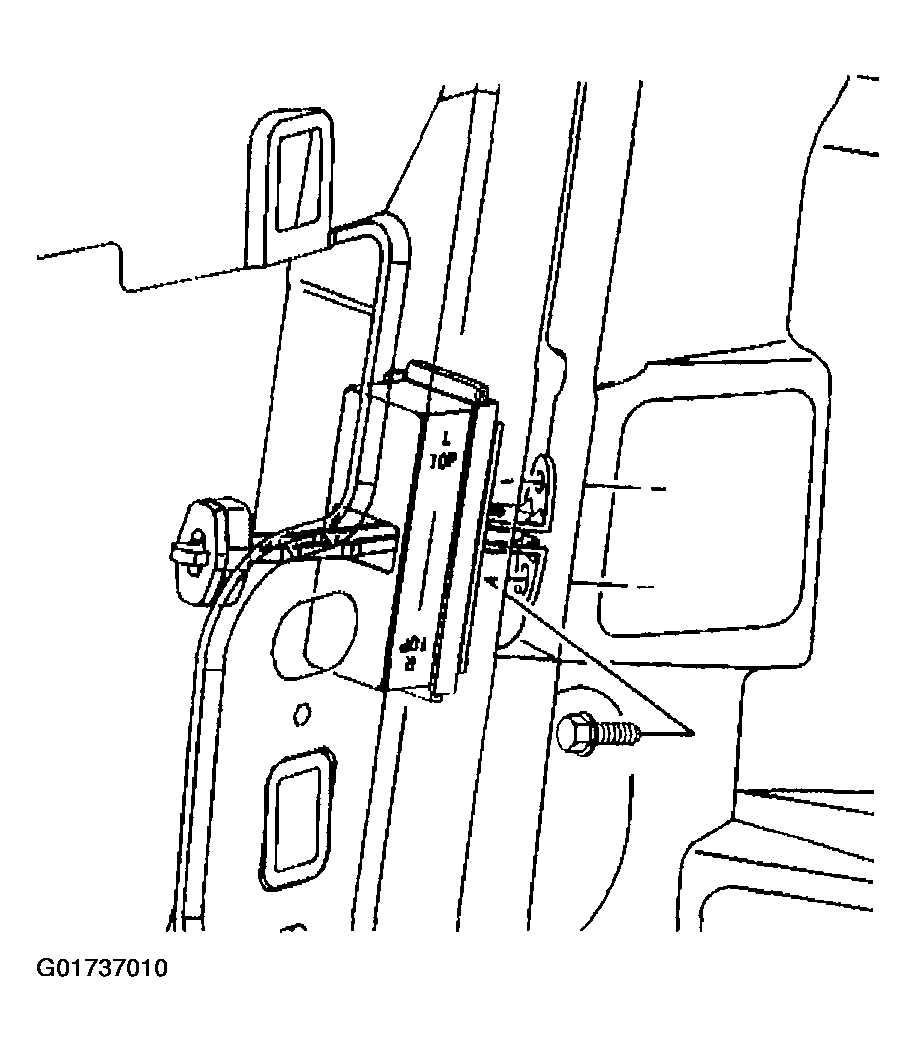

    Fig 1: Removing Bolts Retaining Door Link To Door Jamb
    G01737010Courtesy of GENERAL MOTORS CORP.
  4. Remove the nuts (2) that retain the door link (1) to the door.
  5. Remove the door link (1) from the door.

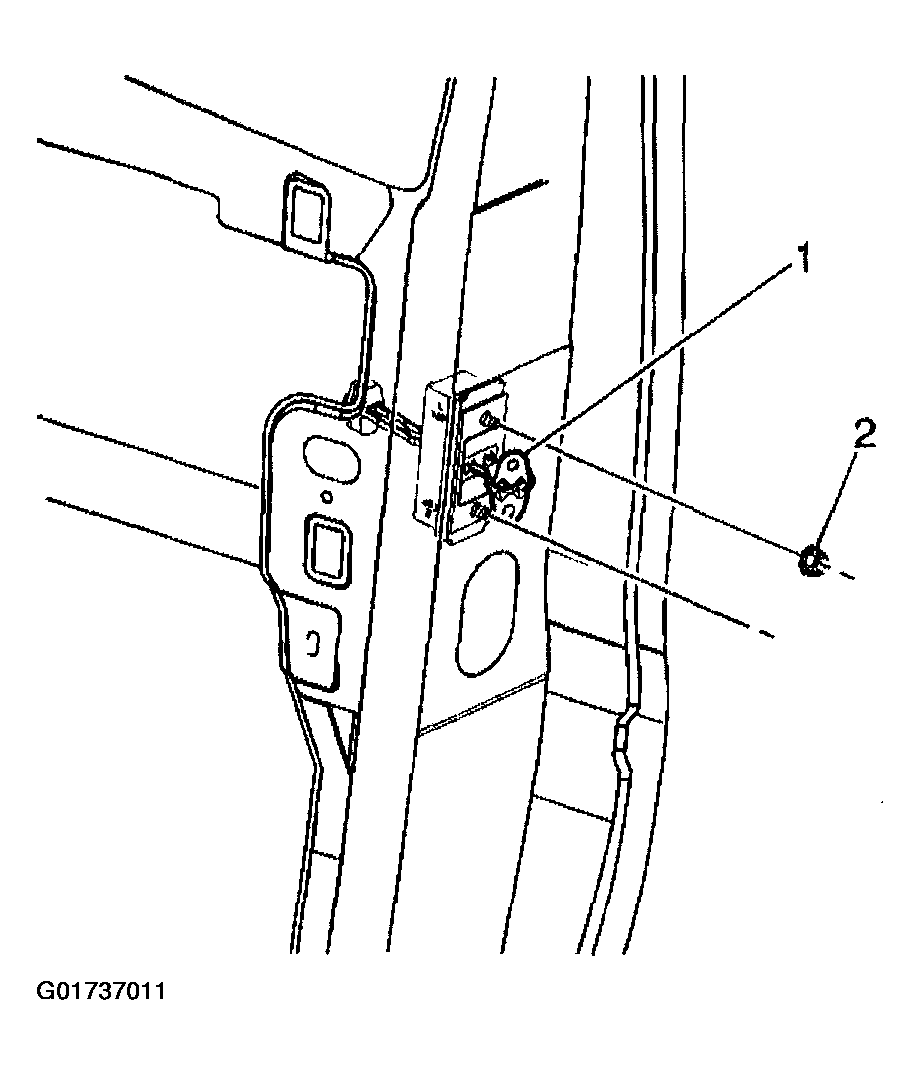

Fig 2: Removing Door Link
G01737011Courtesy of GENERAL MOTORS CORP.
