Test Description

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.

The number(s) below refer to the step number(s) on the diagnostic table.

3. The passenger power window switch on the master switch, shares common power and ground circuits with the left front window. If the passenger power window operates properly from the master switch the power and ground circuits can be presumed good.

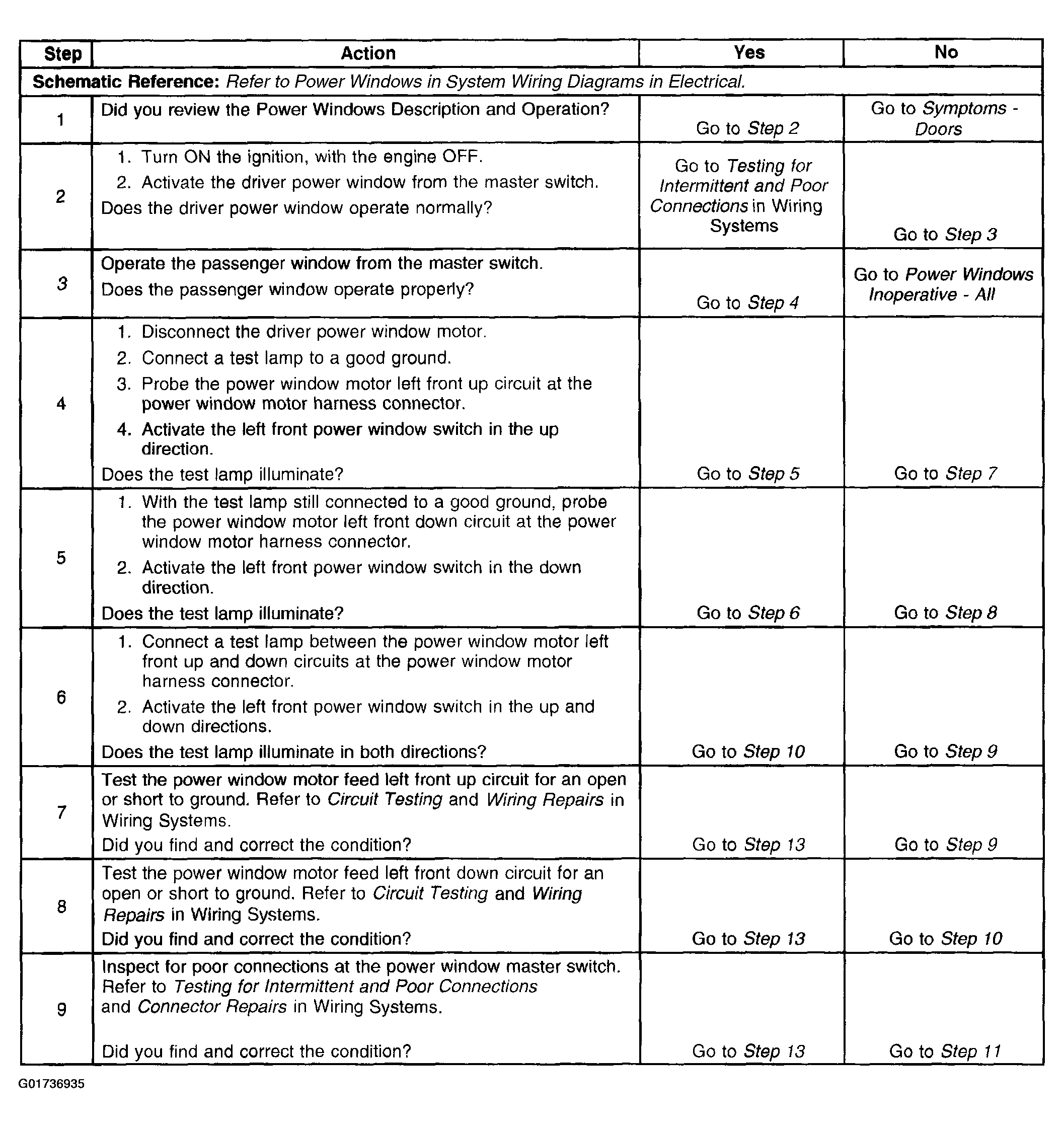

Fig 1: Identifying Power Window Inoperative - Driver Door Diagnostic Table (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

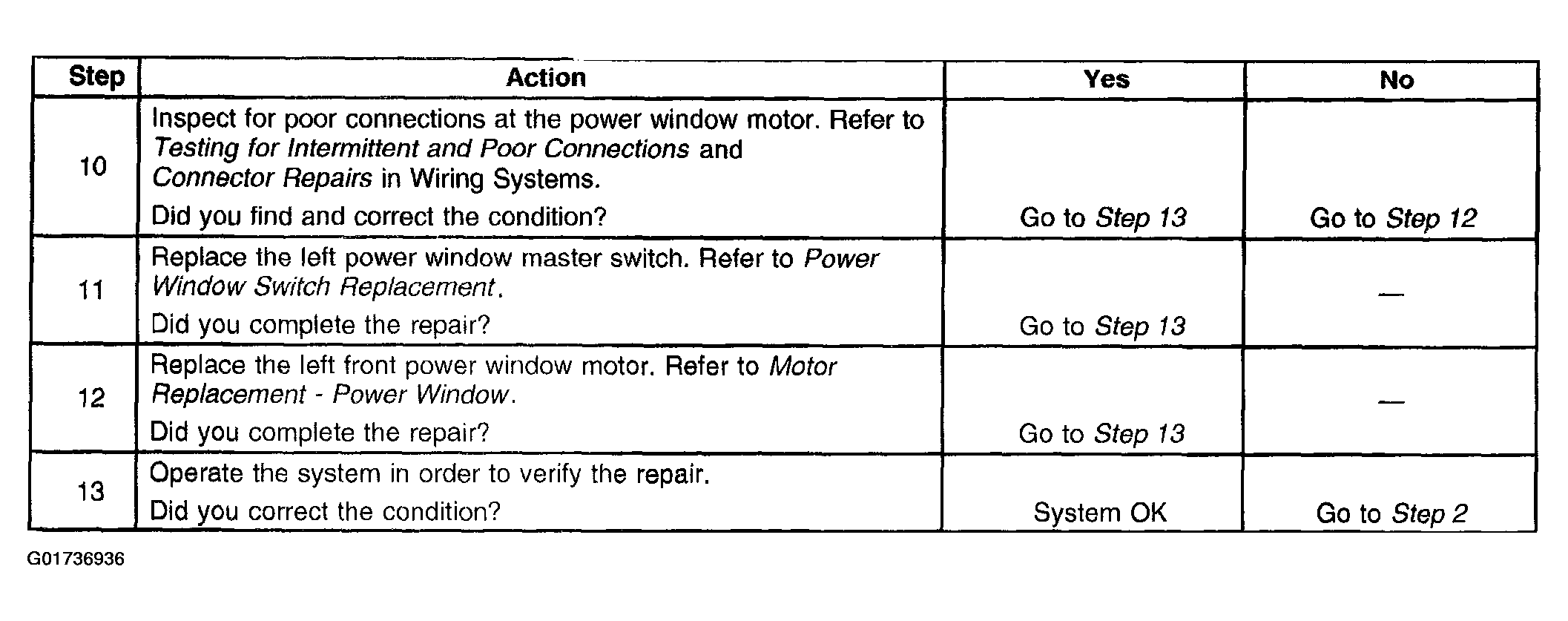

Fig 2: Identifying Power Window Inoperative - Driver Door Diagnostic Table (2 Of 2)

Courtesy of GENERAL MOTORS CORP.
