Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Refer to SIR HANDLING CAUTION in Cautions and Notices.
  1. Disable the SIR system. Refer to DISABLING SYSTEM in SIR.
  2. Move the seat to the full forward position.
  3. Remove the seat track fastener trim cover on the inboard seat track.

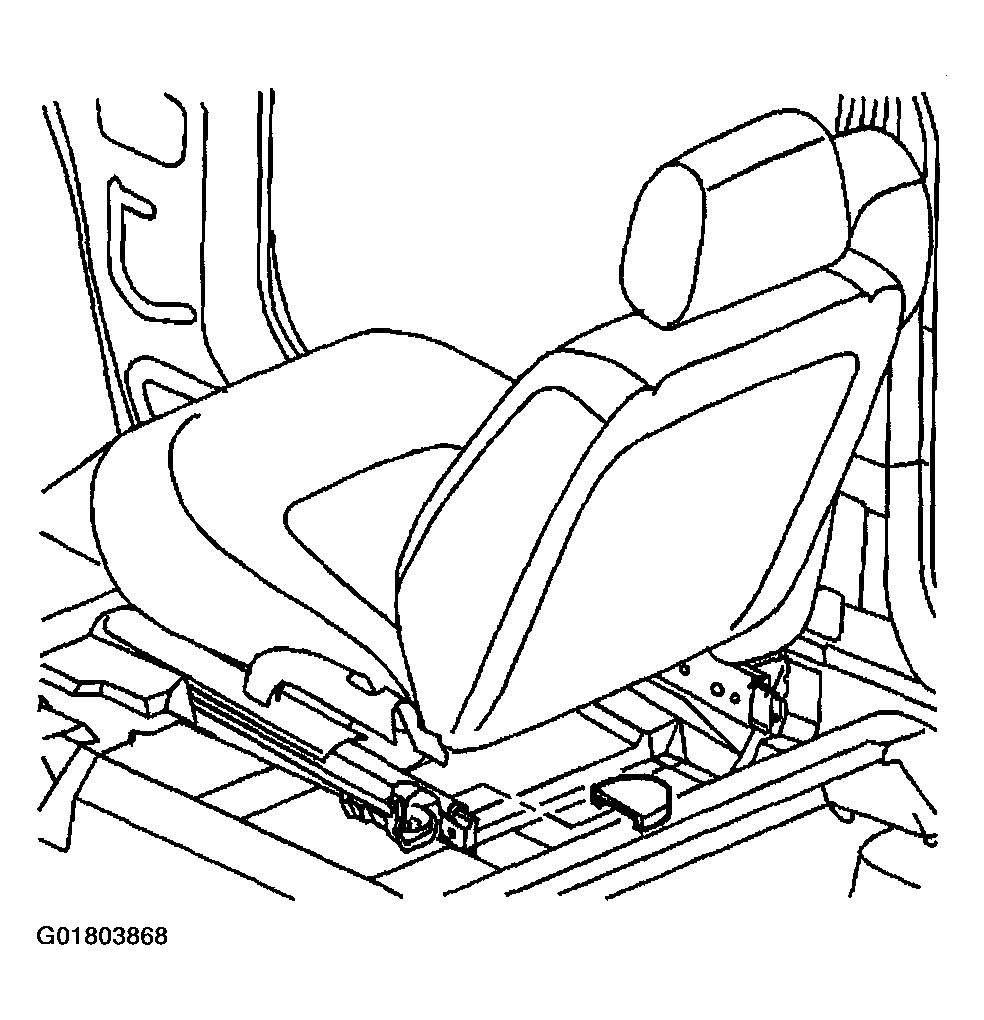

    Fig 1: Removing seat Track Fastener Trim Cover
    G01803868Courtesy of GENERAL MOTORS CORP.
  4. Remove the seat track retainer bolts securing the seat to the vehicle.
  5. Move the seat to the full rearward position.

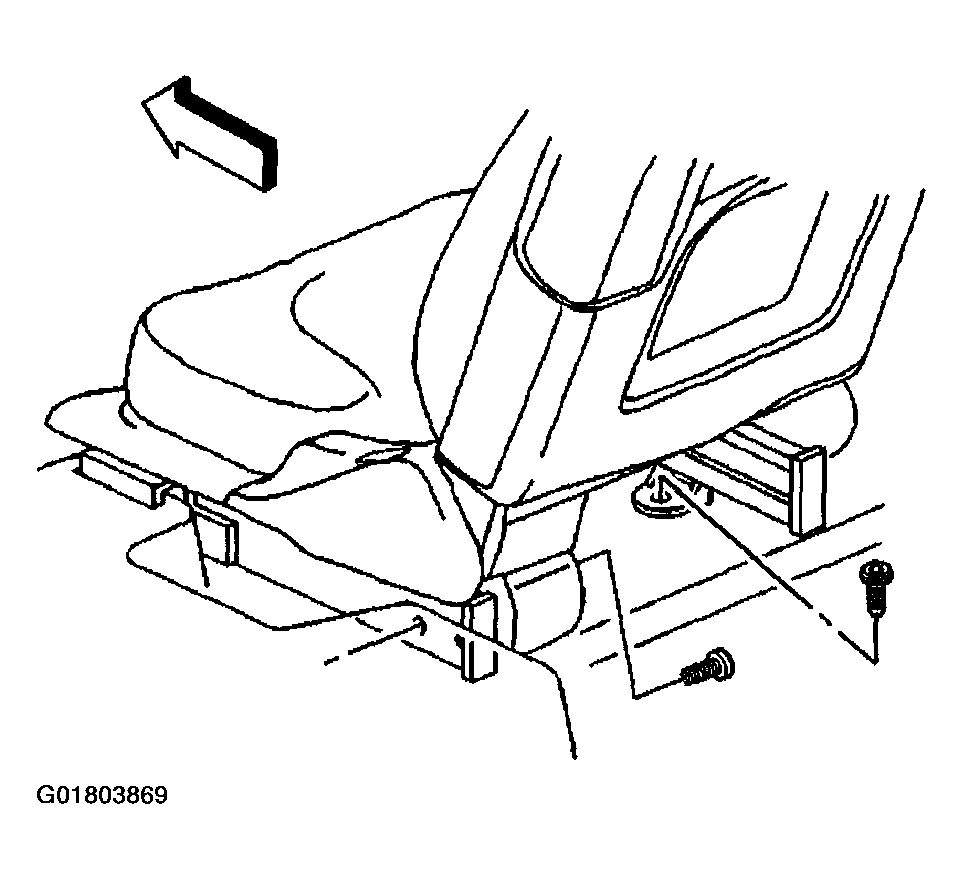

    Fig 2: Removing Seat Track Retainer Bolts
    G01803869Courtesy of GENERAL MOTORS CORP.
  6. Remove the front seat track fastener trim covers.

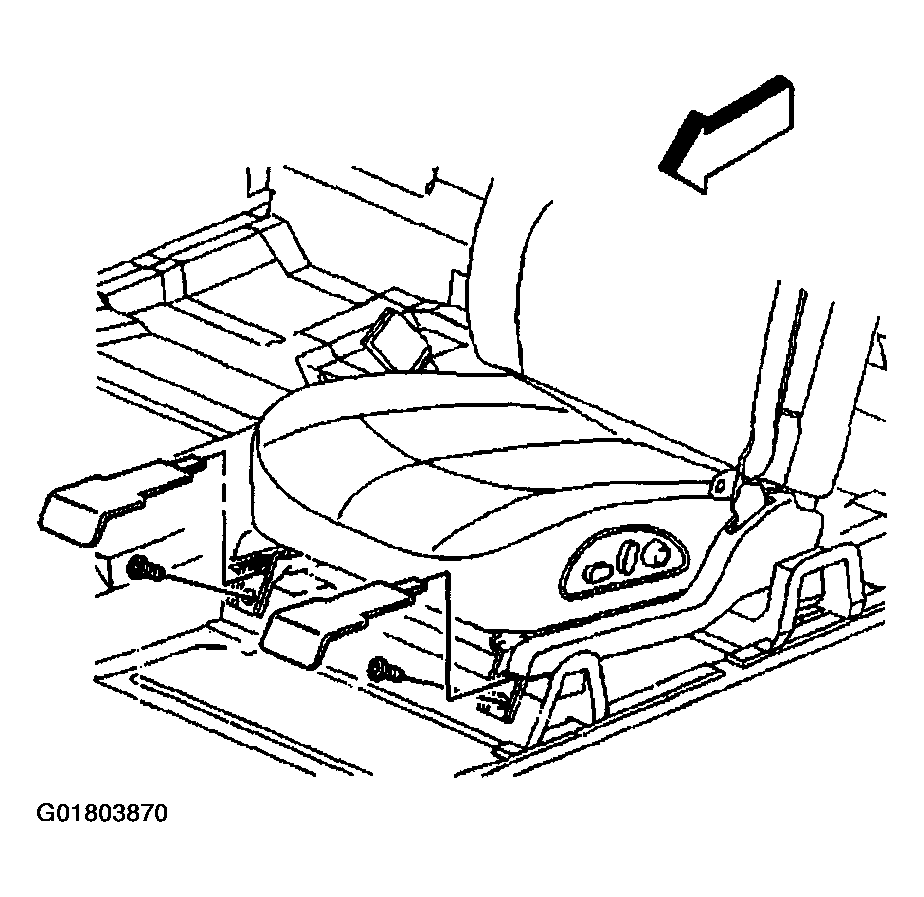

    Fig 3: Removing Front Seat Track Fastener Trim Covers
    G01803870Courtesy of GENERAL MOTORS CORP.
  7. Remove the front seat track bolts securing the seat to the vehicle.

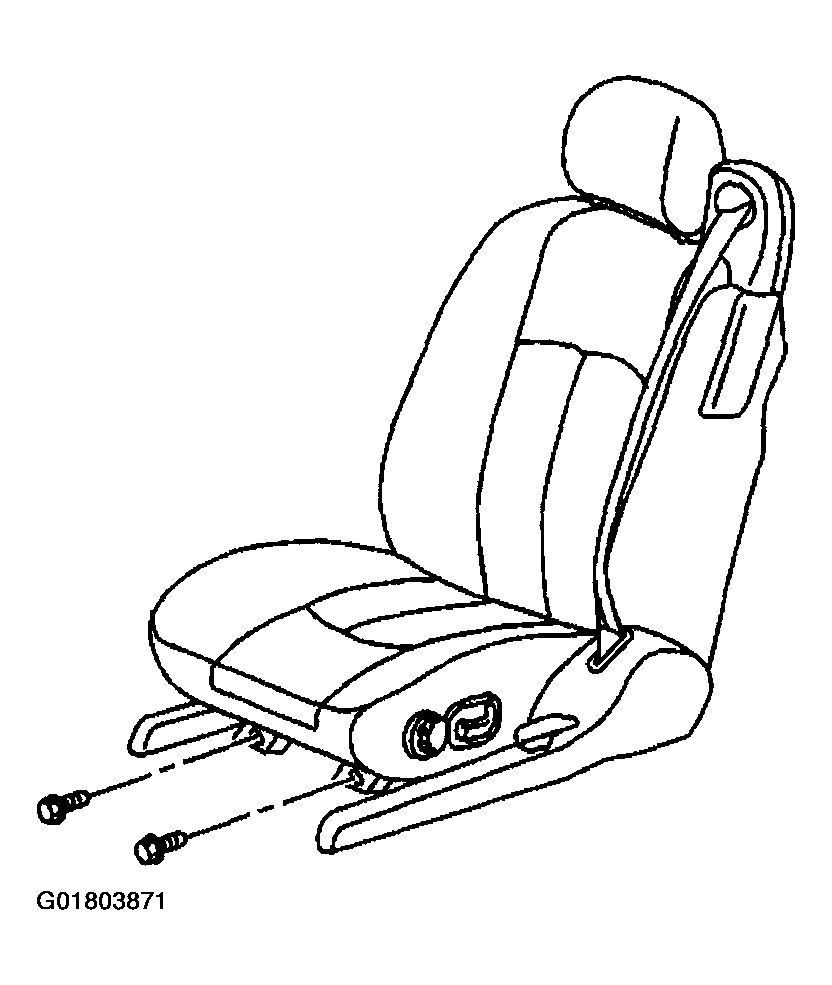

    Fig 4: Removing Front Seat Track Bolts
    G01803871Courtesy of GENERAL MOTORS CORP.
  8. With the seat slightly tilted forward, disconnect the electrical connectors.
  9. With the aid of an assistant, remove the seat from the vehicle.

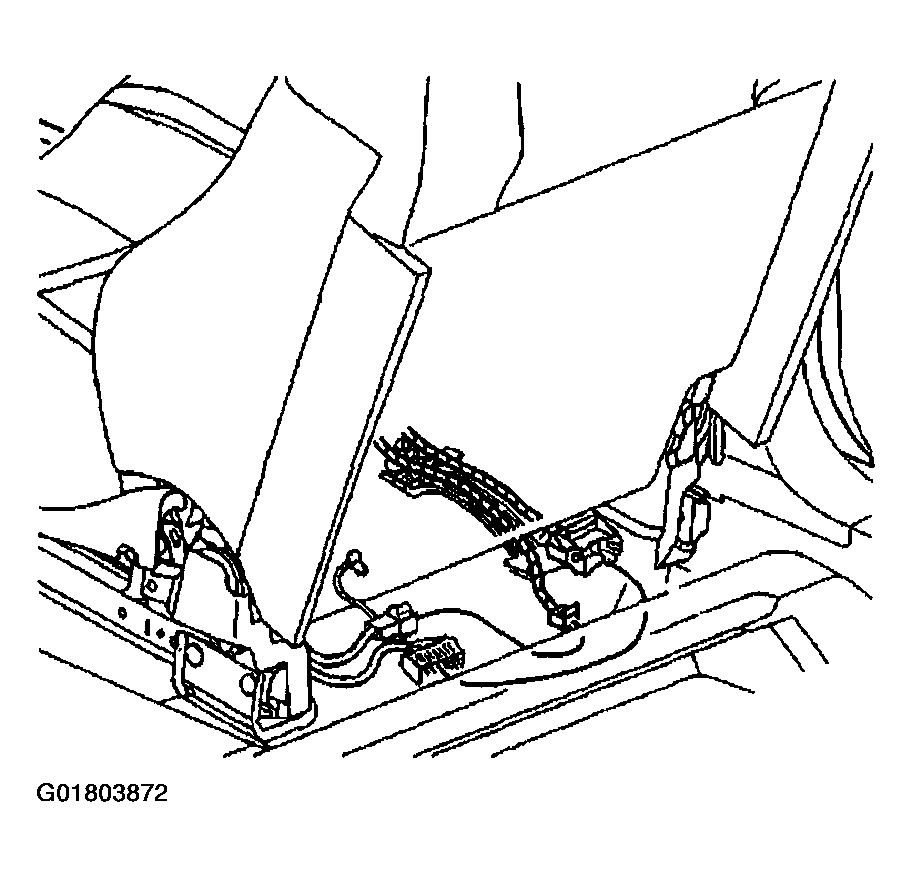

    Fig 5: Disconnecting Electrical Connectors
    G01803872Courtesy of GENERAL MOTORS CORP.
