Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

With the aid of an assistant, install the seat into the vehicle.
With the seat tilted slightly forward, connect the electrical connectors.

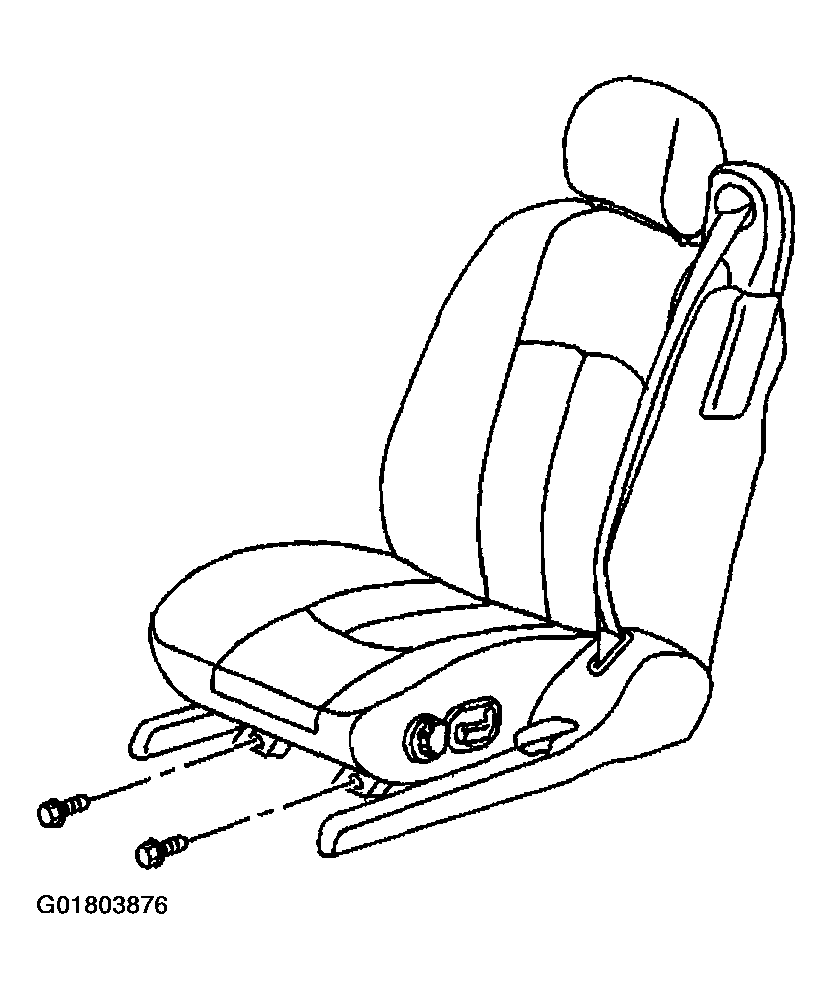

Fig 1: Installing Seat
Courtesy of GENERAL MOTORS CORP.

CAUTION: Refer to FASTENER NOTICE in Cautions and Notices.
Lower the rear of the seat and install the track retainer fasteners in order to secure the rear of the seat to the vehicle.
Tighten

Tighten the seat track retainer fasteners to 41 N.m (31 lb ft).

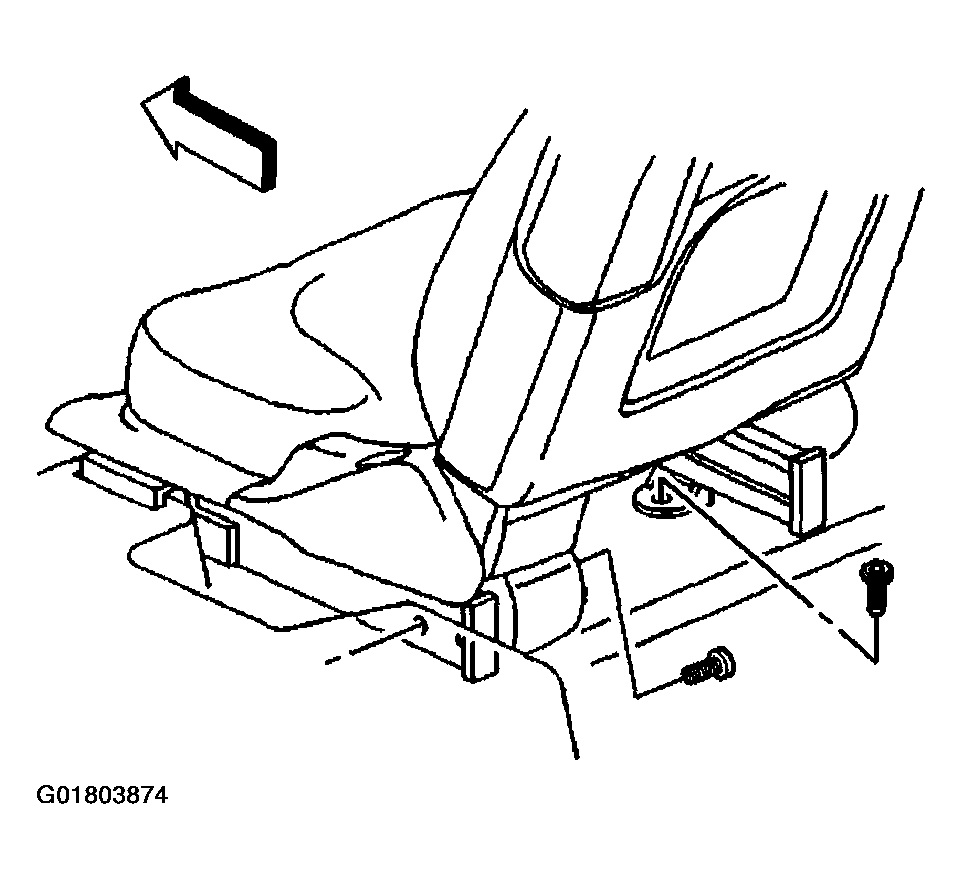

Fig 2: Installing Track Retainer Fasteners
Courtesy of GENERAL MOTORS CORP.
Install the seat fastener trim cover.

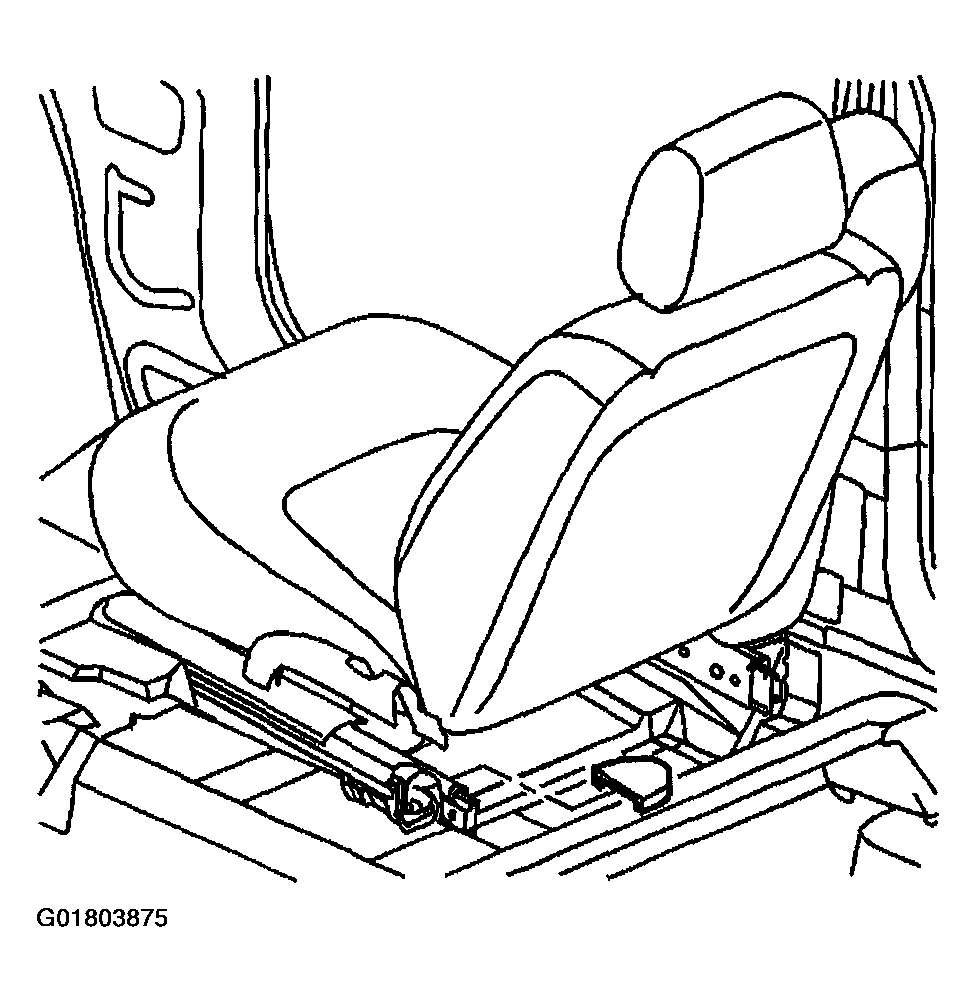

Fig 3: Installing seat Fastener Trim Cover
Courtesy of GENERAL MOTORS CORP.
Position the seat to the full rearward position.
Install the seat retainer fasteners in order to secure the front of the seat to the vehicle.
Tighten

Tighten the seat track retainer fasteners to 41 N.m (31 lb ft).

Fig 4: Installing Seat retainer Fasteners
Courtesy of GENERAL MOTORS CORP.
Install the seat track retainer fastener trim covers.
Reposition the seat.
Enable the SIR system. Refer to ACTIVATING SYSTEM in SIR.

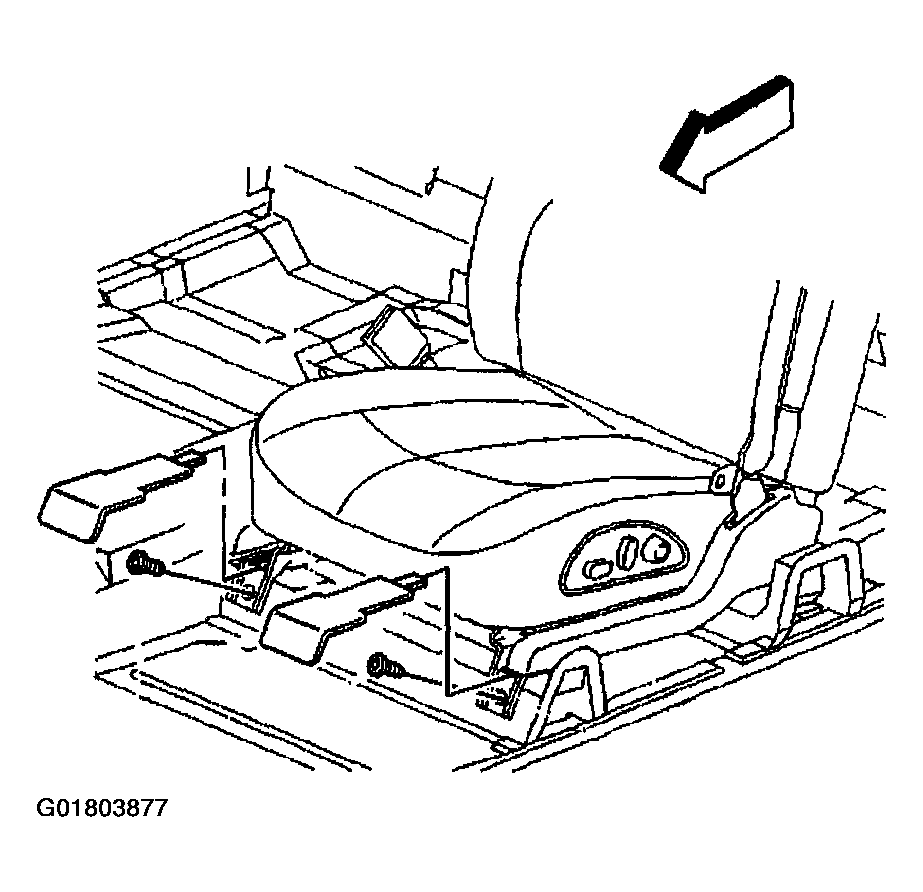

Fig 5: Installing Seat Track Retainer Fastener Trim Covers
Courtesy of GENERAL MOTORS CORP.
