Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

Important:  ALL of the heating elements in a heated seat MUST be replaced in order for the heated seat system to function properly.

  1. Remove the front seat from the vehicle. Refer to Seat Replacement - Bucket  .
  2. Remove the front seat cushion cover (1). Refer to Seat Cushion Cover And Pad Replacement - Front  .

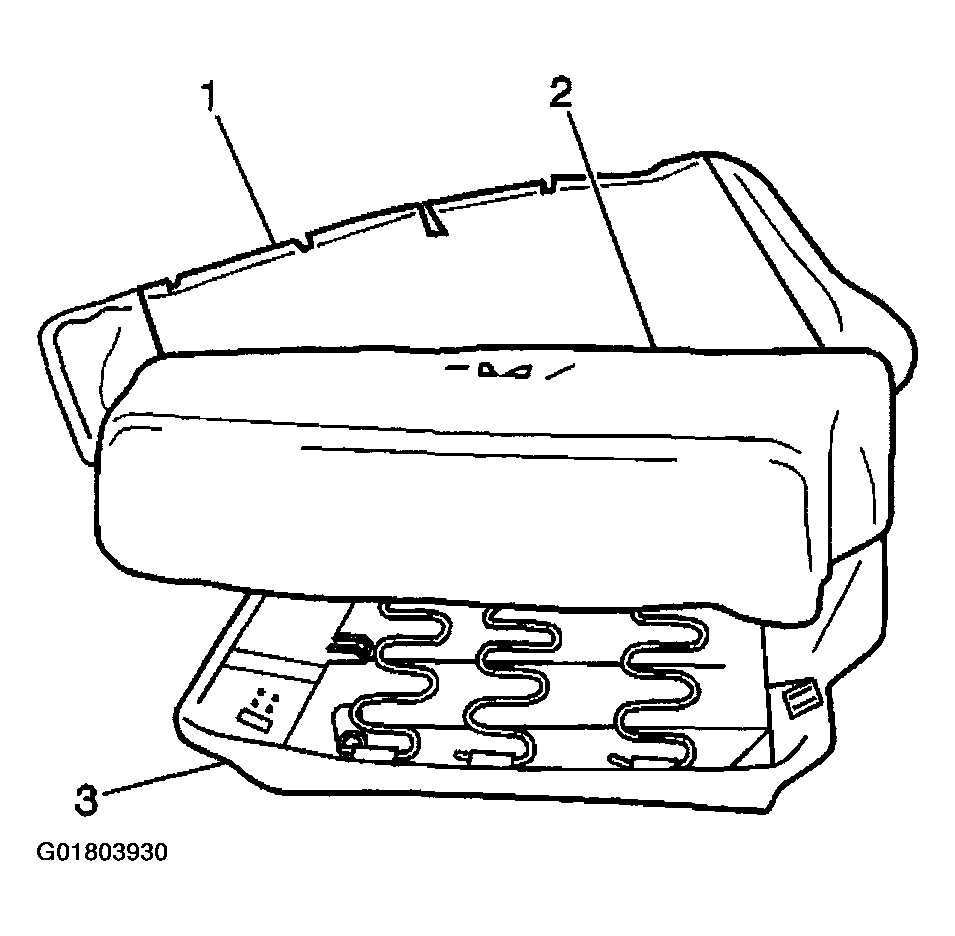

    Fig 1: Identifying Seat Cushion Cover, Pad & Frame
    G01803930Courtesy of GENERAL MOTORS CORP.
  3. Remove the front seat back cover (2). Refer to Seat Back Cover And Pad Replacement - Front  .

    Important:  Do NOT attempt to remove the factory heating element from the front seat covers.

  4. Using a pair of diagonal side cutters, cut the factory heating element wires as close to the cover as possible.

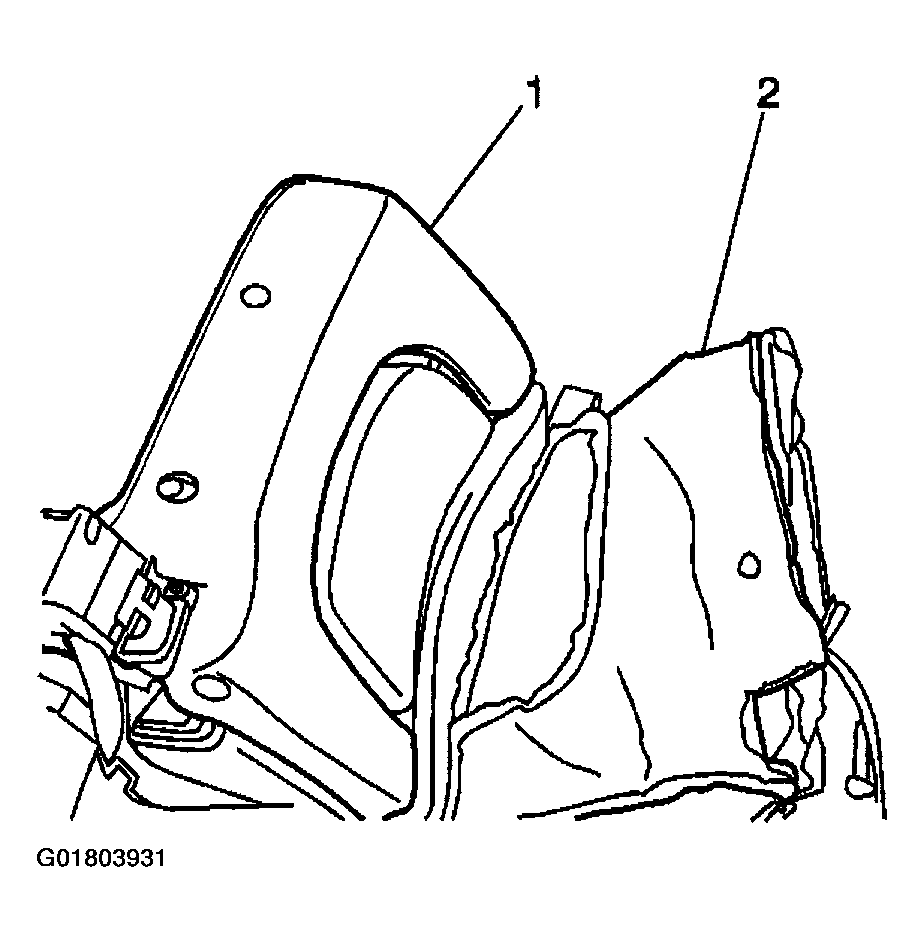

    Fig 2: Removing Front Seat Back Cover
    G01803931Courtesy of GENERAL MOTORS CORP.
