Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

Important: ALL of the heating elements in a heated seat MUST be replaced in order for the heated seat system to function properly.

Install the service heat elements as follows:
1. 1.1. Remove the paper backing.
2. 1.2. Carefully position the replacement heat elements (2,3,4,5,6) harness side down, onto the seat cushion/back foam pad as indicated.
3. 1.3. Insert the wiring harness through the hole in the foam pad.
4. 1.4. Press the service heat element onto the seat cushion/back foam pad.
5. 1.5. Ensure the heat element is not wrinkled and is laying flat.

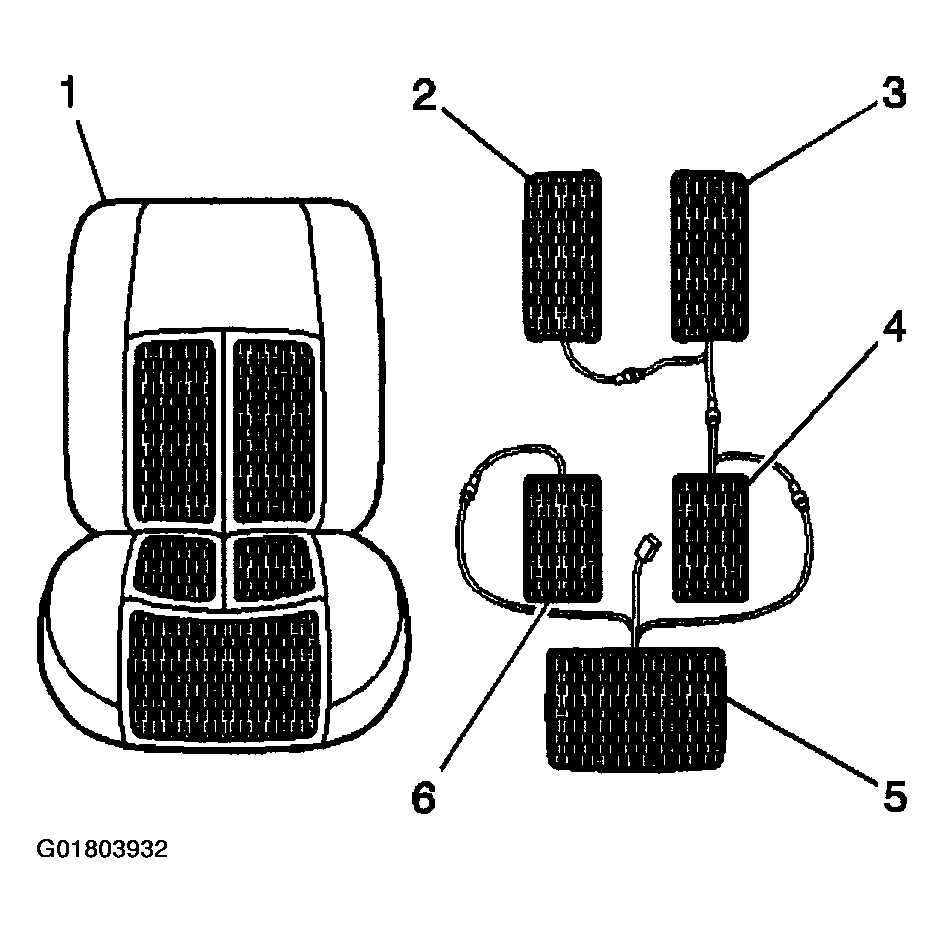

Fig 1: Identifying Heat Elements
Courtesy of GENERAL MOTORS CORP.

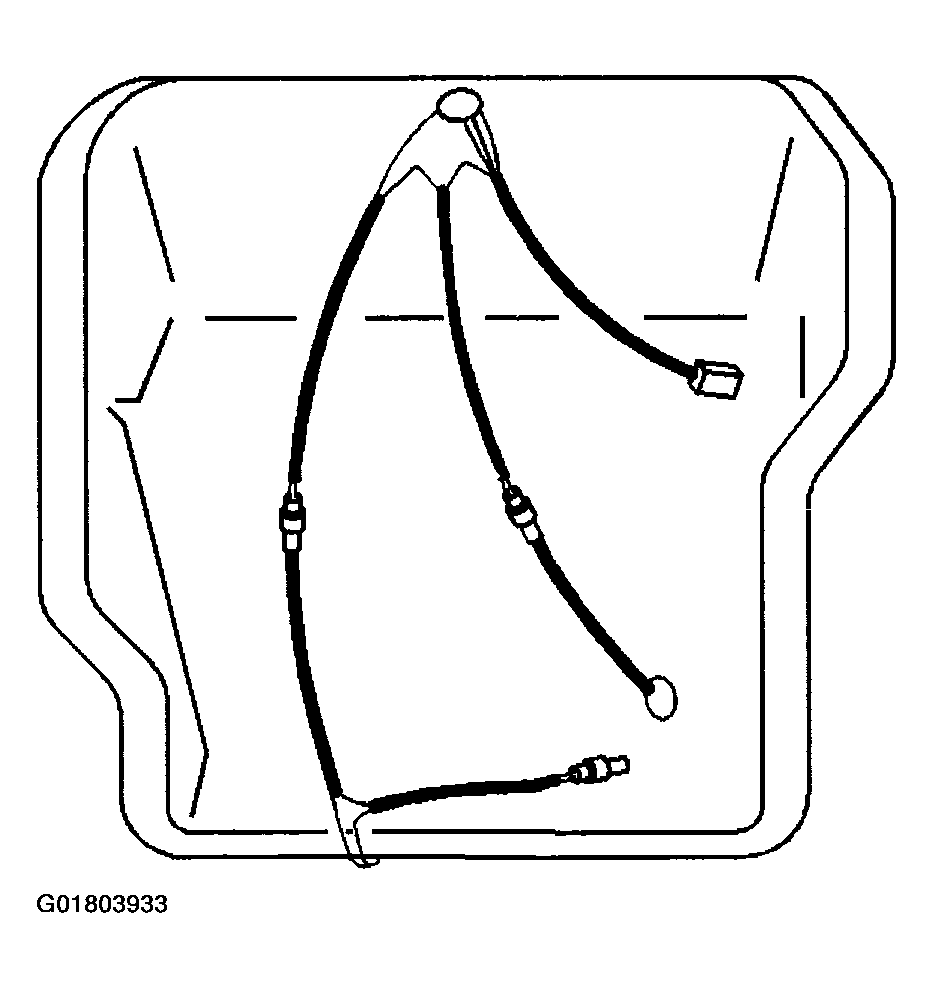

Route the heated seat cushion electrical wiring harness as indicated.

Fig 2: Routing Heated Seat Cushion Electrical Wiring Harness

Courtesy of GENERAL MOTORS CORP.

Install the front seat cushion cover. Refer to Seat Cushion Cover And Pad Replacement - Front .
Install the front seat back cover. Refer to Seat Back Cover And Pad Replacement - Front .
Install the front seat in the vehicle. Refer to Seat Replacement - Bucket .
