Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

Install the rear seat cushion into the vehicle.

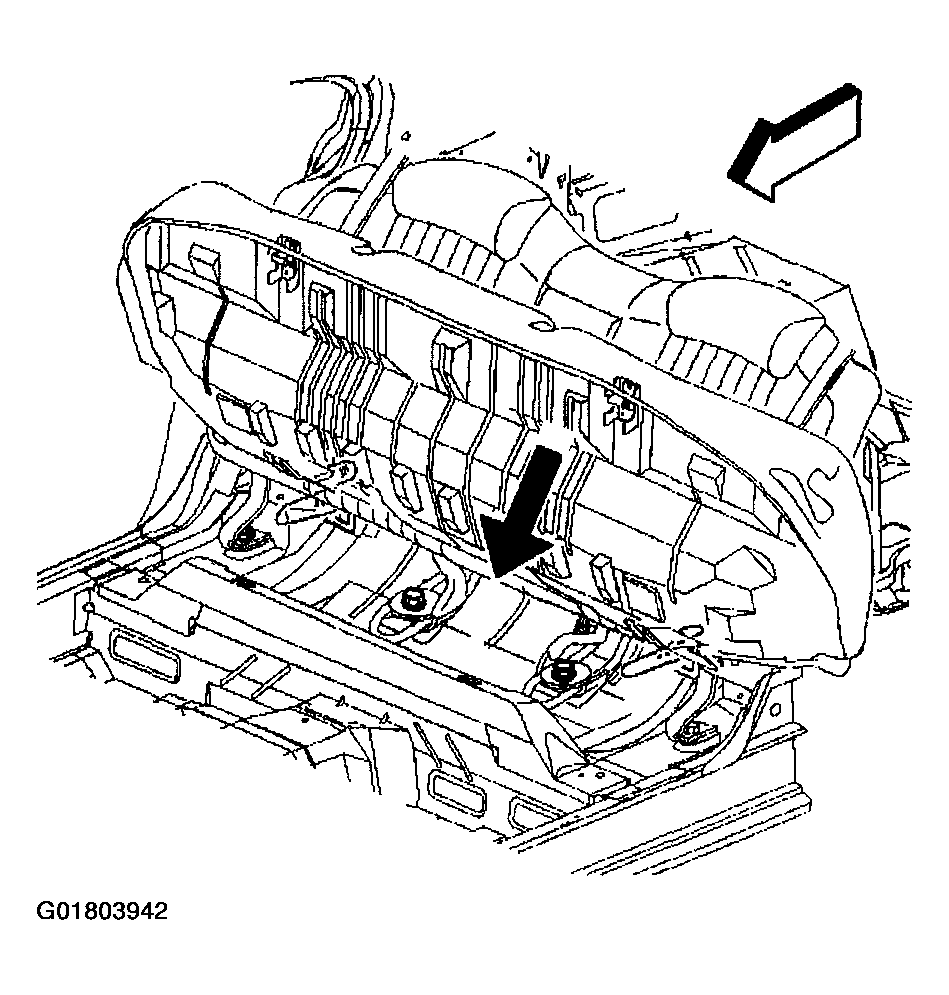

Fig 1: Installing Rear Seat Cushion
Courtesy of GENERAL MOTORS CORP.
Engage 2 locator tabs into the wire loops in the bottom of the rear seat back.
Important: Pull up on the front of the rear seat cushion to ensure that the cushion is secure.
Push down and rearward to seat the rear seat cushion into the latches in the number four bar.

Fig 2: Identifying Locator Tabs & Wire Tabs
Courtesy of GENERAL MOTORS CORP.
