Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Refer to SIR HANDLING CAUTION in Cautions and Notices.
  1. Disable the SIR System. Refer to DISABLING SYSTEM in SIR.
  2. Move the seat to the full forward position.
  3. Remove the fasteners (1) securing the seat cushion to the seat adjuster assembly.
  4. Lift the front of the seat cushion upwards.
  5. Remove the power seat switches. Refer to Seat Switch Replacement - Power

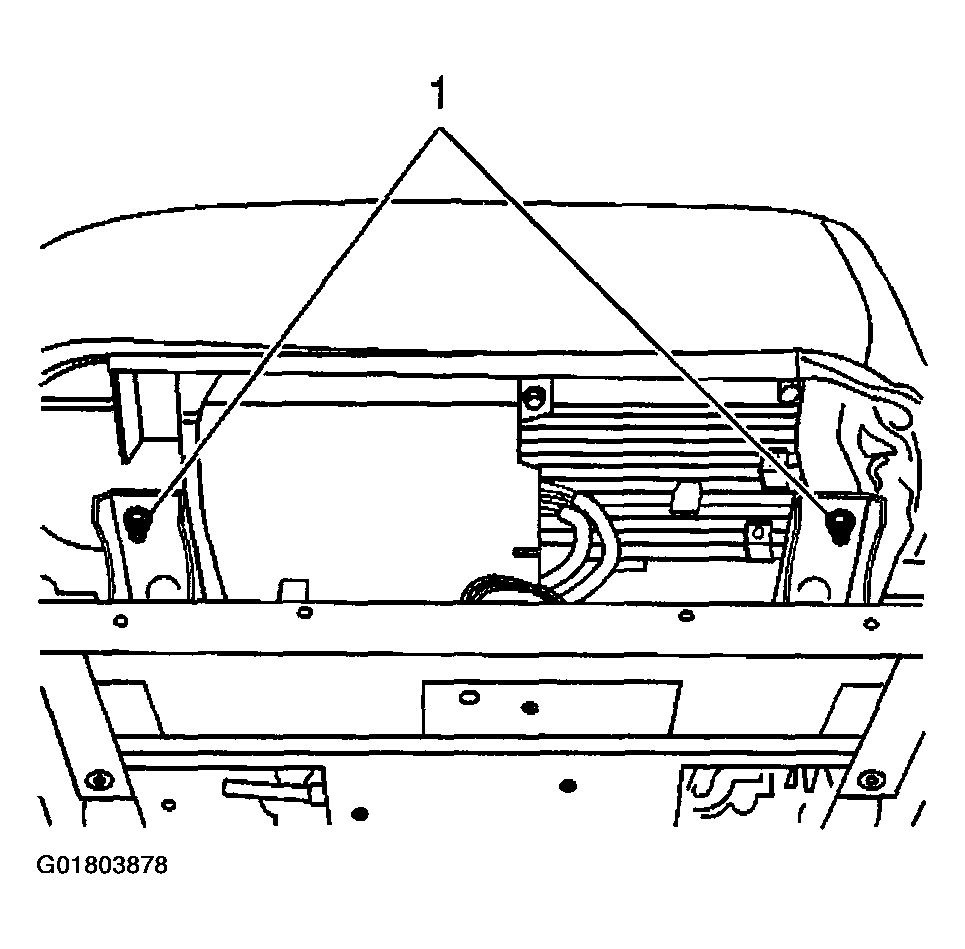

    Fig 1: Locating Seat Cushion Fasteners
    G01803878Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to ELECTRICAL WIRING ROUTING NOTICE in Cautions and Notices.
  6. Disconnect the wiring harness fastener and retainers securing the wiring harness to the bottom of the seat cushion frame.
  7. Remove the memory seat module from the seat cushion frame, if equipped. Refer to Memory Seat Control Module Replacement  .
  8. Pull the cushion forward in order to remove the seat cushion from the seat adjuster assembly.
