Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Refer to SIR HANDLING CAUTION in Cautions and Notices.
  1. Disable the SIR system. Refer to DISABLING SYSTEM in SIR.
  2. Remove the seat cushion. Refer to Seat Cushion Replacement - Front  .

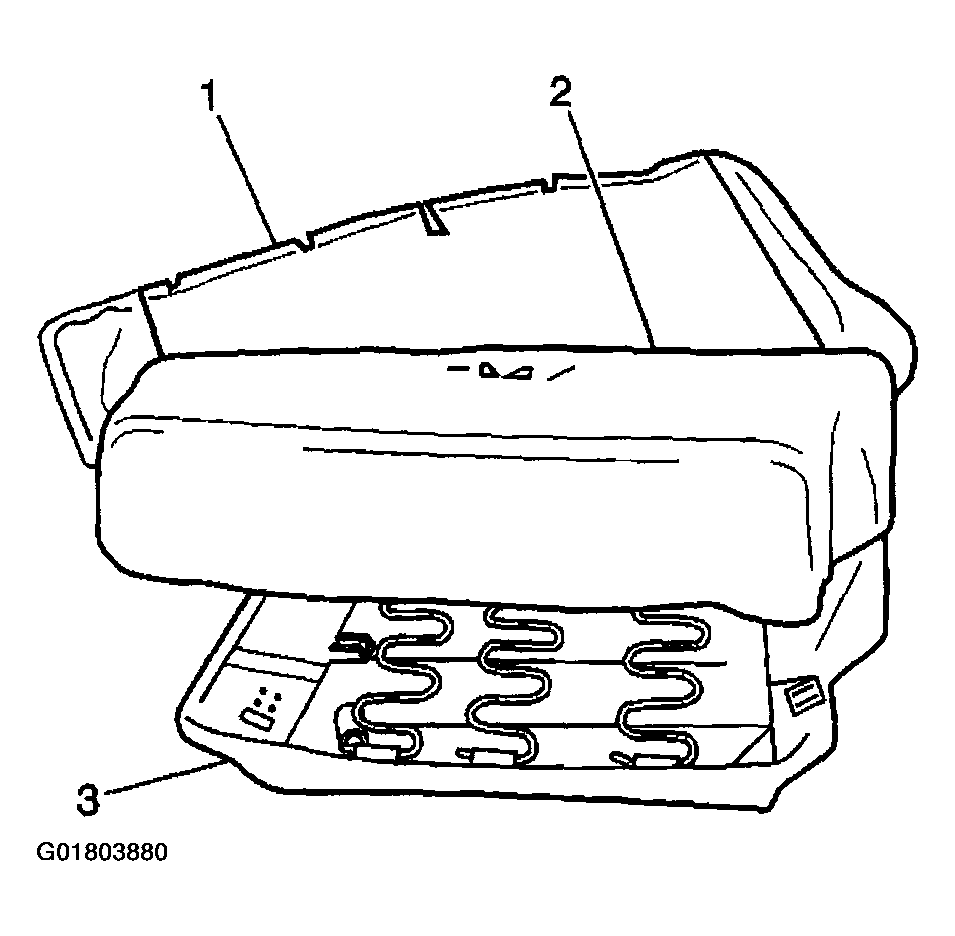

  3. Remove the seat cushion cover (1) and pad (2) from the seat cushion frame (3). Refer to Seat Back Cover And Pad Replacement - Front  .
    Fig 1: Identifying Seat Cushion Cover, Pad & Frame
    G01803880Courtesy of GENERAL MOTORS CORP.
