Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the seat cushion cover (1) and pad (2) onto the seat cushion frame (3). Refer to Seat Back Cover And Pad Replacement - Front  .
  2. Install the seat cushion. Refer to Seat Cushion Replacement - Front  .
  3. Enable the SIR system. Refer to ACTIVATING SYSTEM in SIR.

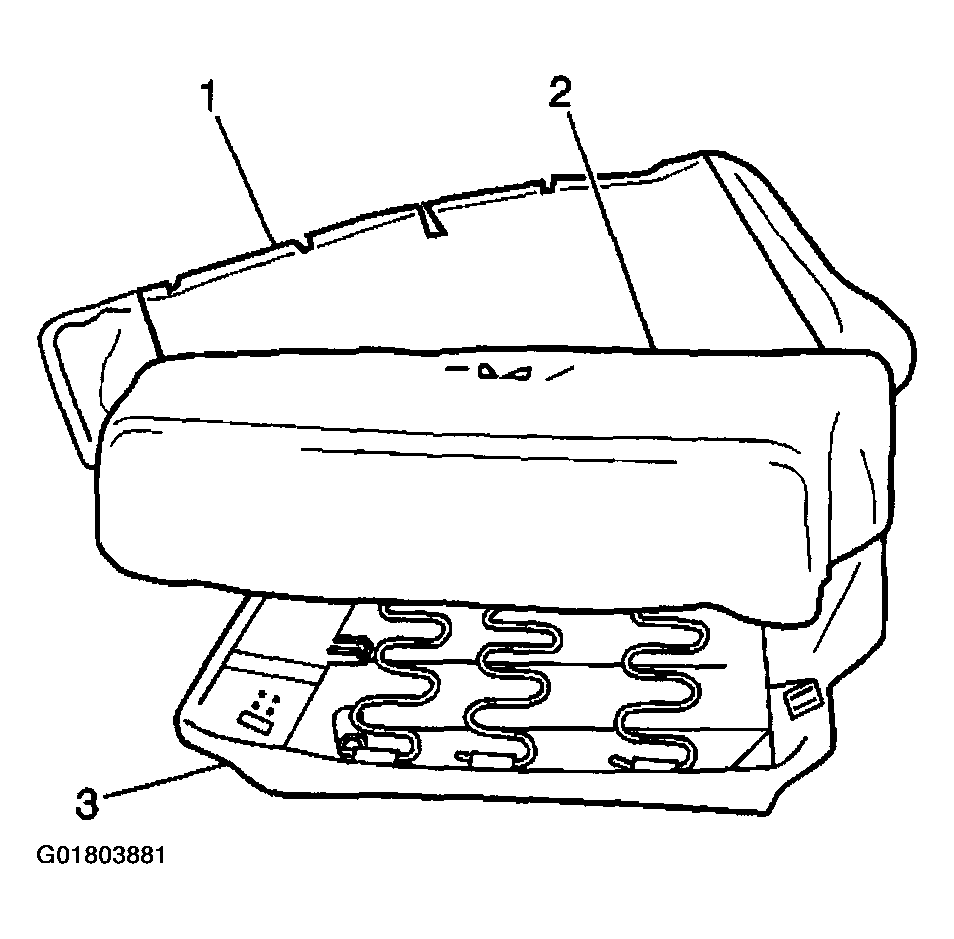

    Fig 1: Identifying Seat Cushion Cover, Pad & Frame
    G01803881Courtesy of GENERAL MOTORS CORP.
