Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the seat cushion pad (2) to the seat cushion frame (3).
  2. Install the seat cushion cover (1) over the seat cushion pad (2).
  3. Work the cushion pad (2) into position so there are no wrinkles or lumps in the seat cushion cover.
  4. Ensure the hook and loop fasteners on the seat cushion cover and the seat cushion pad are fully engaged in order to ensure proper fit of the seat cushion cover.
  5. Install the seat cushion cover J channels to the seat cushion frame.
  6. Install the power seat switch trim bezel. Refer to Seat Switch Replacement - Power  .
  7. Insert the seat cushion locators, at the rear of the seat cushion frame, into the rectangular openings in the seat adjuster assembly.

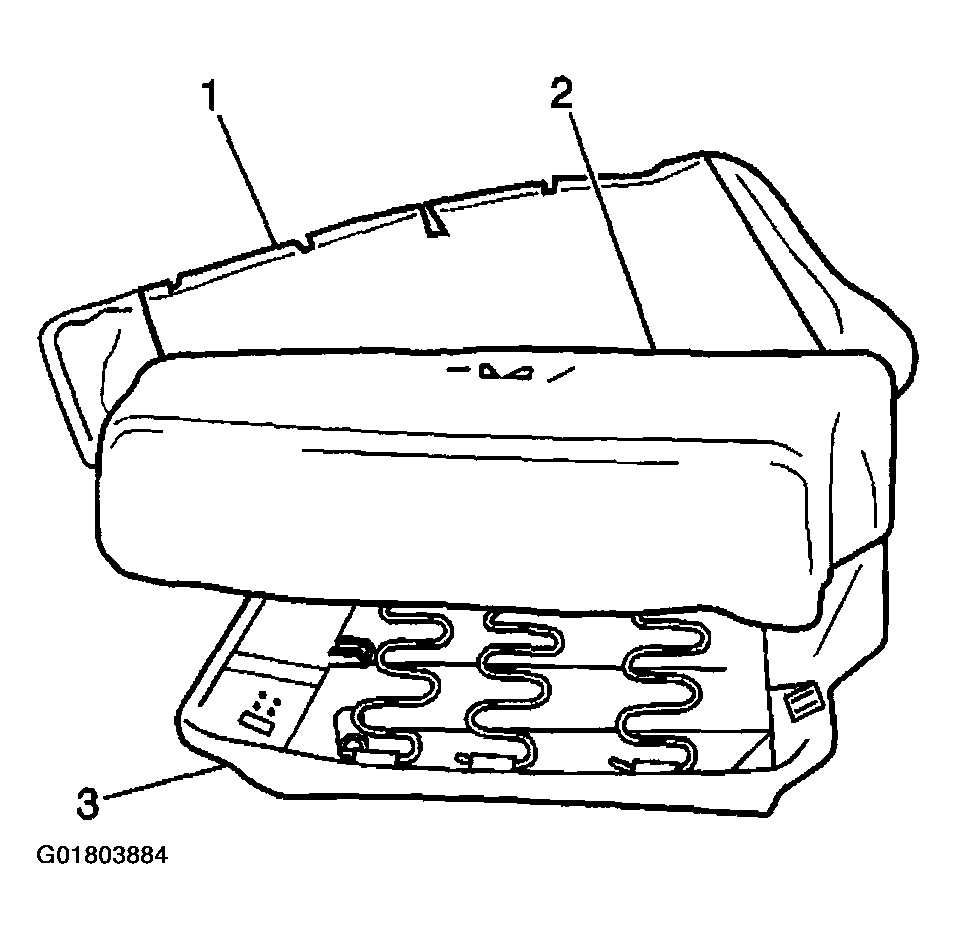

    Fig 1: Identifying Seat Cushion Cover, Pad & Frame
    G01803884Courtesy of GENERAL MOTORS CORP.
  8. Lower the front of the seat cushion down into position onto the seat adjuster assembly.
    CAUTION: Refer to FASTENER NOTICE in Cautions and Notices.
  9. Install the seat cushion fasteners.

    Tighten

    Tighten the fasteners to 9 N.m (80 lb in).

  10. Enable the SIR system. Refer to ACTIVATING SYSTEM in SIR.
