Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear seat cushion. Refer to Seat Cushion Replacement - Rear  .
  2. Remove the rear seat belt buckle and center shoulder belt anchor fasteners.

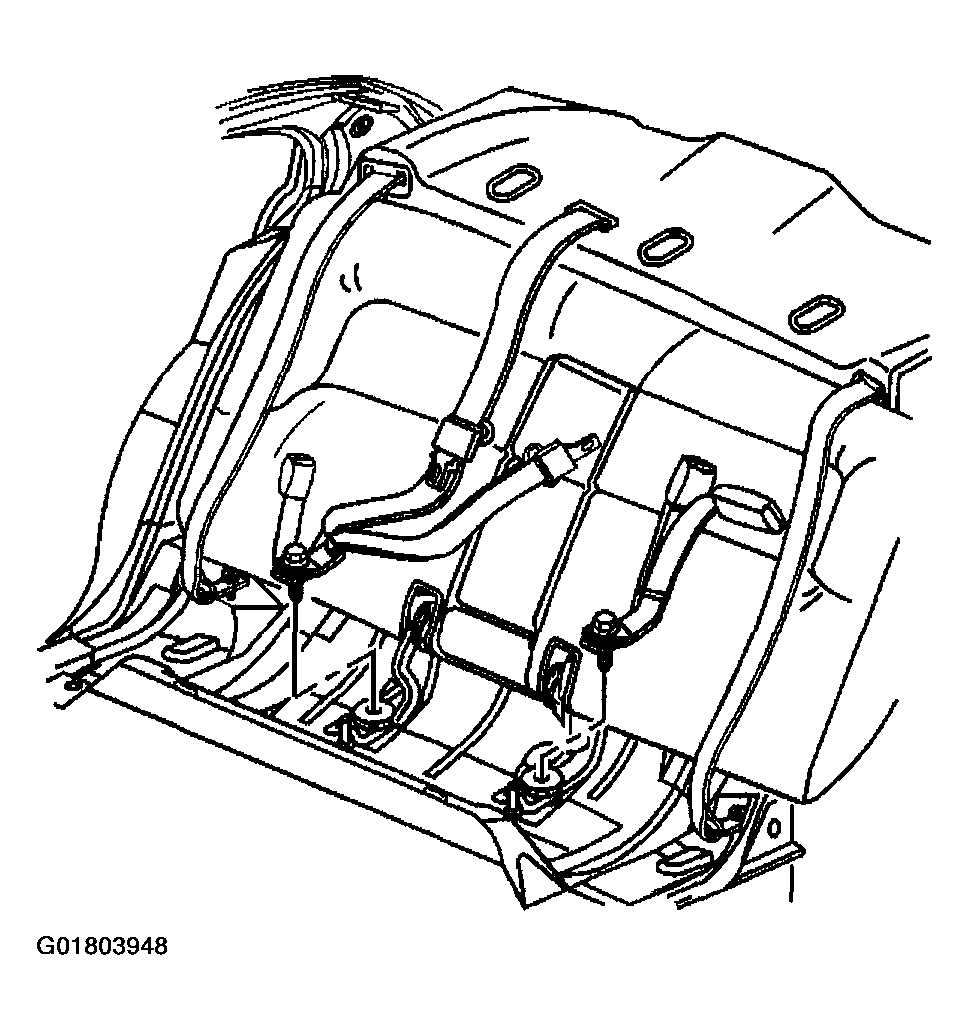

    3. Fig 1: Removing Rear Seat Belt Buckle & Center Shoulder Belt Anchor Fasteners
    G01803948Courtesy of GENERAL MOTORS CORP.
  3. Lift the center shoulder belt off of the seat back and store on the rear shelf panel.
  4. Insert a flat bladed tool between the top of the rear seat back and the rear shelf trim panel.
  5. Push down on the flat bladed tool in order to release the rear seat back retainers.
    Fig 2: Releasing Rear Seat Back Retainers
    G01803949Courtesy of GENERAL MOTORS CORP.
  6. Release the 4 retainers and pull the seat back away from the cross car beam.
  7. Position the rear shoulder belts in order to clear the rear seat back.
  8. Remove the rear seat back.

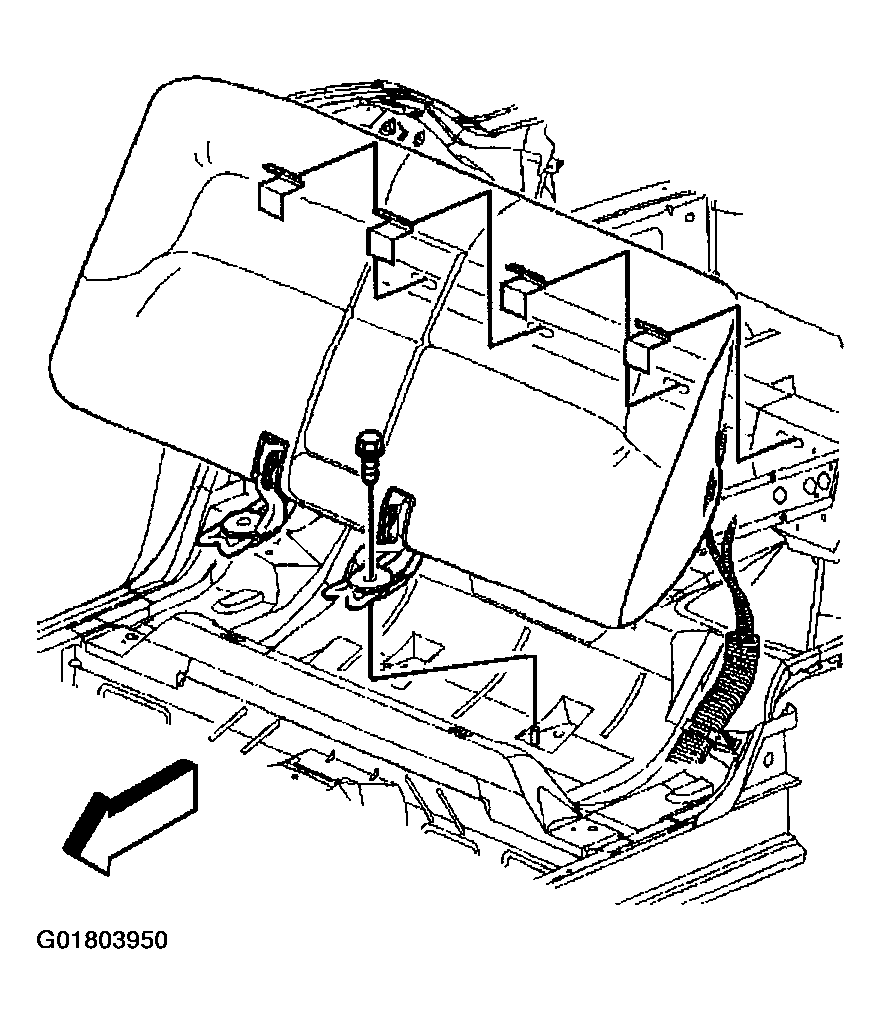

    Fig 3: Removing Rear Seat Back
    G01803950Courtesy of GENERAL MOTORS CORP.
