Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the rear seat back into the car.
  2. Align the rear seat back retainer clips with the slots on the cross car beam.
  3. Push in firmly on the rear seat back in order to engage the rear seat back retainer clips.
  4. Position the rear shoulder belts over the seat back.

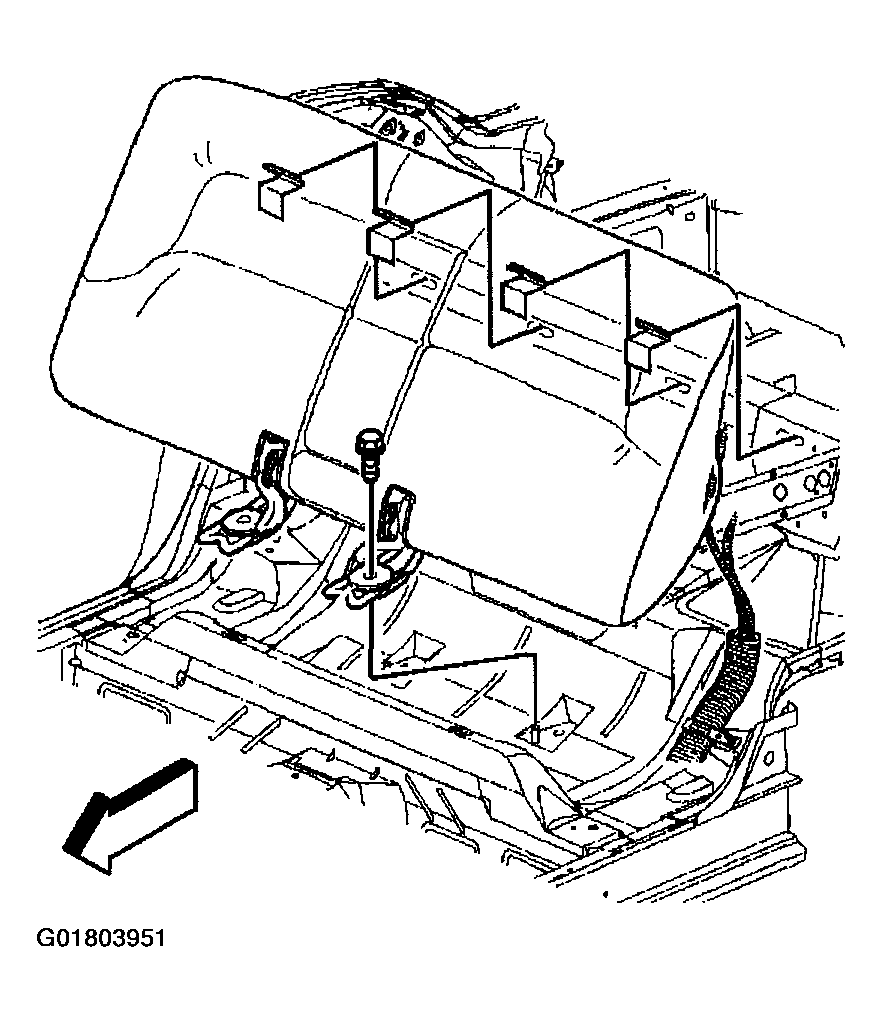

    Fig 1: Installing Rear Seat Back
    G01803951Courtesy of GENERAL MOTORS CORP.
  5. Position the center shoulder belt over the rear seat back.
    CAUTION: Refer to FASTENER NOTICE in Cautions and Notices.

    Important:  Ensure that the fastener threads and fastener holes are free of any sealer patch material.

  6. Install the rear seat belt buckle and center shoulder belt anchor fasteners.

    Tighten

    Tighten the fasteners to 41 N.m (32 lb ft).

  7. Install the rear seat cushion. Refer to Seat Cushion Replacement - Rear  .

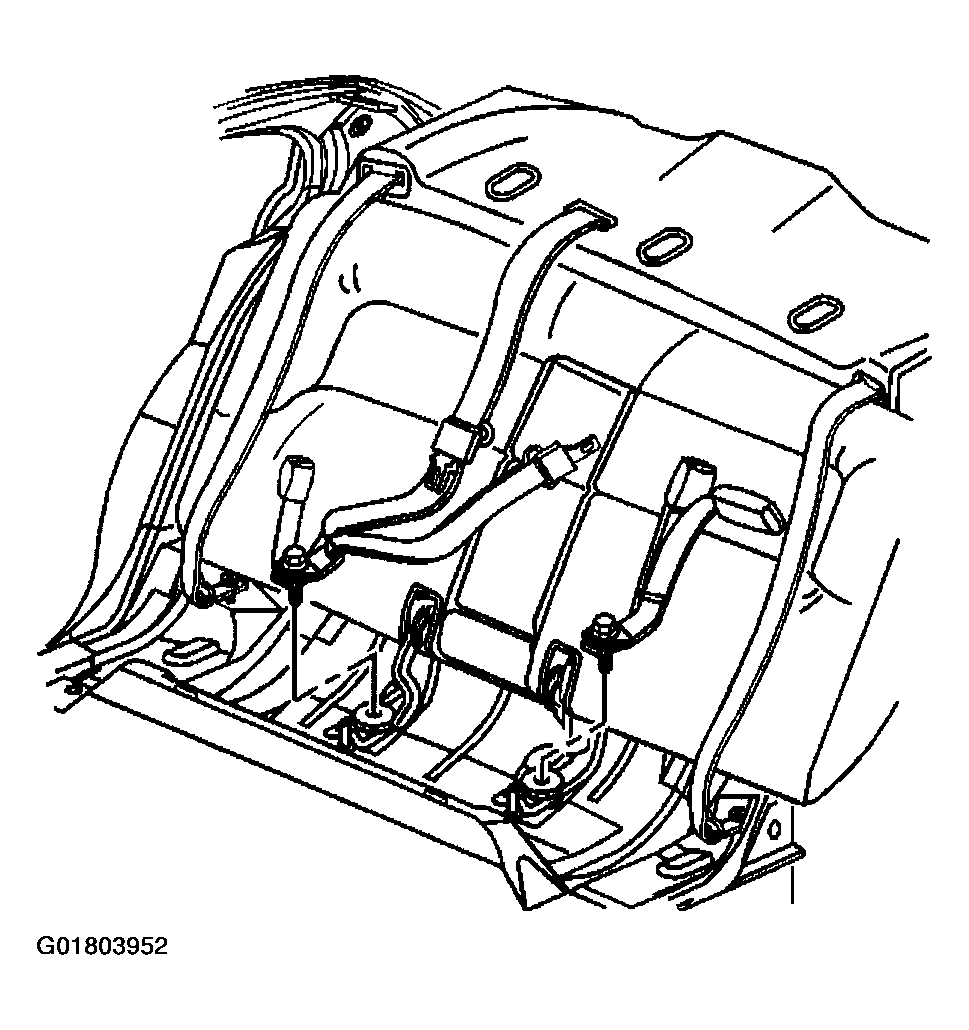

    Fig 2: Installing Seat Belt Buckle & Center Shoulder Belt Anchor Fasteners
    G01803952Courtesy of GENERAL MOTORS CORP.
