Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the seat to the full forward position.
  2. Remove the front seat. Refer to Seat Replacement - Bucket  .
  3. Remove the seat cushion. Refer to Seat Cushion Replacement - Front  .
  4. Disconnect the lumbar electrical connector.
  5. Remove the adjuster track covers. Refer to Seat Adjuster Track Cover Replacement - Front  .
  6. Remove the seat back frame. Refer to Seat Back Frame Replacement - Front  .

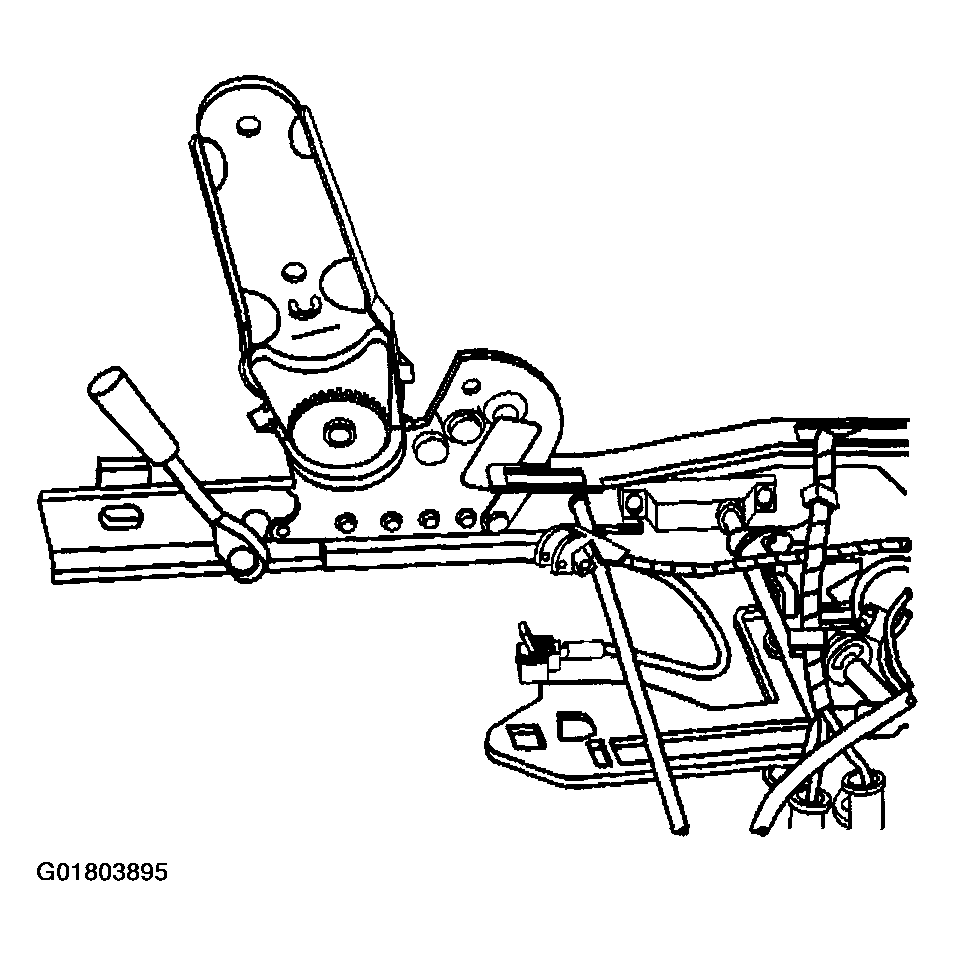

    Fig 1: Locating Seat Back Recliner
    G01803895Courtesy of GENERAL MOTORS CORP.
  7. Remove the seat back recliner motor and sensor if equipped. Refer to Power Recliner Motor Replacement - Front Seat  .
  8. Remove the fasteners securing the outboard seat adjuster track reinforcement bracket.
  9. Remove the outboard seat adjuster track reinforcement bracket.
  10. Remove the seat back recliner fasteners.
  11. Remove the recliner assemblies by sliding the recliners rearwards out of the seat adjuster tracks.
