Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Slide the recliner assemblies into the seat adjuster tracks.
    CAUTION: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the recliner fasteners.

    Tighten

    Tighten the fasteners to 50 N.m (37 lb ft).

  3. Install the outboard seat adjuster track reinforcement bracket.
  4. Install the reinforcement bracket fasteners.

    Tighten

    Tighten the fasteners to 50 N.m (37 lb ft).

  5. Install the recliner motor and sensor if equipped. Refer to Power Recliner Motor Replacement - Front Seat  .
  6. Install the seat back frame. Refer to Seat Back Frame Replacement - Front  .

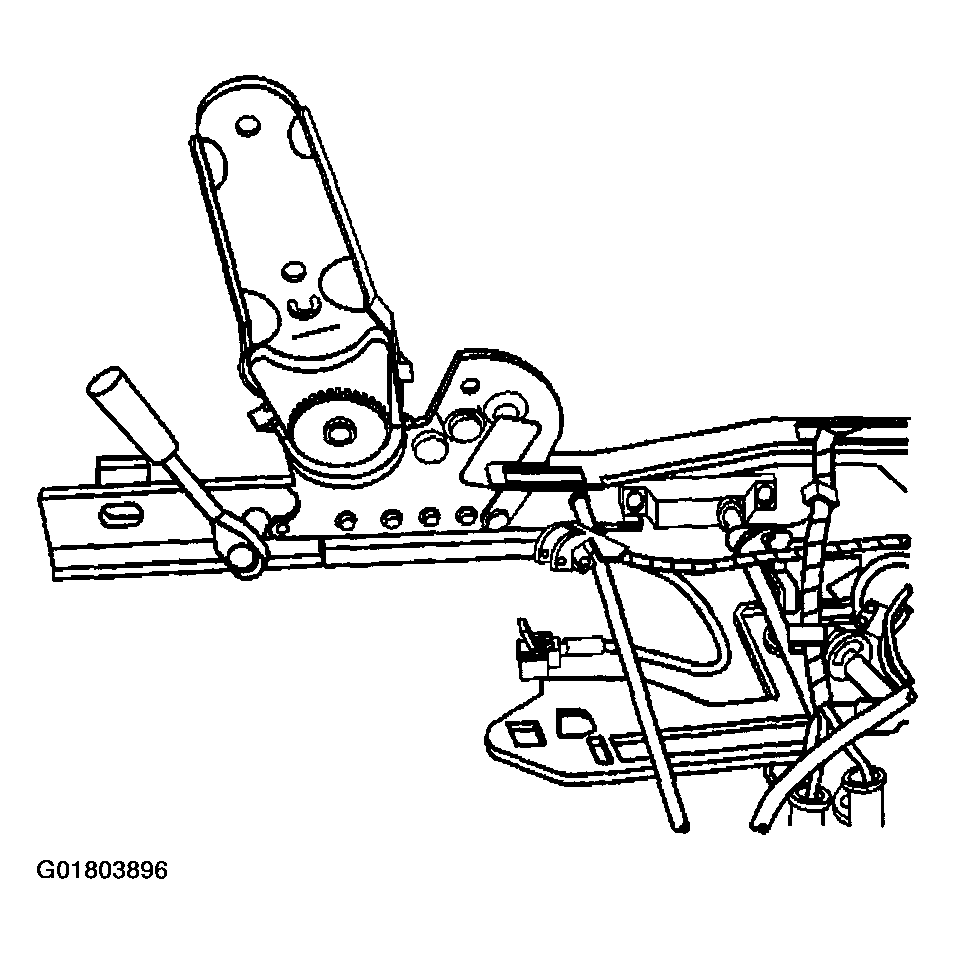

    Fig 1: Locating Seat Back Recliner
    G01803896Courtesy of GENERAL MOTORS CORP.
  7. Connect the lumbar electrical connector.
  8. Install the adjuster track covers. Refer to Seat Adjuster Track Cover Replacement - Front  .
  9. Install the seat cushion. Refer to Seat Cushion Replacement - Front  .
  10. Install the front seat. Refer to Seat Replacement - Bucket  .
