Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the seat to the full forward position.
  2. Remove the seat. Refer to Seat Replacement - Bucket  .
  3. Remove the seat cushion. Refer to Seat Cushion Replacement - Front  .
  4. Disconnect the lumbar electrical connector, if equipped.
  5. Remove the manual seat recliner handle.
  6. Remove the adjuster track covers. Refer to Seat Adjuster Track Cover Replacement - Front  .
  7. Remove the seat back frame. Refer to Seat Back Frame Replacement - Front  .
  8. Remove the rivets securing the inner seat adjuster track cover.

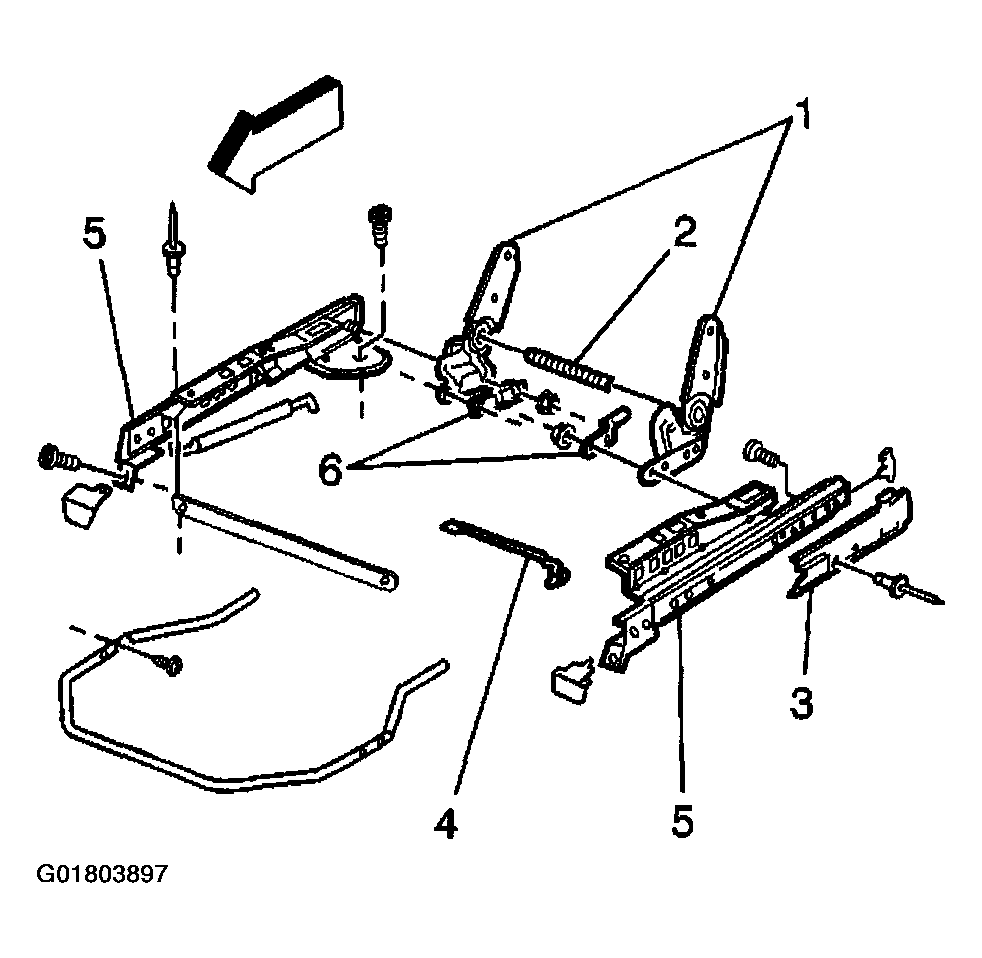

    Fig 1: Identifying Seat Back Recliner Components
    G01803897Courtesy of GENERAL MOTORS CORP.
  9. Remove the seat adjuster bracket reinforcement (4) fasteners.
  10. Remove the seat adjuster reinforcement bracket (4).
  11. Remove the fasteners securing the outboard seat adjuster track reinforcement bracket (3).
  12. Remove the outboard seat adjuster track reinforcement bracket (3).
  13. Remove the seat back recliner fasteners.
  14. Remove the recliner rod (2).
  15. Remove the seat back recliner assemblies (1) by sliding the recliners rearwards out of the seat adjuster tracks.
