Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Refer to SIR HANDLING CAUTION in Cautions and Notices.
  1. Disable the SIR system. Refer to DISABLING SYSTEM in SIR.
  2. Position the seat cushion out of the way. Refer to Seat Cushion Replacement - Front  .
  3. Remove the head restraint. Refer to Head Restraint Replacement - Front Seat  .
  4. Open the seat back cover J and arrow fasteners (1, 4).
  5. Disconnect the double J channel fasteners (5).
  6. Disconnect the J channel fasteners (2,3).

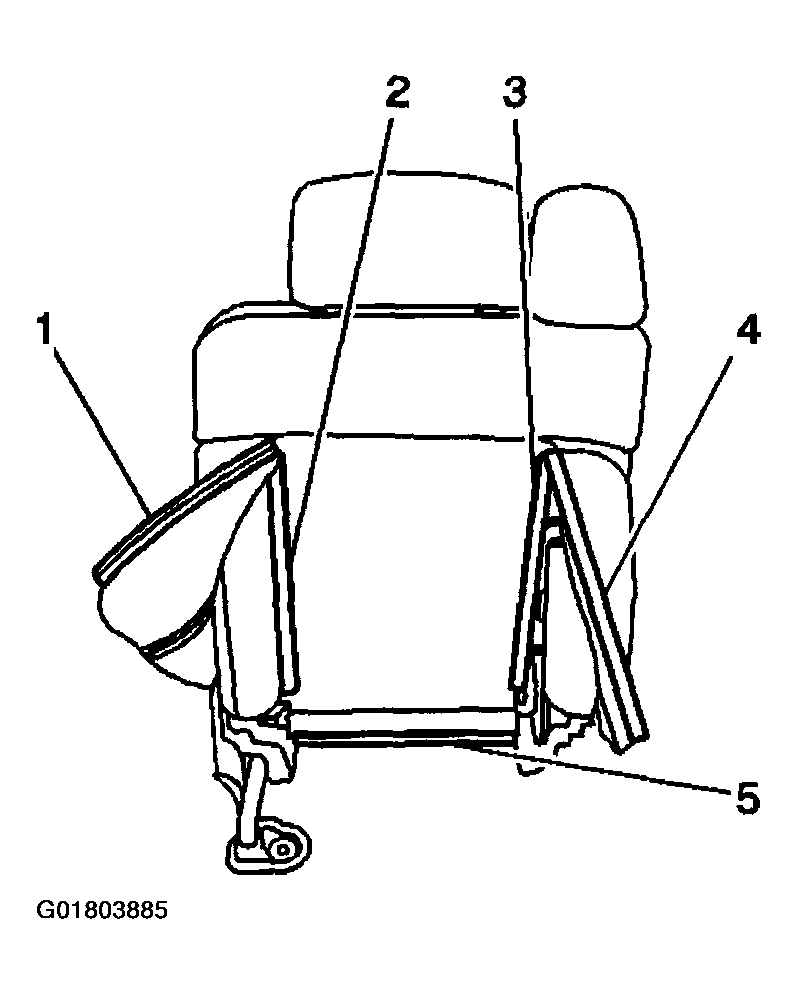

    Fig 1: Locating J Channel Fasteners (1 Of 2)
    G01803885Courtesy of GENERAL MOTORS CORP.
  7. Disconnect the J channel fastener (1).

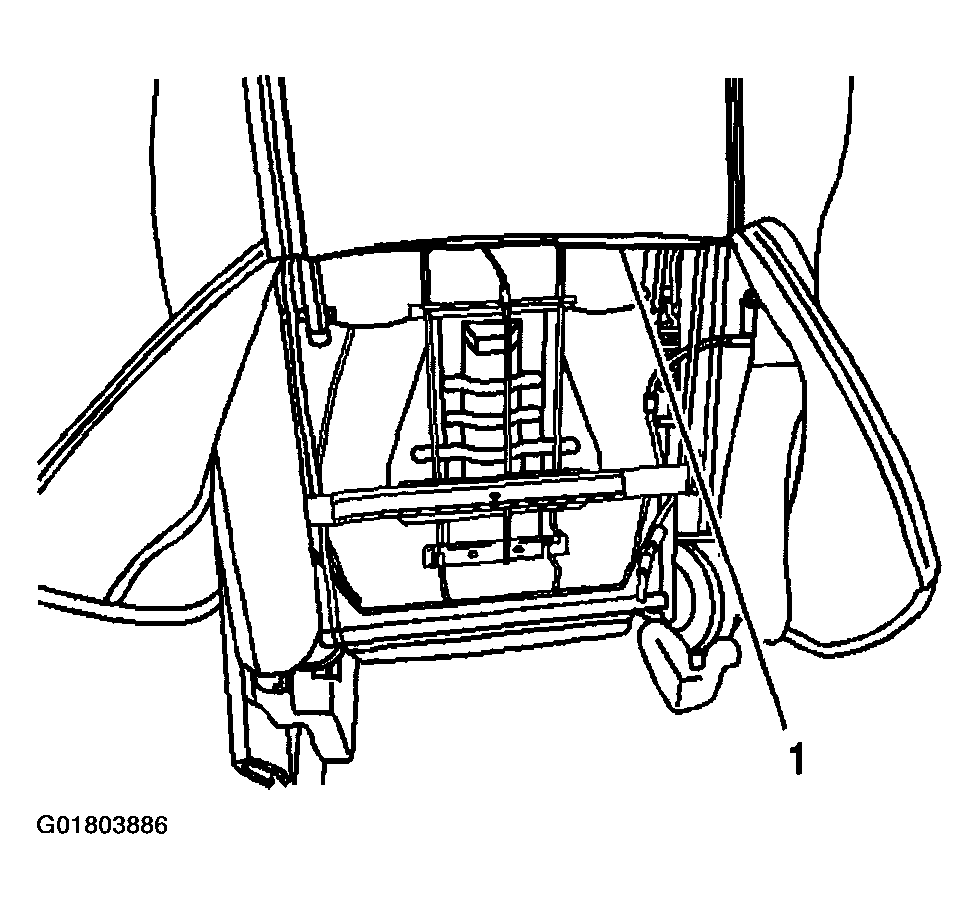

    Fig 2: Locating J Channel Fasteners (2 Of 2)
    G01803886Courtesy of GENERAL MOTORS CORP.
  8. Remove the inflatable restraint. Refer to REMOVAL & INSTALLATION (SIDE IMPACT) in SIR.
  9. Remove the head restraint retainers. Refer to Head Restraint Retainer Replacement - Front Seat  .
  10. Remove the shoulder belt retractor. Refer to SEAT BELT REPLACEMENT -- FRONT in Seat Belts.
  11. Remove the seat back cover (2) from the seat back pad (1) and the seat back frame.

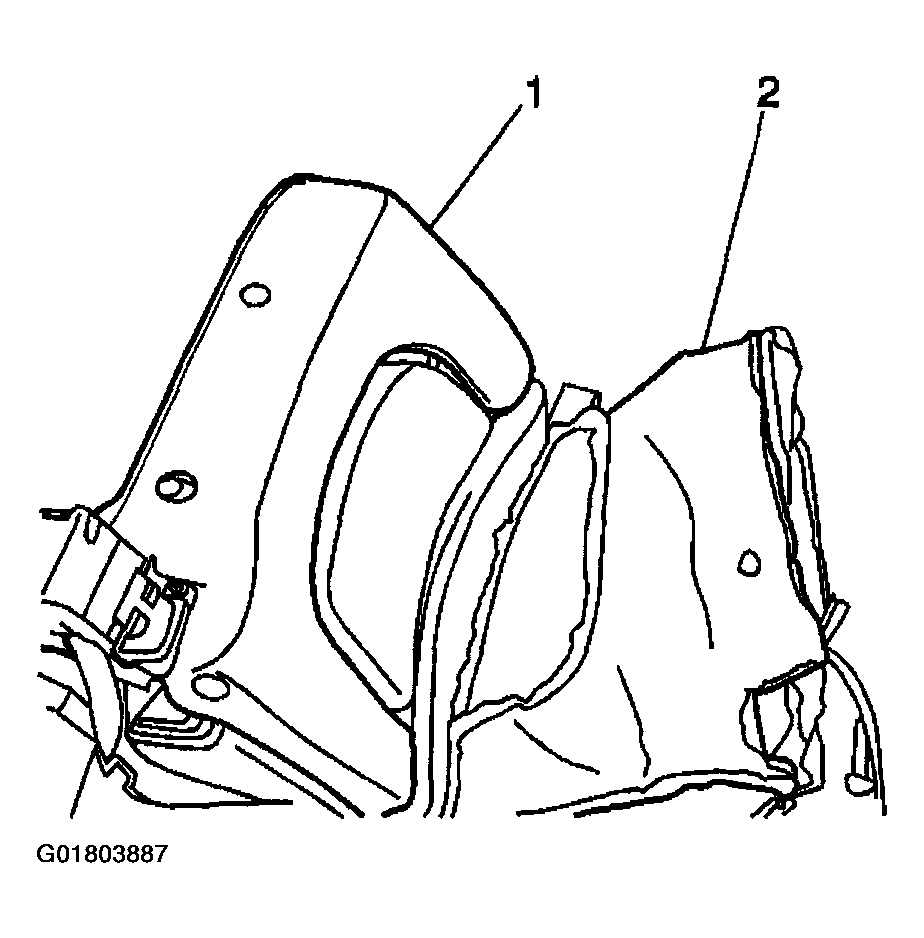

    Fig 3: Locating Seat Back Cover & Frame
    G01803887Courtesy of GENERAL MOTORS CORP.
  12. Remove the seat back pad (2) from the seat back frame (1).

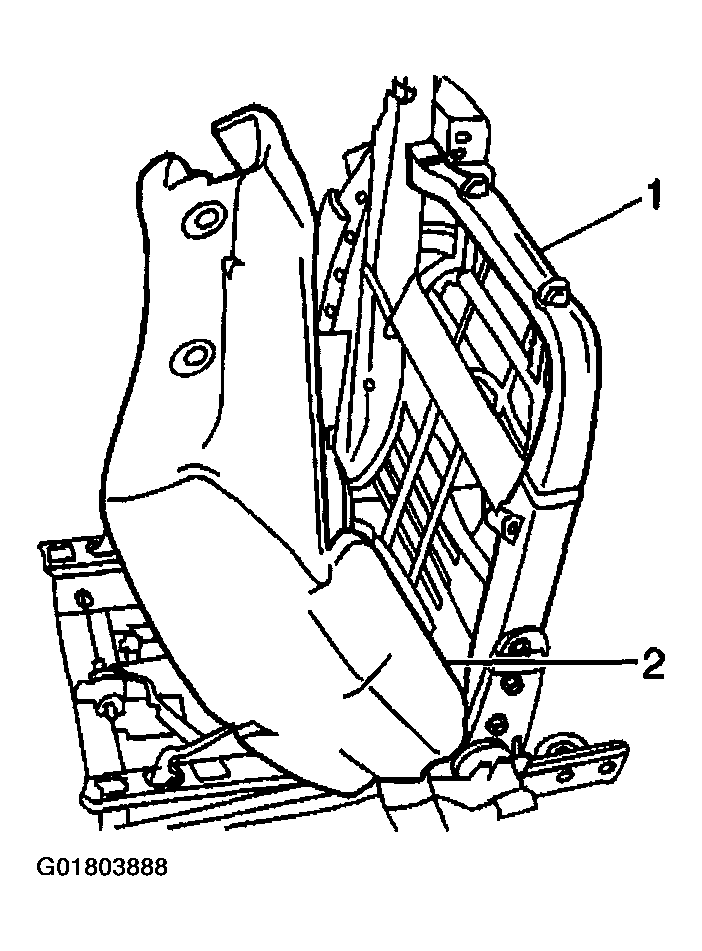

    Fig 4: Removing Seat Back Cover & Frame
    G01803888Courtesy of GENERAL MOTORS CORP.
