Installation Procedure
WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
- Transfer all remaining seat components to the new adjuster assembly.

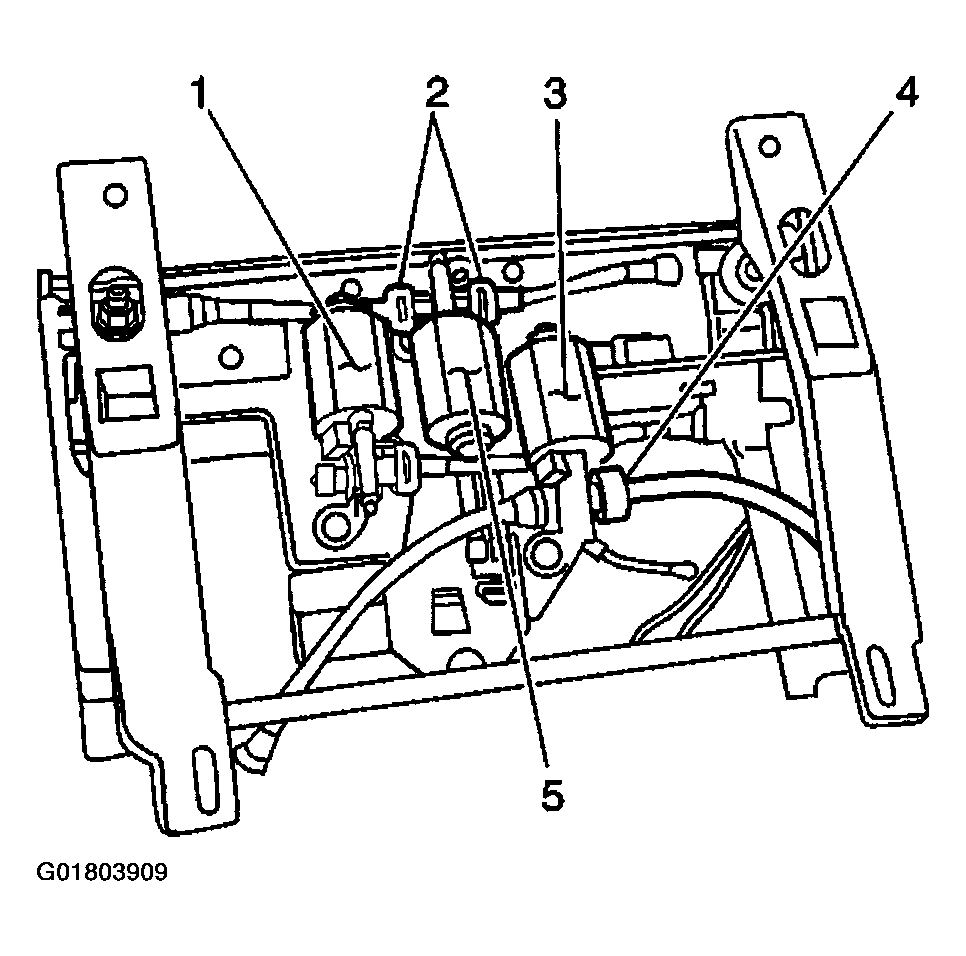

- The seat adjuster motors (1, 3, 5). Refer to Seat Adjuster Motor Replacement .
- The adjuster cables / sensors (2, 4). Refer to Drive Cable Replacement - Power Seat .
- The wiring
- The clips
- Install the seat back recliners. Refer to Seat Back Recliner Replacement - Front (Power) or Seat Back Recliner Replacement - Front (Manual) .
- Install the seat back frame. Refer to Seat Back Frame Replacement - Front .
- Install the front seat cushion. Refer to Seat Cushion Replacement - Front .
- Install the front seat. Refer to Seat Replacement - Bucket .
