Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the seat adjuster motor (1, 2, 3) to the seat adjuster motor bracket.
  2. Install the rivets in order to secure the seat adjuster motor (1, 2, 3) to the seat adjuster motor bracket.
  3. Connect the electrical connector.
  4. Install the seat adjuster drive cables to the seat adjuster motor. Refer to Drive Cable Replacement - Power Seat  .
  5. Install the seat cushion. Refer to Seat Cushion Replacement - Front  .
  6. Enable the SIR system. Refer to ACTIVATING SYSTEM .

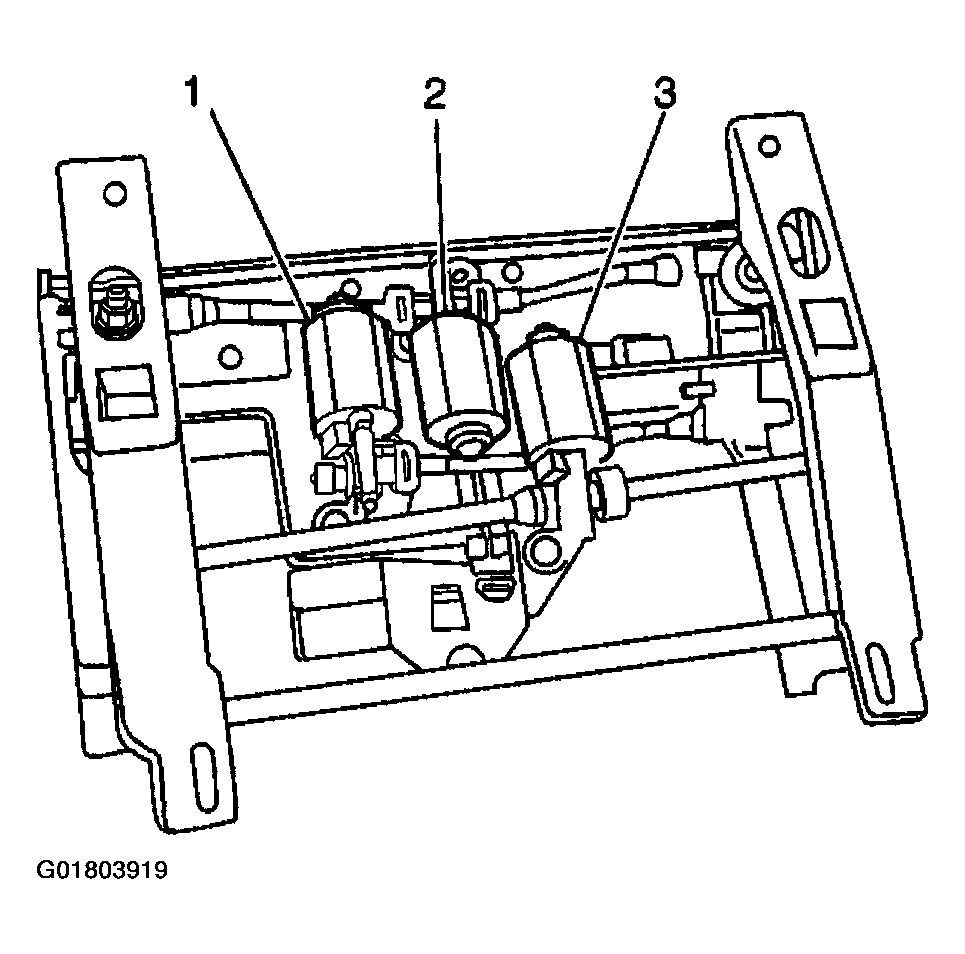

    Fig 1: Locating Seat Adjuster Motors
    G01803919Courtesy of GENERAL MOTORS CORP.
