Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the console trim plate. Refer to TRIM PLATE REPLACEMENT -- CONSOLE in Instrument Panel, Gages and Console.
  2. Disconnect the electrical connector.
  3. Remove the switch fastener from the underside of the console trim plate.
  4. Remove the heated seat switch from the console trim plate.

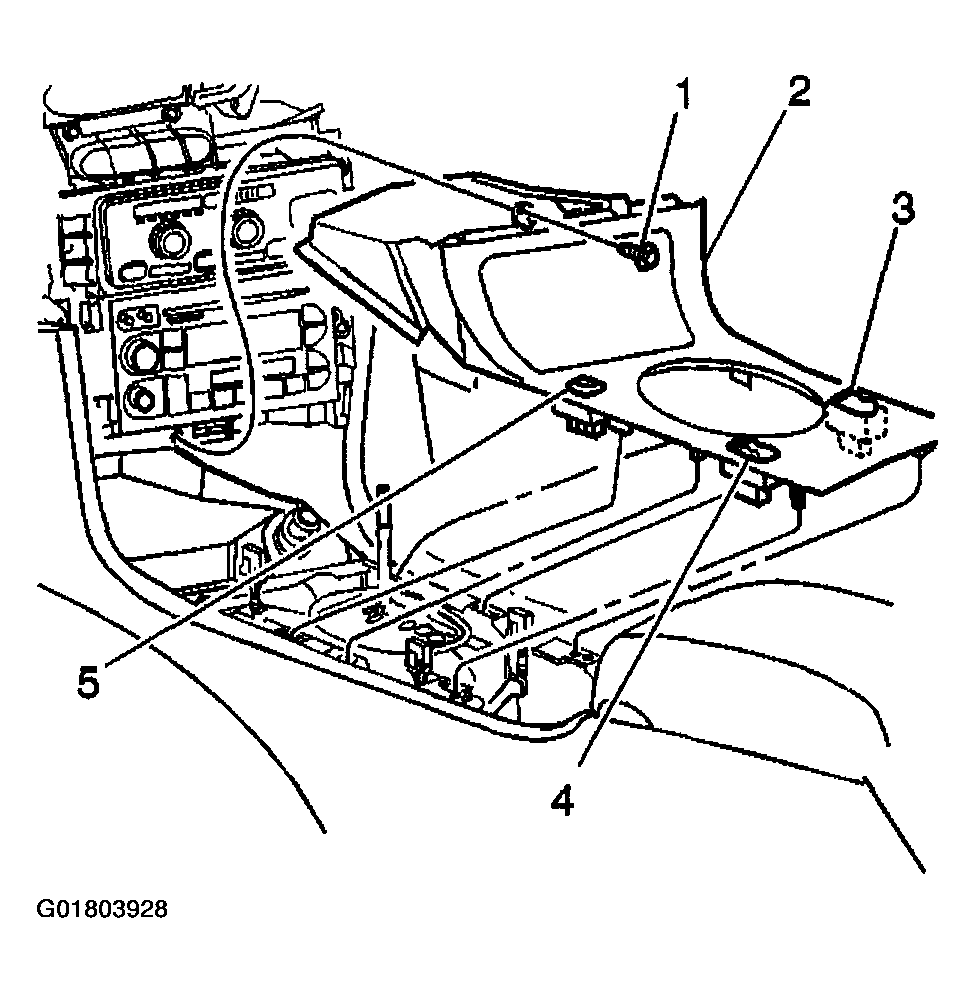

    Fig 1: Removing Console Trim Plate
    G01803928Courtesy of GENERAL MOTORS CORP.
