Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the head restraint. Refer to Head Restraint Replacement - Front Seat  .
  2. Position the front seat back to the full-up position.
  3. Remove the seat back cover enough to gain access to the head restraint retainer. Refer to Seat Back Cover And Pad Replacement - Front  .
  4. Carefully reach inside the seat back behind the foam cushion and cover.
  5. Depress the retaining tabs through the openings (2) in the seat back frame.
  6. Grasp the head restraint retainer and pull upward in order to remove the retainer from the seat back.

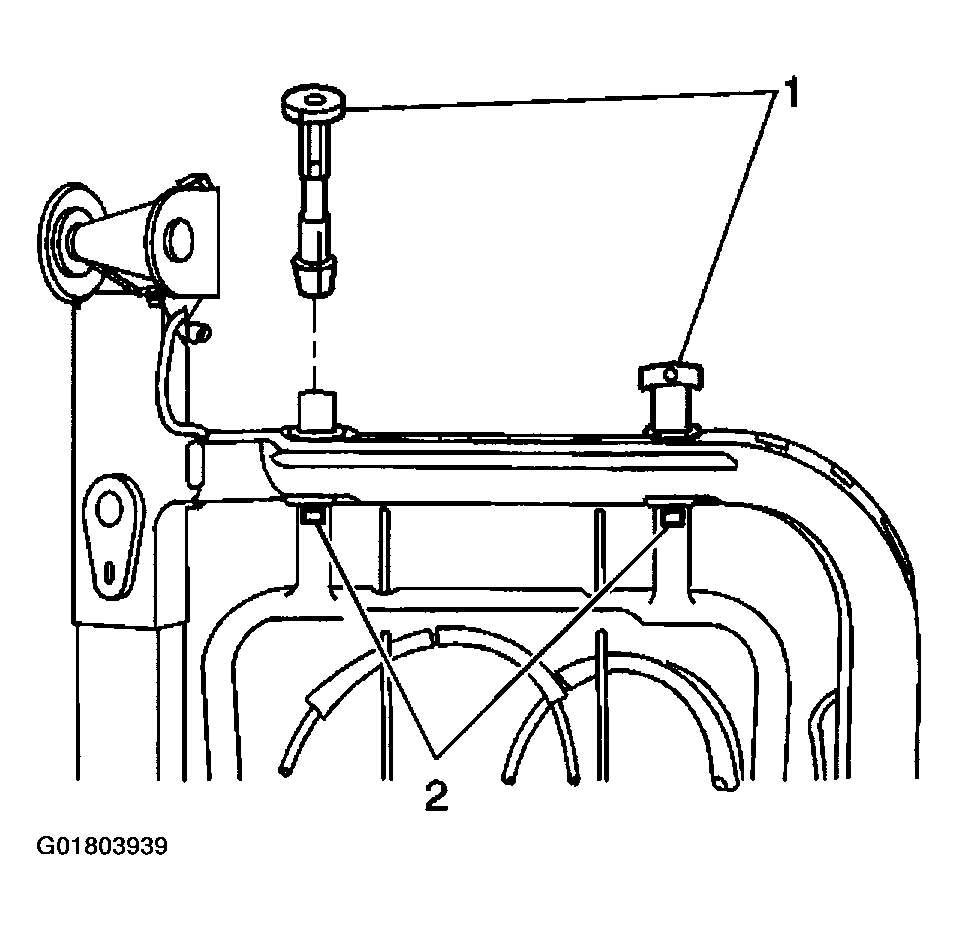

    Fig 1: Removing Head Restraint
    G01803939Courtesy of GENERAL MOTORS CORP.
