Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the head restraint retainer to the openings in the seat back frame.
  2. Firmly push the head restraint retainer (1) downward until the retaining tabs engage, securing the retainers to the seat back frame.
  3. Install the seat back cover. Refer to Seat Back Cover And Pad Replacement - Front  .
  4. Install the head restraint. Refer to Head Restraint Replacement - Front Seat  .
  5. Return the seat back to the original position.

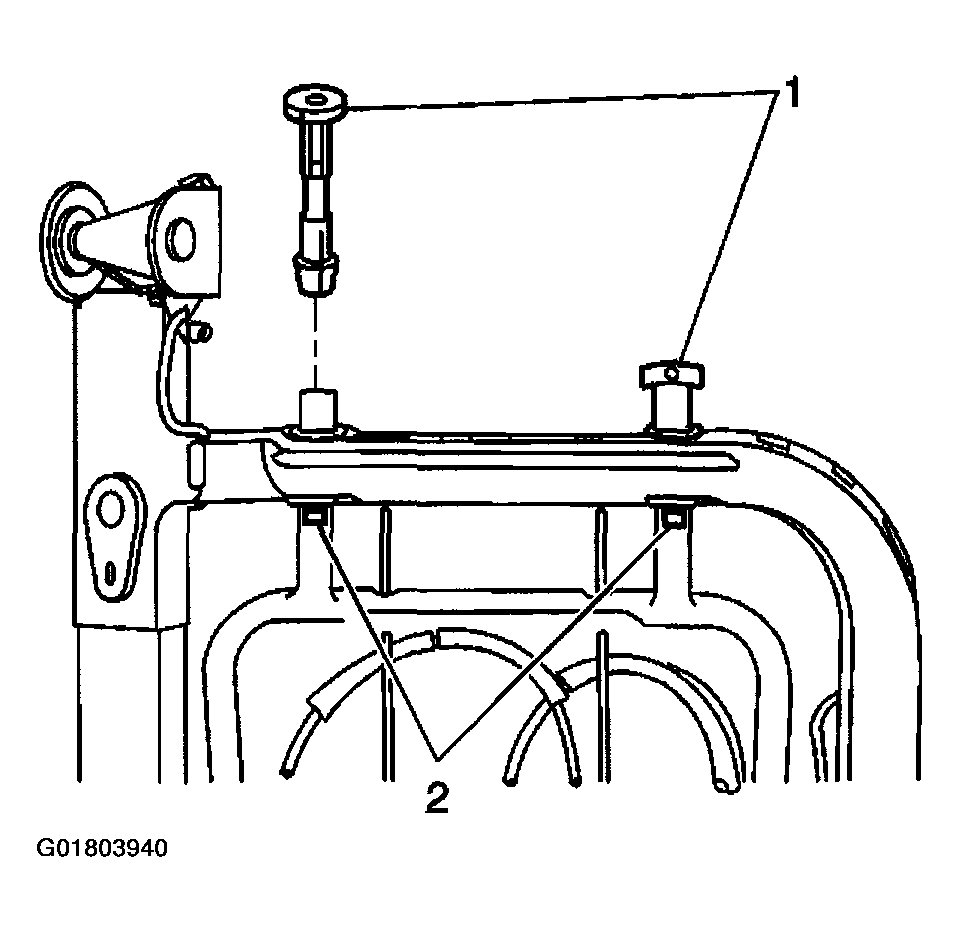

    Fig 1: Installing Head Restraint
    G01803940Courtesy of GENERAL MOTORS CORP.
