Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Insert a small tool into the access hole in the head restraint retainers (1).
  2. Pull straight up on the head restraint in order to remove.

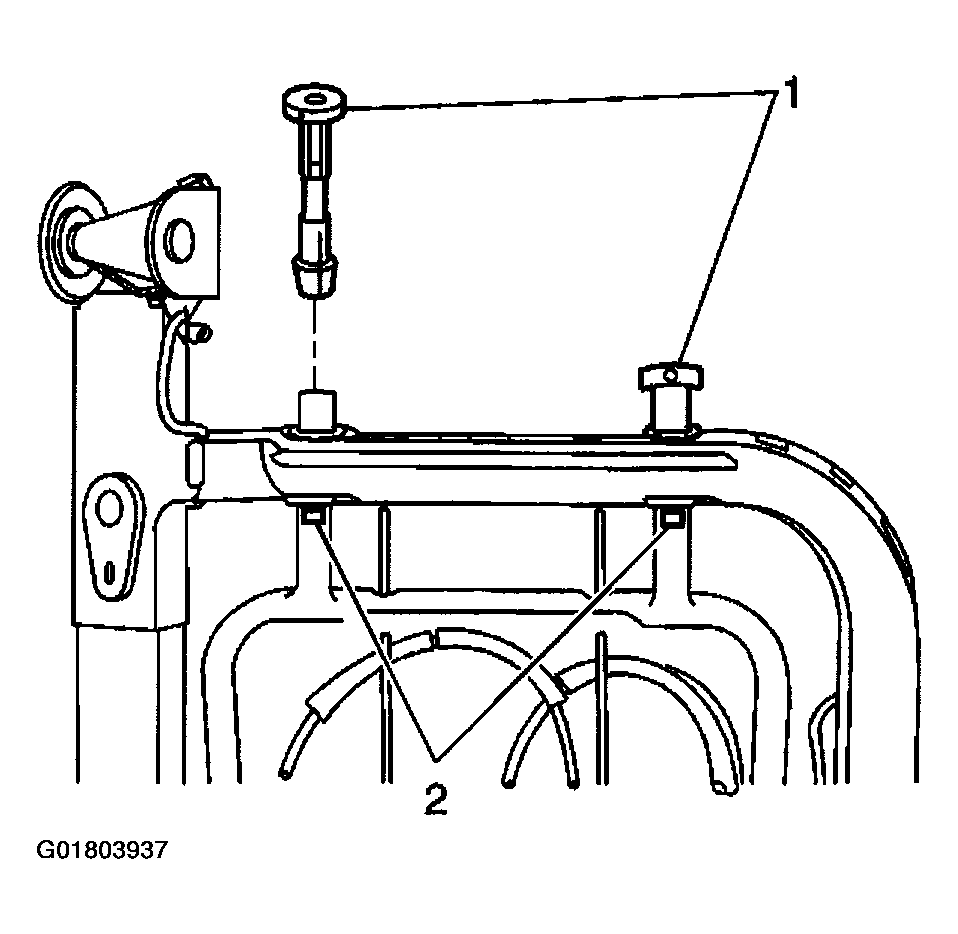

    Fig 1: Removing Head Restraint
    G01803937Courtesy of GENERAL MOTORS CORP.
