Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Align the head restraint shafts to the holes in the head restraint retainers (1).
  2. Slide the head restraint down until fully seated on the top of the seat back.
  3. Move the head restraint to the desired position.

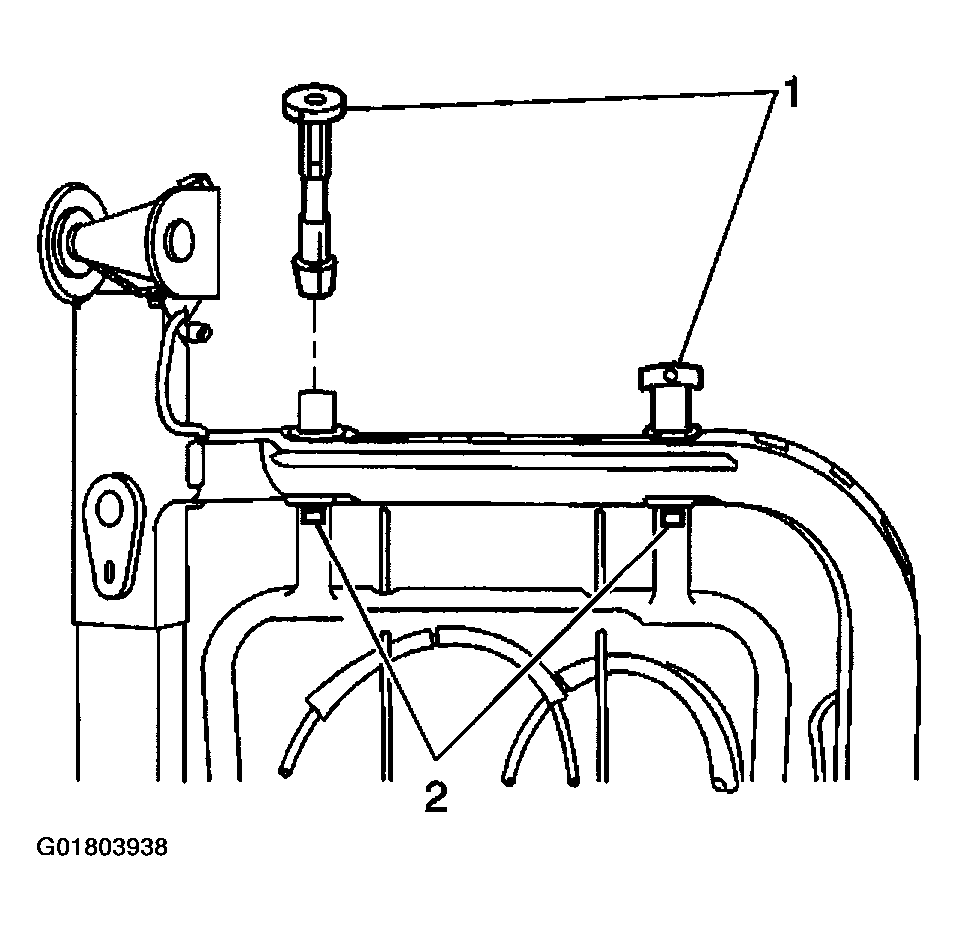

    Fig 1: Installing Head Restraint
    G01803938Courtesy of GENERAL MOTORS CORP.
