Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the cable or cable/sensor assembly by pushing the ends into the fittings until the cable retainers snap into place.
  2. If the cable is equipped with a position sensor, install the sensor retention clip and connect the electrical connector.
  3. Install the seat cushion. Refer to Seat Cushion Replacement - Front  .
  4. Enable the SIR system. Refer to ACTIVATING SYSTEM in SIR.

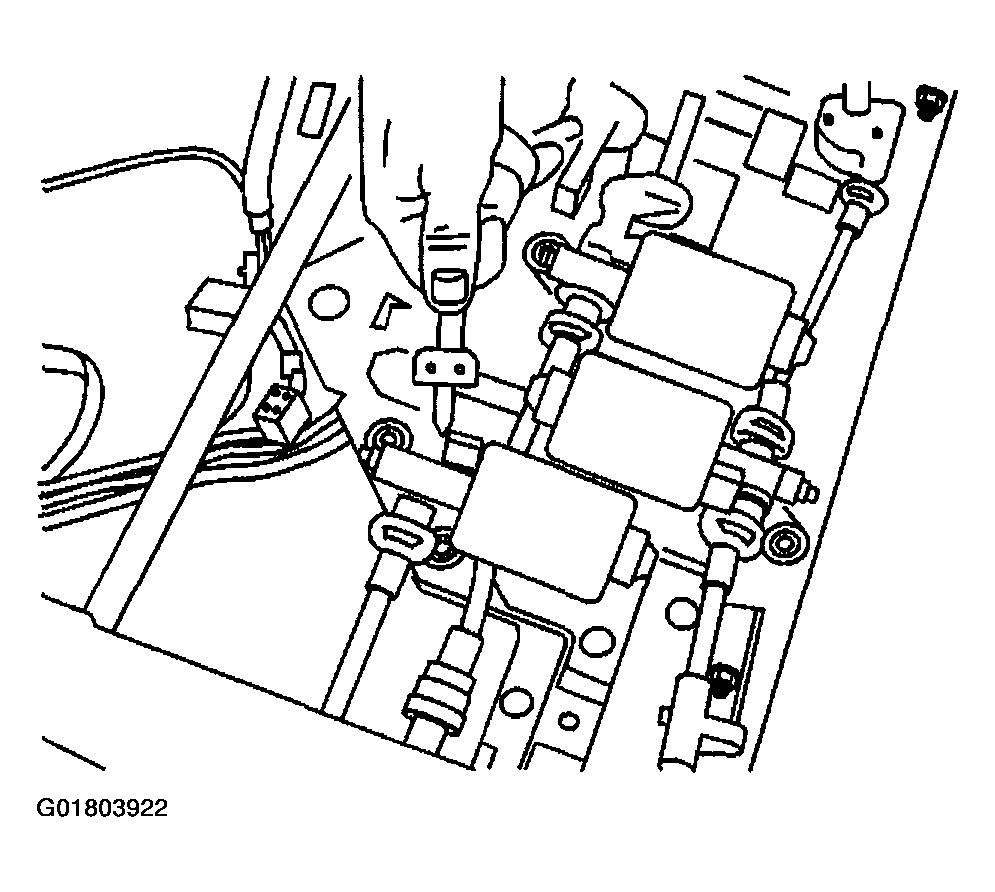

    Fig 1: Installing Cable/Sensor Assembly
    G01803922Courtesy of GENERAL MOTORS CORP.
