Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear seat cushion. Refer to Seat Cushion Replacement - Rear  .
  2. Remove the rear seat back. Refer to Seat Back Replacement - Rear  .
  3. Place the seat back facing downward on a clean protected surface.
  4. Remove the fasteners (2) securing the rear seat armrest assembly (1) to the rear seat back (3).
  5. Remove the rear seat armrest assembly (1) from the rear seat back (3).

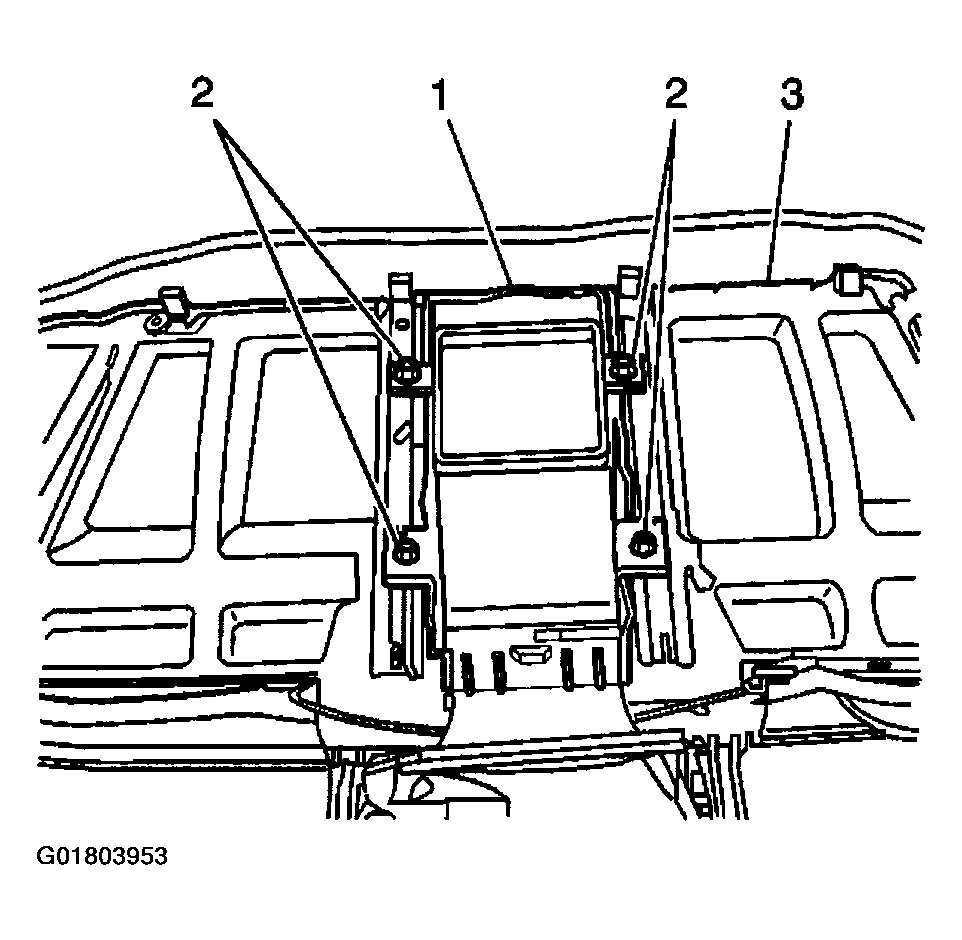

    Fig 1: Removing Armrest
    G01803953Courtesy of GENERAL MOTORS CORP.
