Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the rear seat armrest assembly (1) into the opening in the rear seat back (3).
    CAUTION: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the fasteners (2) in order to secure the rear seat armrest assembly (1) to the rear seat back (3).

    Tighten

    Tighten the fasteners (2) to 11 N.m (97 lb in).

  3. Install the rear seat back. Refer to Seat Back Replacement - Rear  .
  4. Install the rear seat cushion. Refer to Seat Cushion Replacement - Rear  .

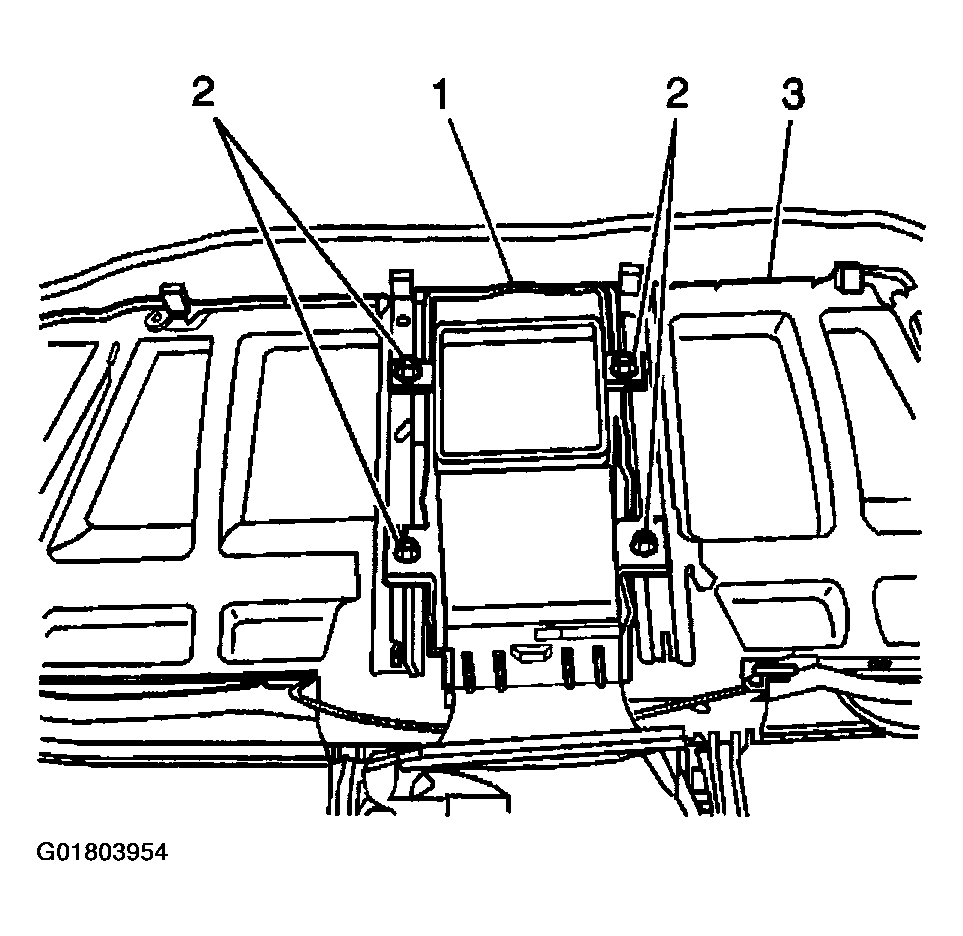

    Fig 1: Installing Armrest
    G01803954Courtesy of GENERAL MOTORS CORP.
