Test Description

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

The numbers below refer to the step numbers on the diagnostic table.

3. This test determines if the suspect motor has an internal short to ground.
9. This test verifies the repair.

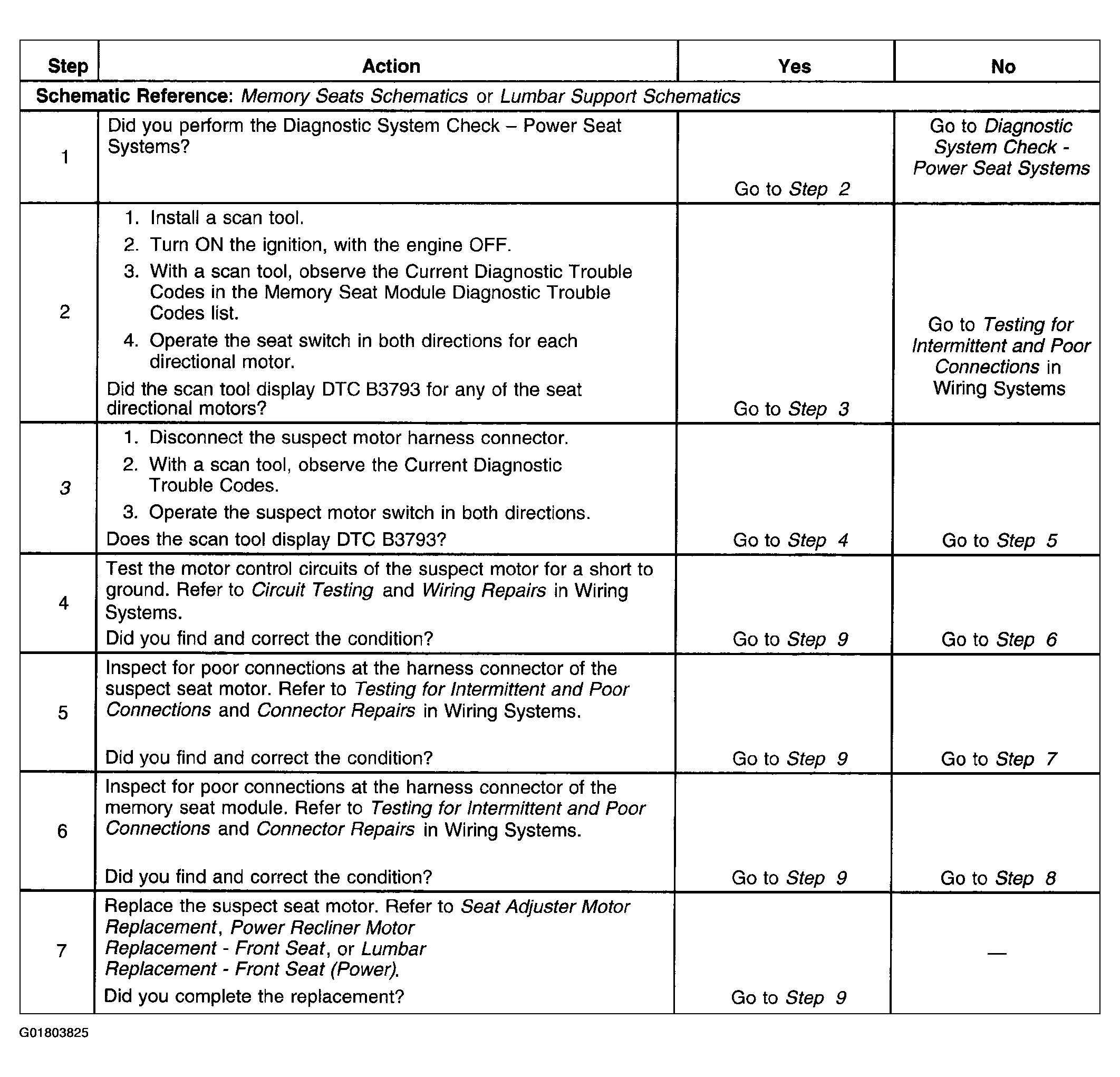

Fig 1: DTC B3793 (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

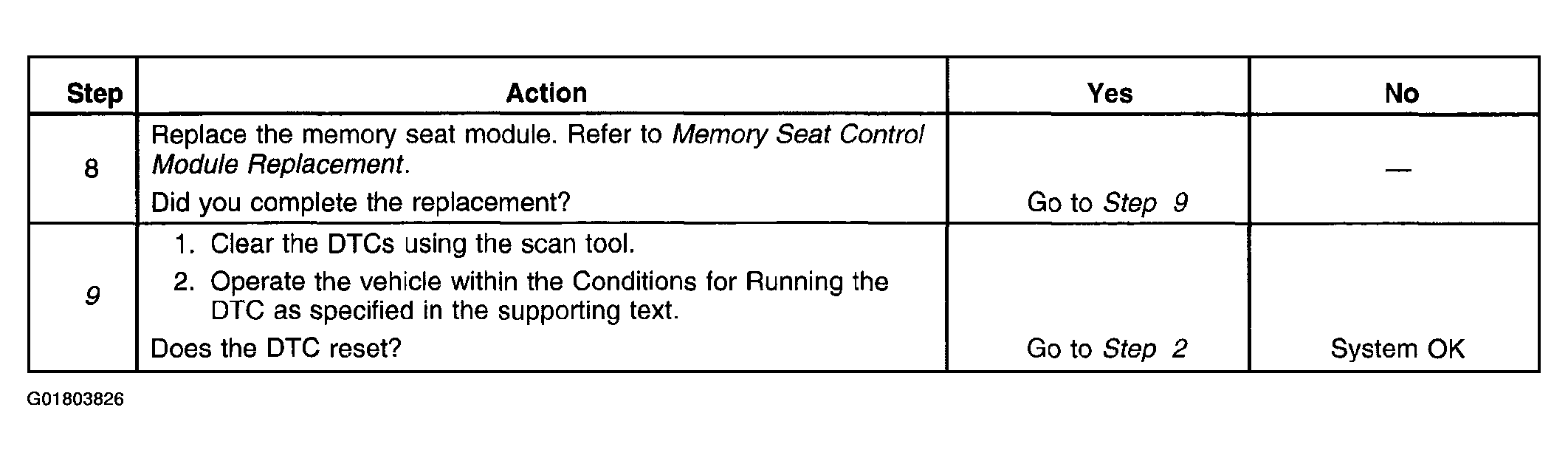

Fig 2: DTC B3793 (2 Of 2)

Courtesy of GENERAL MOTORS CORP.
