Test Description

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

The number below refers to the step number on the diagnostic table.

  1. 9. This step verifies the repair.

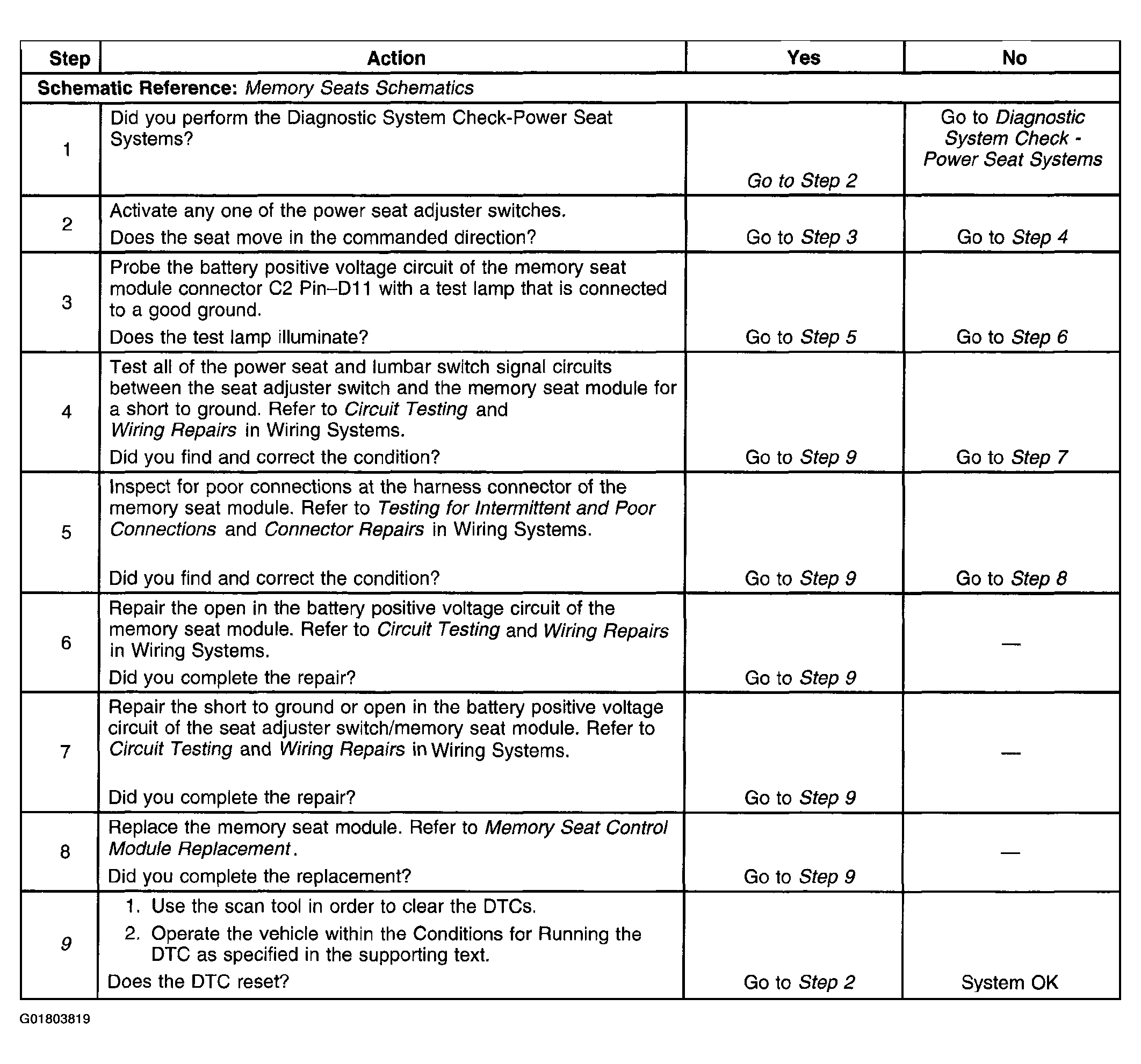

Fig 1: DTC B1420
G01803819Courtesy of GENERAL MOTORS CORP.
