Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the electrical connector to the trip reset switch.
  2. Install the trip reset switch into the IP cluster trim plate bezel by snapping it into place.
  3. Install the IP cluster trim plate. Refer to Trim Plate Bezel Replacement - IP Cluster  .

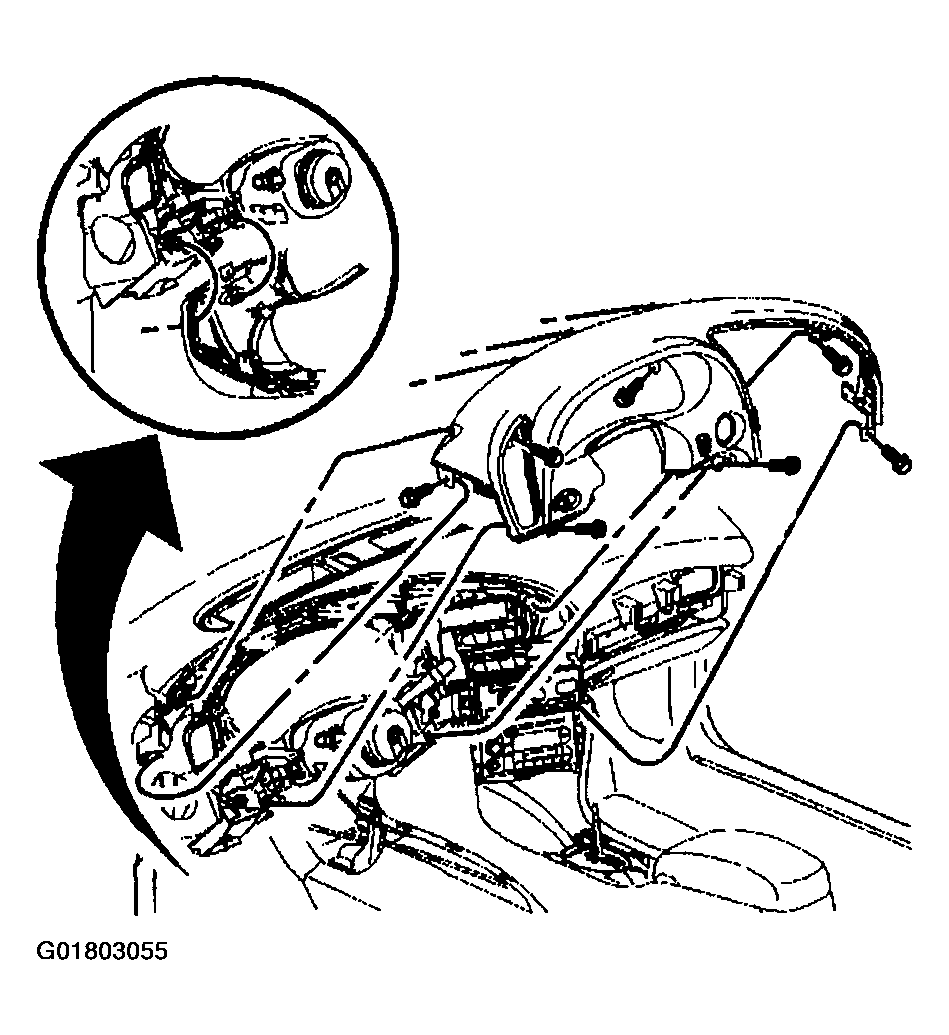

    Fig 1: Installing Trip Reset Switch
    G01803055Courtesy of GENERAL MOTORS CORP.
