Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the electrical connector to the sunload and twilight sentinel sensor (2).
  2. Install the sunload and twilight sentinel sensor (2) to the defroster grill (1).
  3. Turn the sunload and twilight sentinel sensor 1/4 turn clockwise in order to secure the sensor to the defroster grill.
  4. Install the defroster grille (1). Refer to Defroster Grille Replacement  .

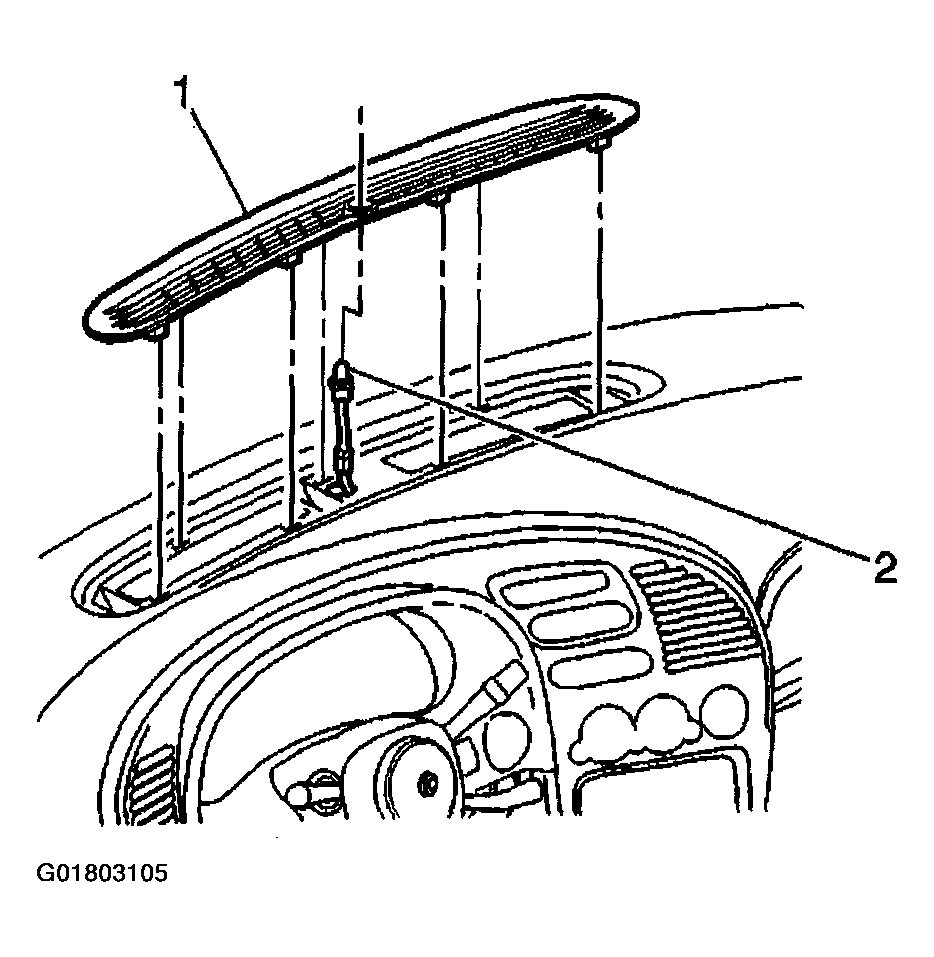

    Fig 1: Connecting Electrical Connector From Sunload & Twilight Sentinel Sensor
    G01803105Courtesy of GENERAL MOTORS CORP.
