Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the right closeout insulator panel. Refer to Closeout/Insulator Panel Replacement - Right  .
  2. Remove the fasteners (1) that secure the IP storage compartment door to the IP retainer.
  3. Remove the IP storage compartment and door assembly by pulling rearward.

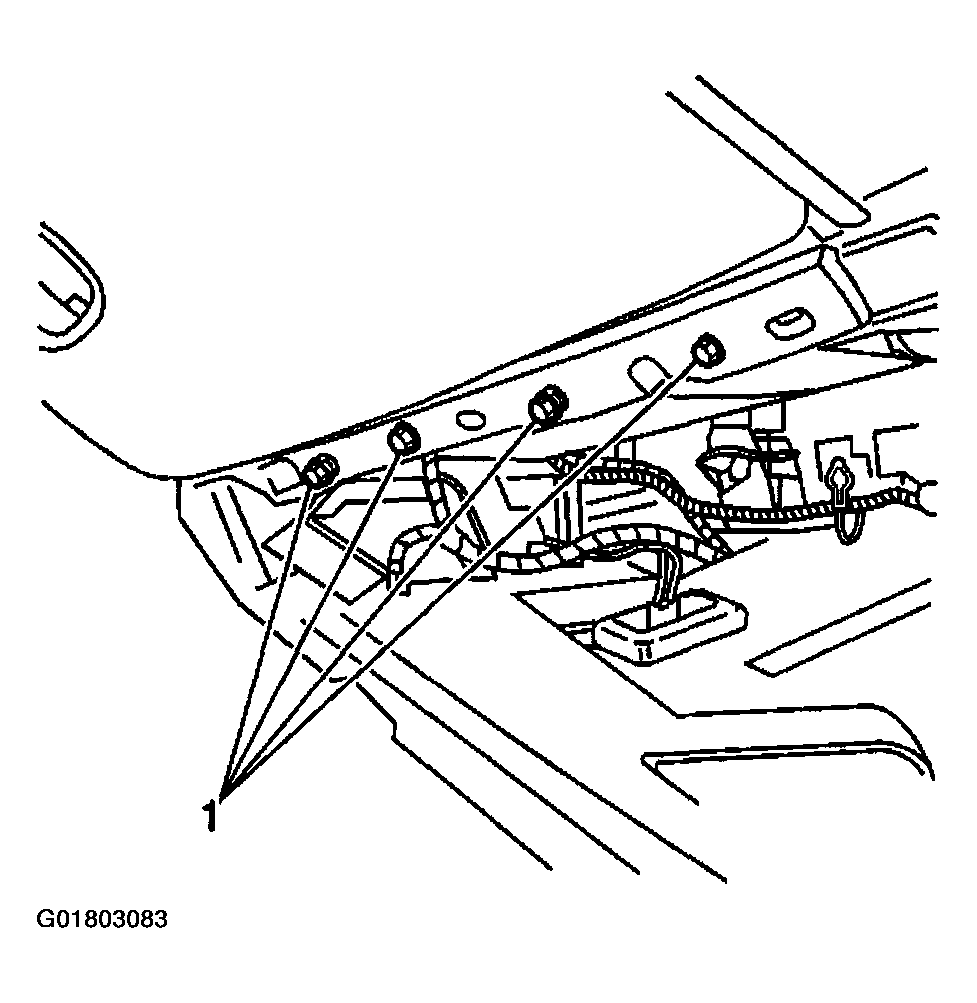

    Fig 1: Removing IP Storage Compartment Door Fasteners
    G01803083Courtesy of GENERAL MOTORS CORP.
  4. Remove the fasteners that secure the IP storage compartment to the IP storage compartment door.

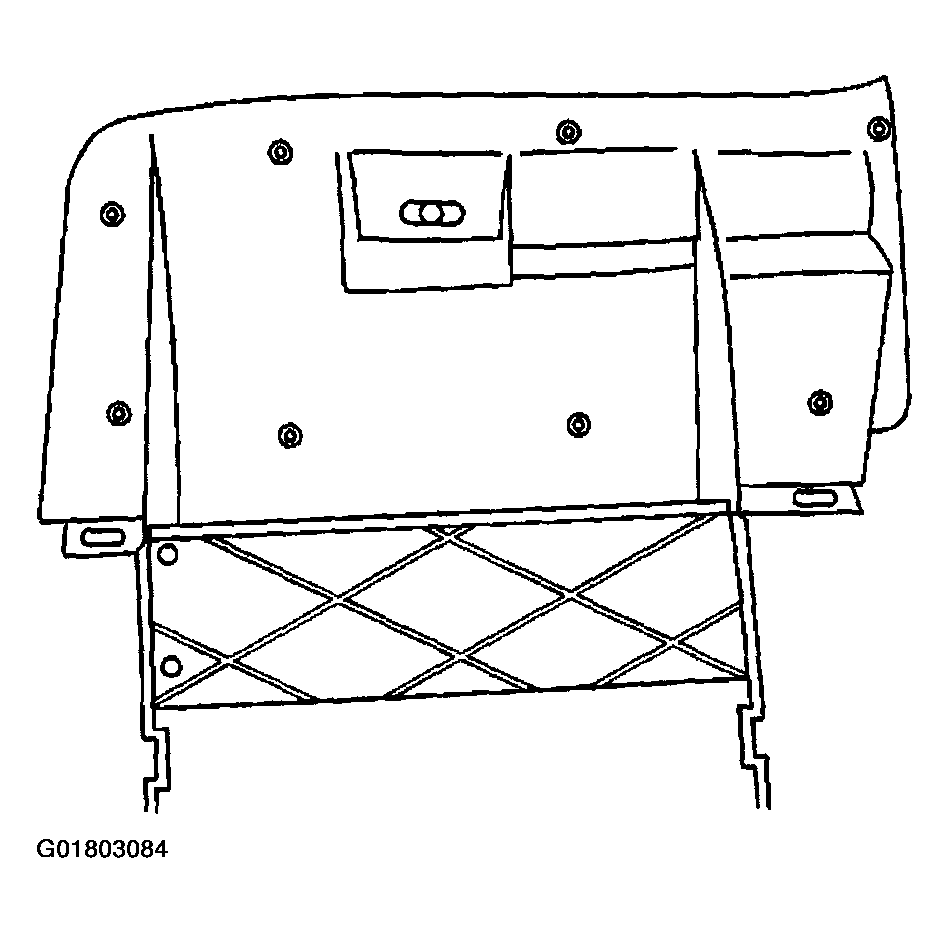

    Fig 2: Identifying IP Storage Compartment
    G01803084Courtesy of GENERAL MOTORS CORP.
