Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the IP storage compartment to the IP storage compartment door.
    CAUTION: Refer to FASTENER NOTICE .
  2. Install the fasteners in order to secure the IP storage compartment to the door.

    Tighten

    Tighten the fasteners to 1.4 N.m (12 in lbs).

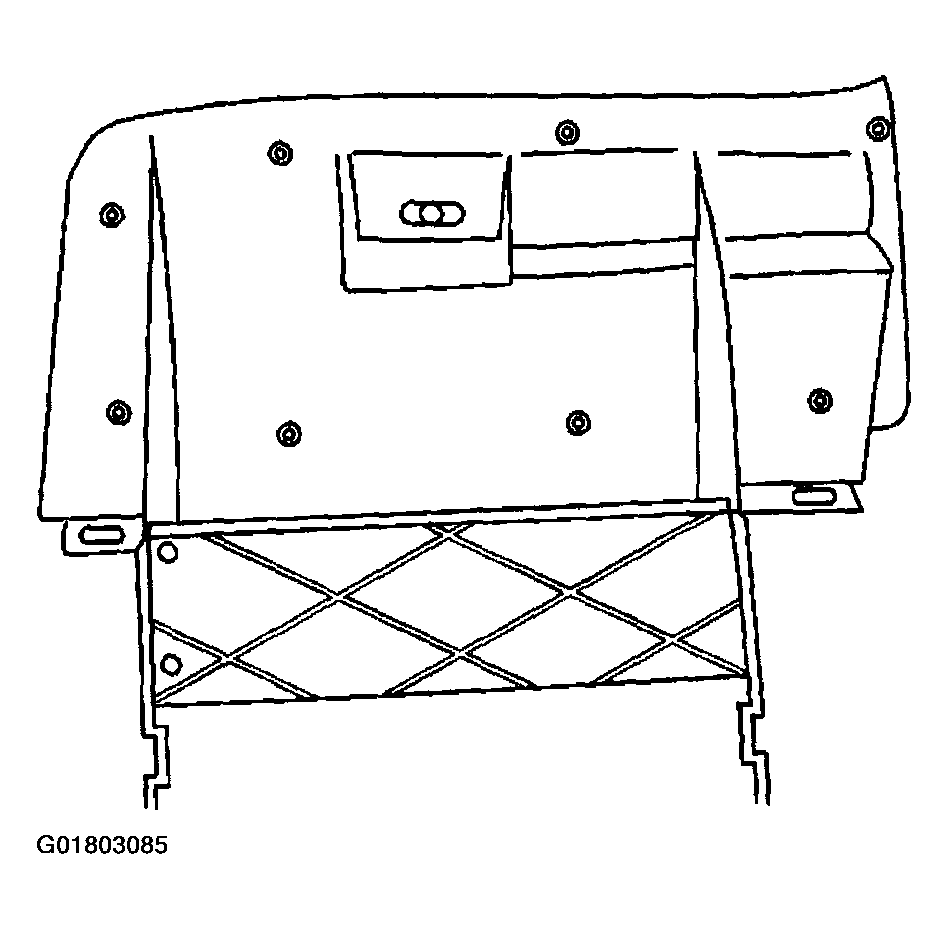

    Fig 1: Identifying IP Storage Compartment
    G01803085Courtesy of GENERAL MOTORS CORP.
  3. Position the IP storage compartment and door assembly to the IP retainer.
  4. Install the fasteners (1) in order to secure the IP storage compartment door to the IP retainer.

    Tighten

    Tighten the fasteners to 2 N.m (18 in lbs).

  5. Install the right closeout insulator panel. Refer to Closeout/Insulator Panel Replacement - Right  .

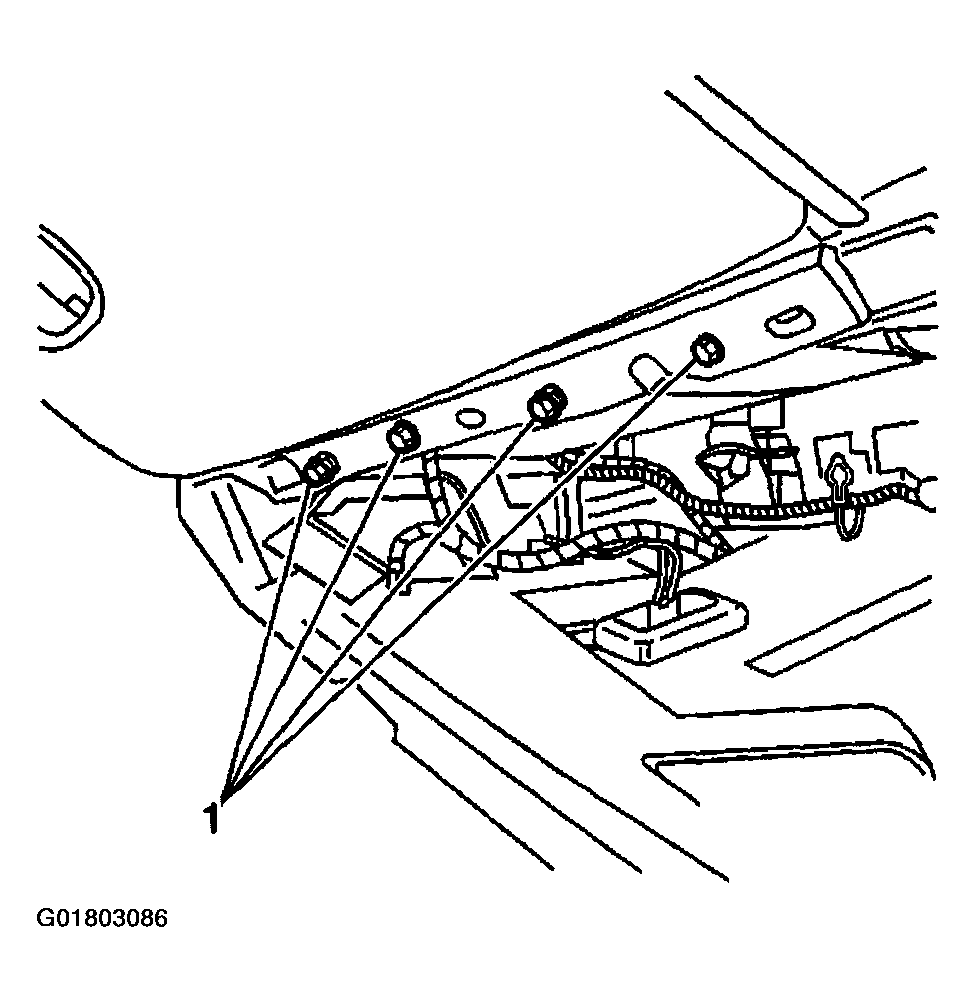

    Fig 2: Installing IP Storage Compartment Door Fasteners
    G01803086Courtesy of GENERAL MOTORS CORP.
