Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the right IP accessory trim plate. Refer to Trim Plate Replacement - IP Accessory Right  .
  2. Remove the valet switch by prying down at the top to release the clips.

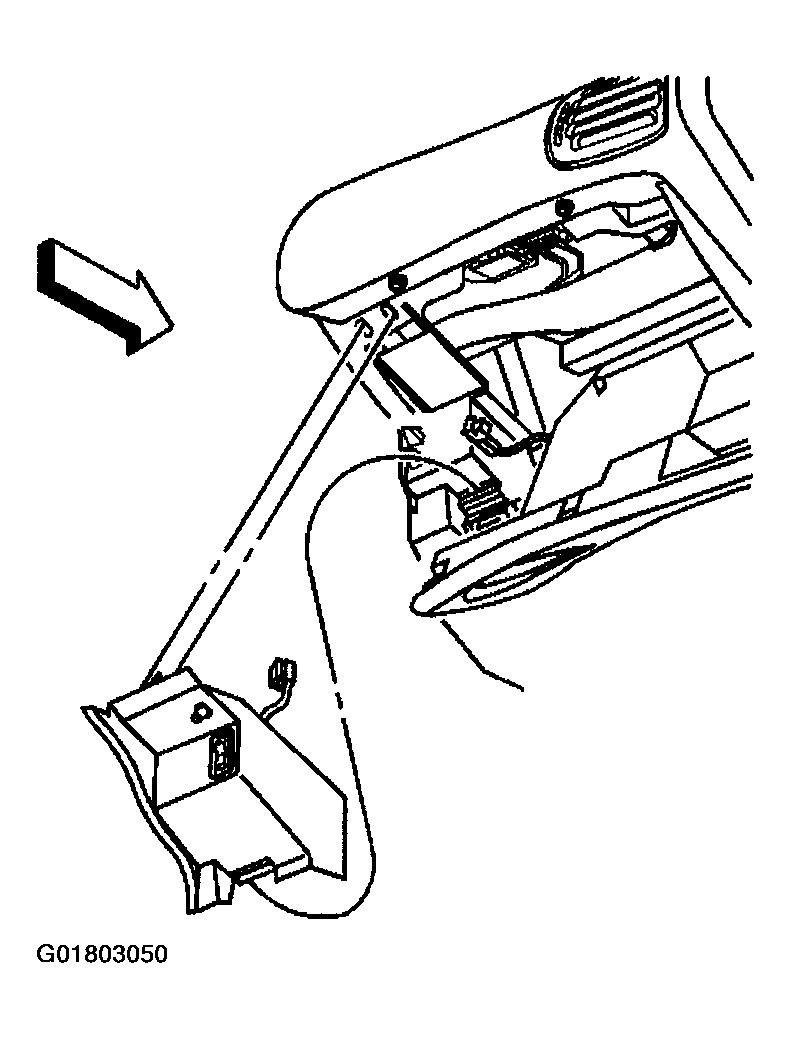

    Fig 1: Removing Valet Switch
    G01803050Courtesy of GENERAL MOTORS CORP.
  3. Disconnect the electrical connector.

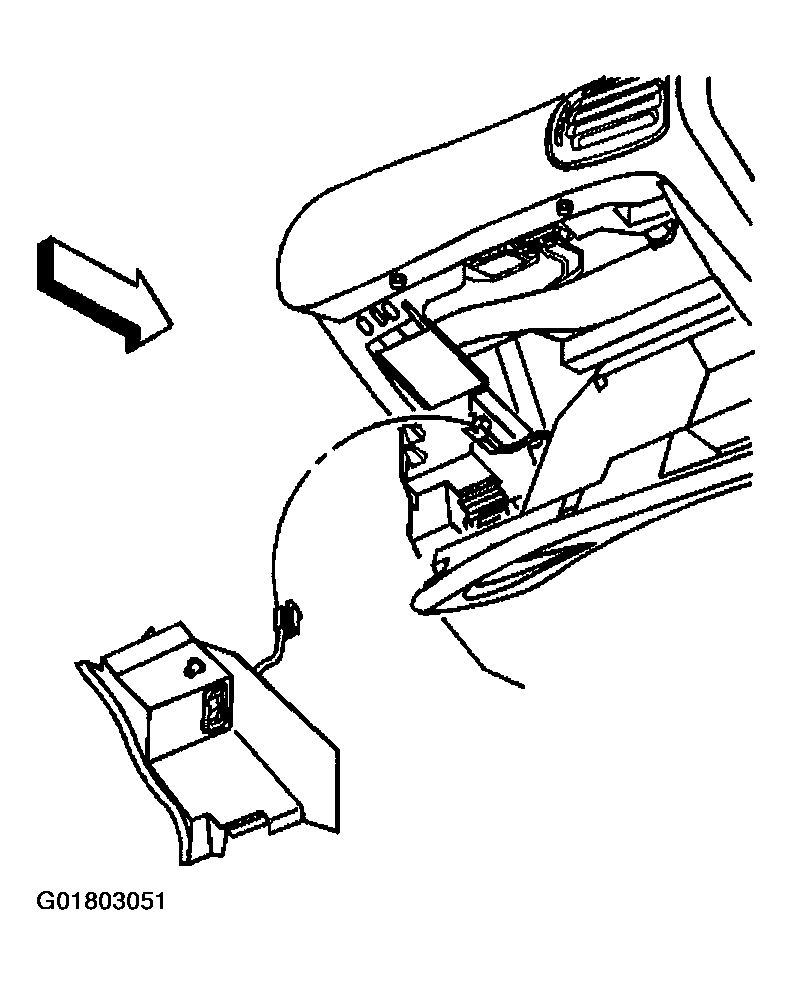

    Fig 2: Disconnecting Valet Switch Electrical Connector
    G01803051Courtesy of GENERAL MOTORS CORP.
