Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the electrical connector to the valet switch.

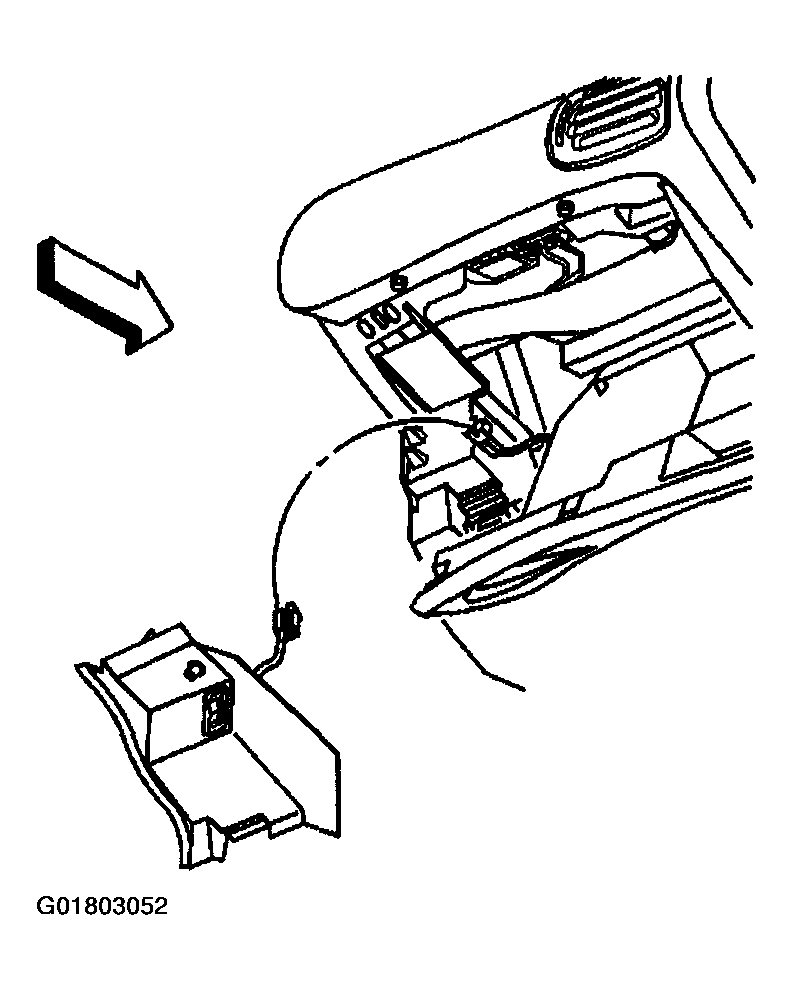

    Fig 1: Connecting Valet Switch Electrical Connector
    G01803052Courtesy of GENERAL MOTORS CORP.
  2. Install the valet switch by pressing into the IP.

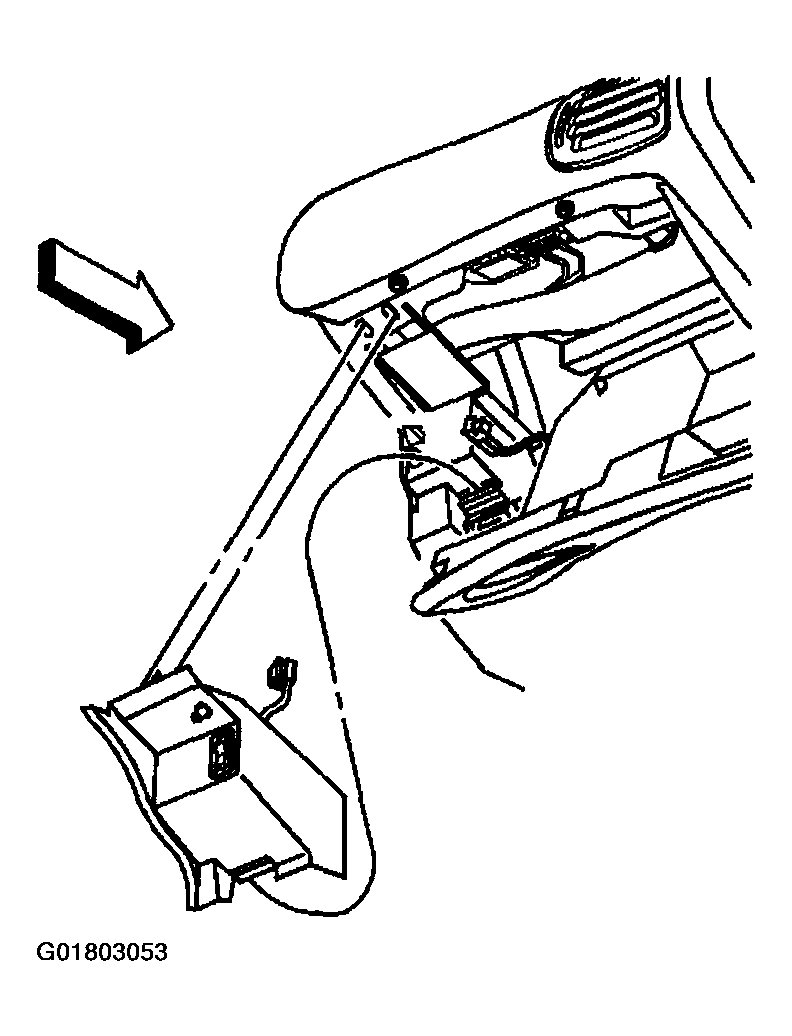

    3. Fig 2: Installing Valet Switch
    G01803053Courtesy of GENERAL MOTORS CORP.
  3. Install the right IP accessory trim plate. Refer to Trim Plate Replacement - IP Accessory Right  .
  4. Close the instrument panel storage compartment.
