Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the IP storage compartment. Refer to Storage Compartment Replacement - IP  .
  2. Disconnect the lever rod (2) from the handle and latch.
  3. Remove the fasteners that secure the IP compartment latch (1) to the door.
  4. Remove the latch assembly from the door.

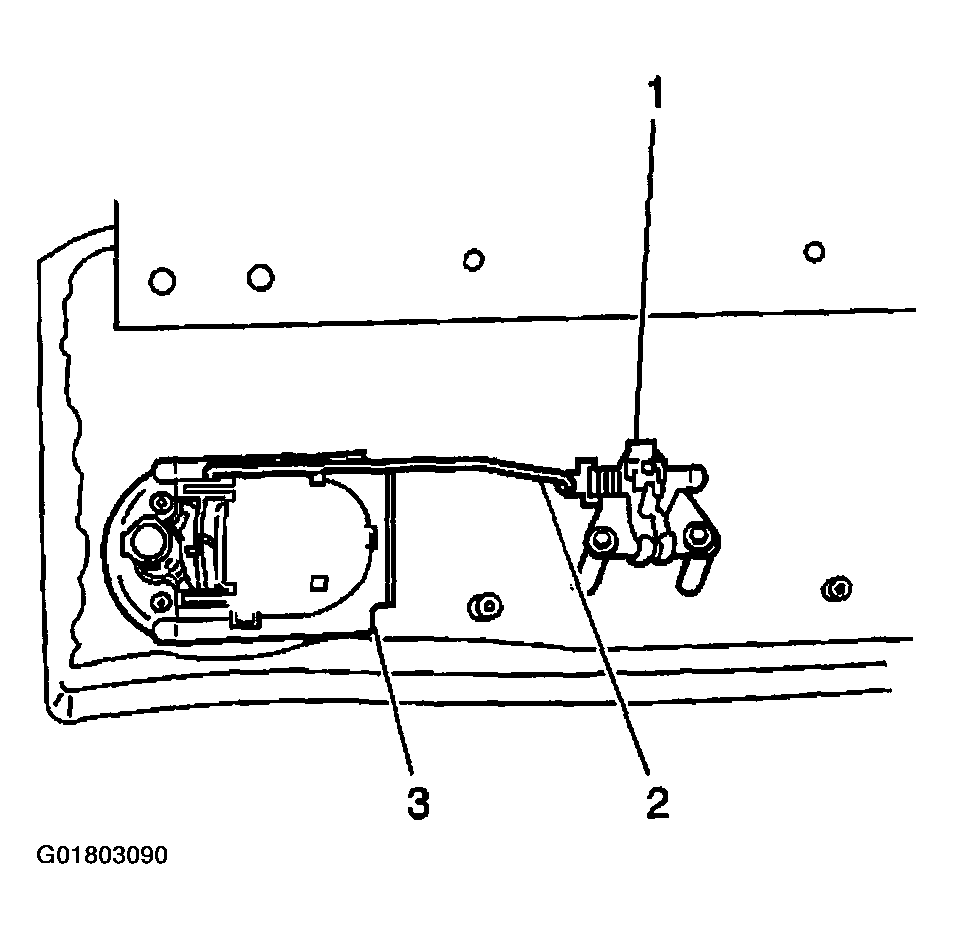

    Fig 1: Removing IP Compartment Latch
    G01803090Courtesy of GENERAL MOTORS CORP.
