Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Refer to FASTENER NOTICE .
  1. Install the IP compartment latch (1) and fastener clip.

    Tighten

    Tighten the fasteners to 1.4 N.m (12 in lbs).

  2. Connect the lever rod (2) from the handle and latch.
  3. Install the IP storage compartment. Refer to Storage Compartment Replacement - IP  .

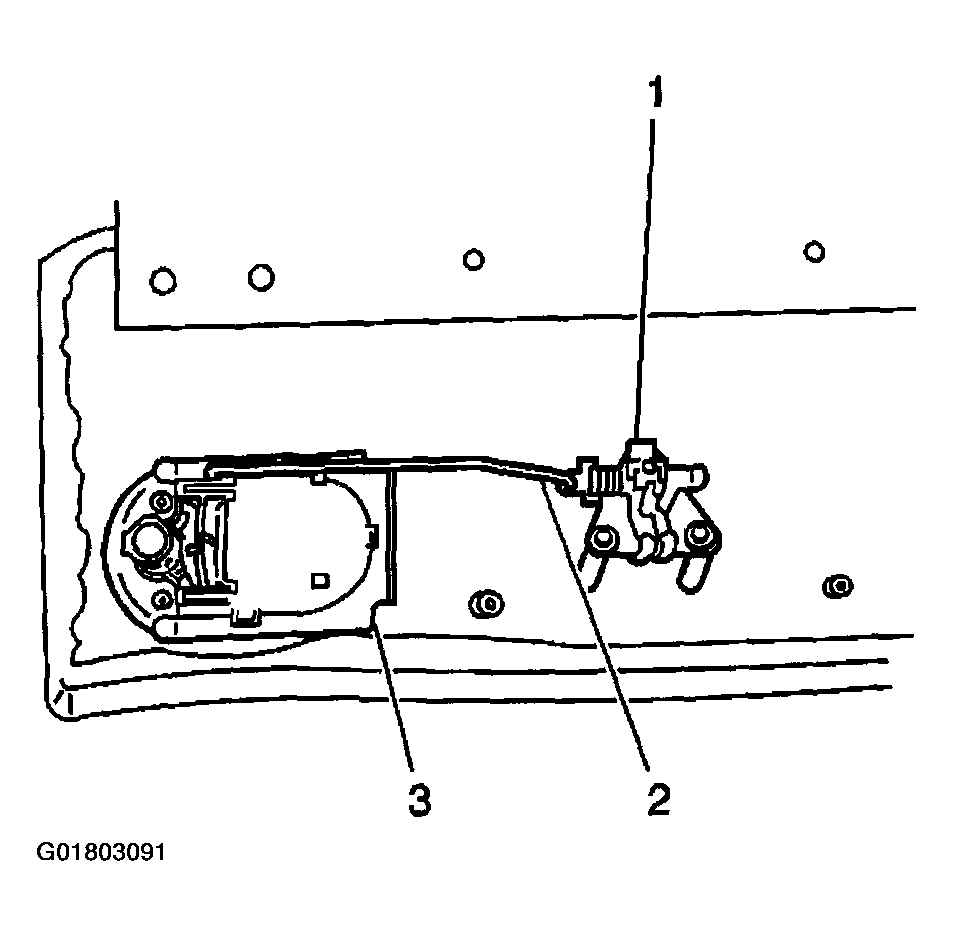

    Fig 1: Installing IP Compartment Latch
    G01803091Courtesy of GENERAL MOTORS CORP.
