Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Align the IP cluster pins to the corresponding openings in the retainer.
  2. Press the cluster in to secure, there will be an audible snap when the cluster is fully seated.
  3. Install the IP cluster trim panel. Refer to Trim Plate Bezel Replacement - IP Cluster  .

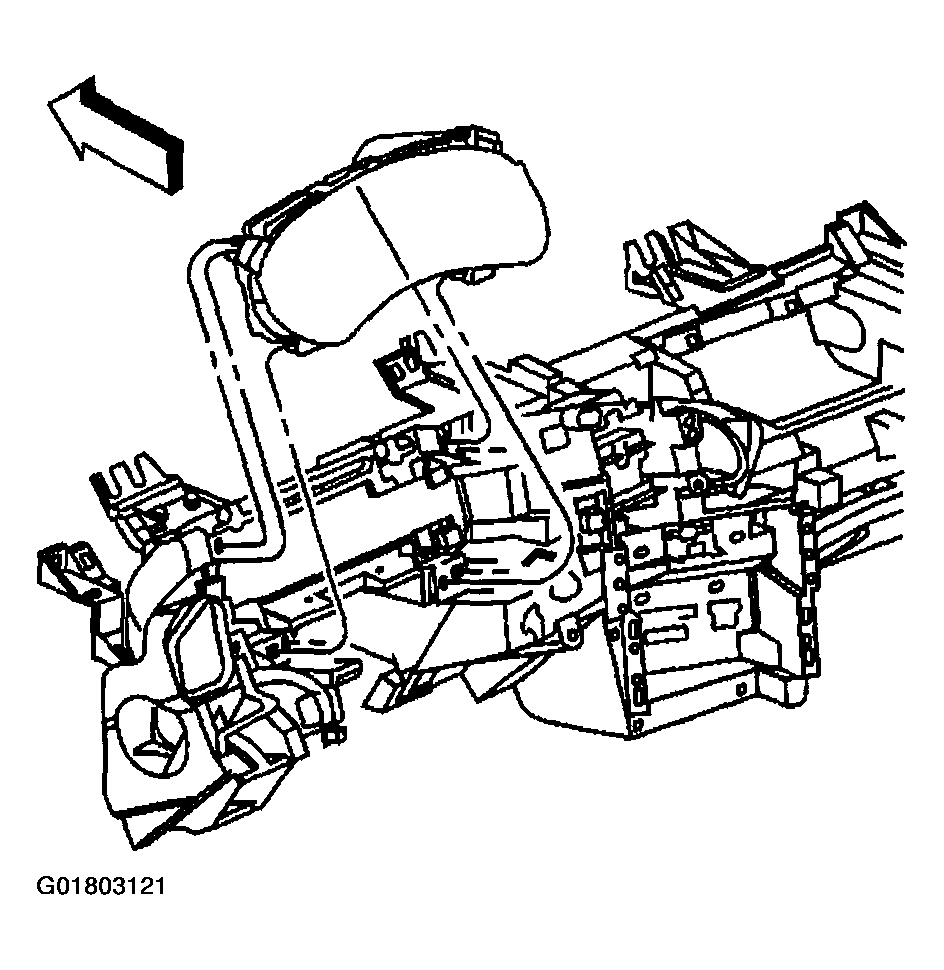

    Fig 1: Installing IP Cluster
    G01803121Courtesy of GENERAL MOTORS CORP.
