Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Gently pry outward on the rear edge of the IP outer trim cover until the retainers securing the outer trim cover to the IP retainer disengage from the retainer.
  2. Slide the IP outer trim cover rearward until the tabs on the front edge of the outer trim cover disengage from the IP retainer.

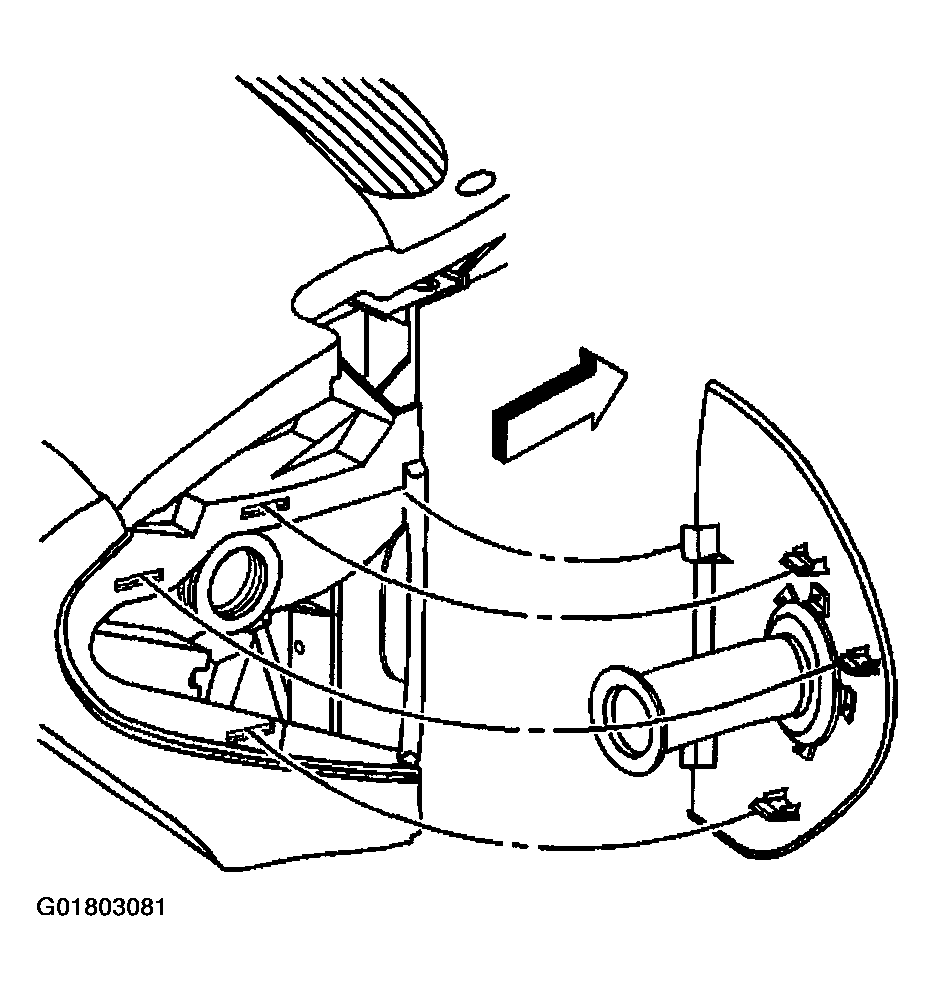

    Fig 1: Removing IP Outer Trim Cover
    G01803081Courtesy of GENERAL MOTORS CORP.
