Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the ignition lock cylinder. Refer to Ignition Switch Lock Cylinder Replacement  .
  2. Remove the fasteners securing the ignition switch to the IP retainer.
  3. Push and release the retaining tab at the rear of the ignition switch.

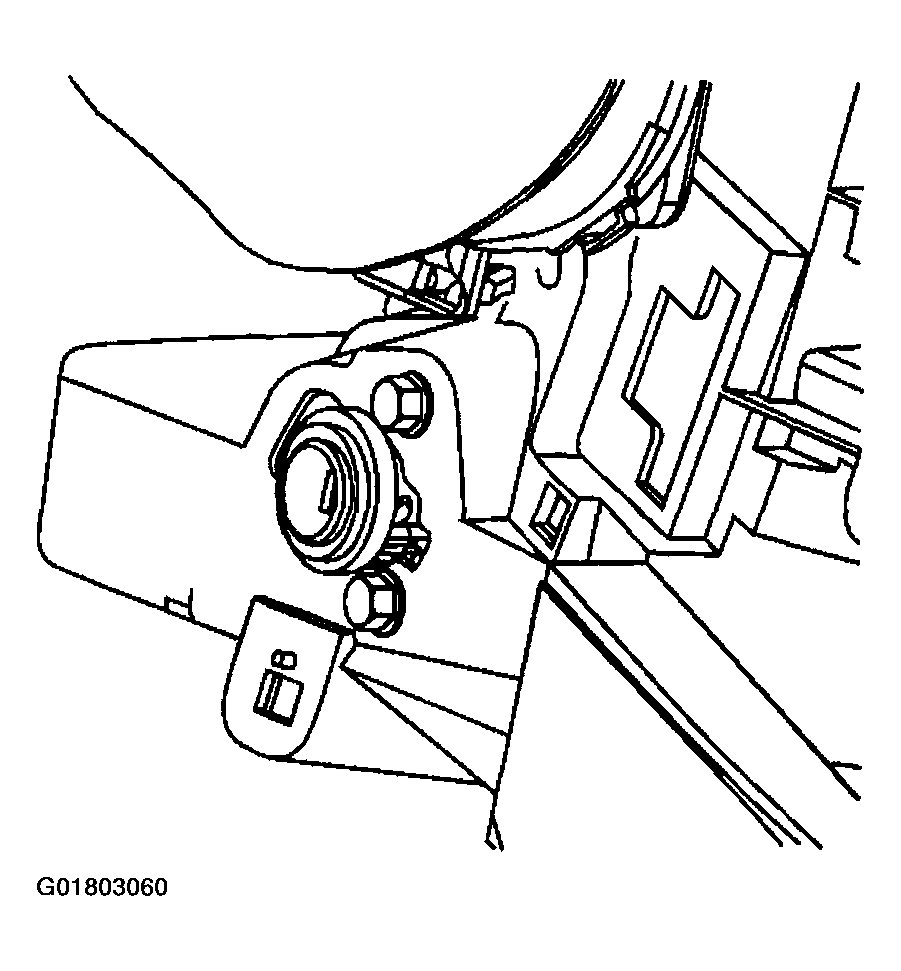

    Fig 1: Locating Ignition Switch
    G01803060Courtesy of GENERAL MOTORS CORP.
  4. Remove the ignition switch through the radio opening in the retainer.
  5. Disconnect the shift interlock cable from the ignition switch.
  6. Disconnect the electrical connectors from ignition switch.

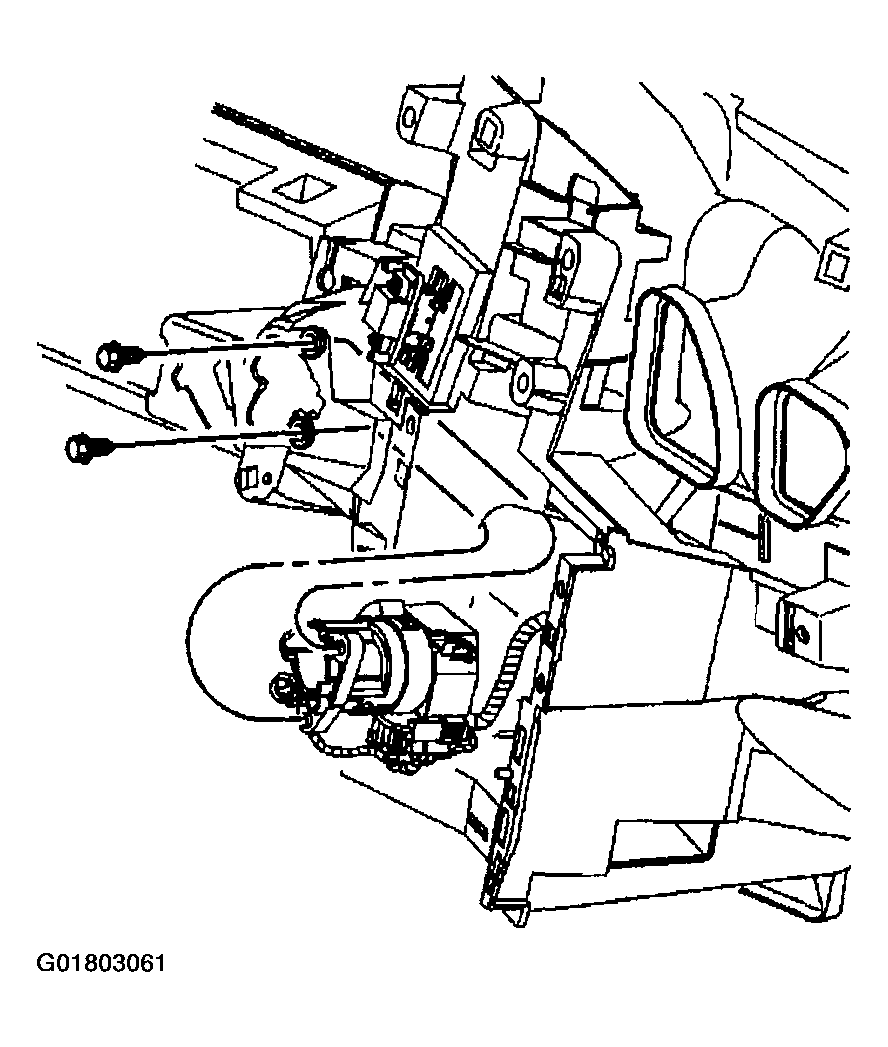

    Fig 2: Removing Ignition Switch
    G01803061Courtesy of GENERAL MOTORS CORP.
